G100 S

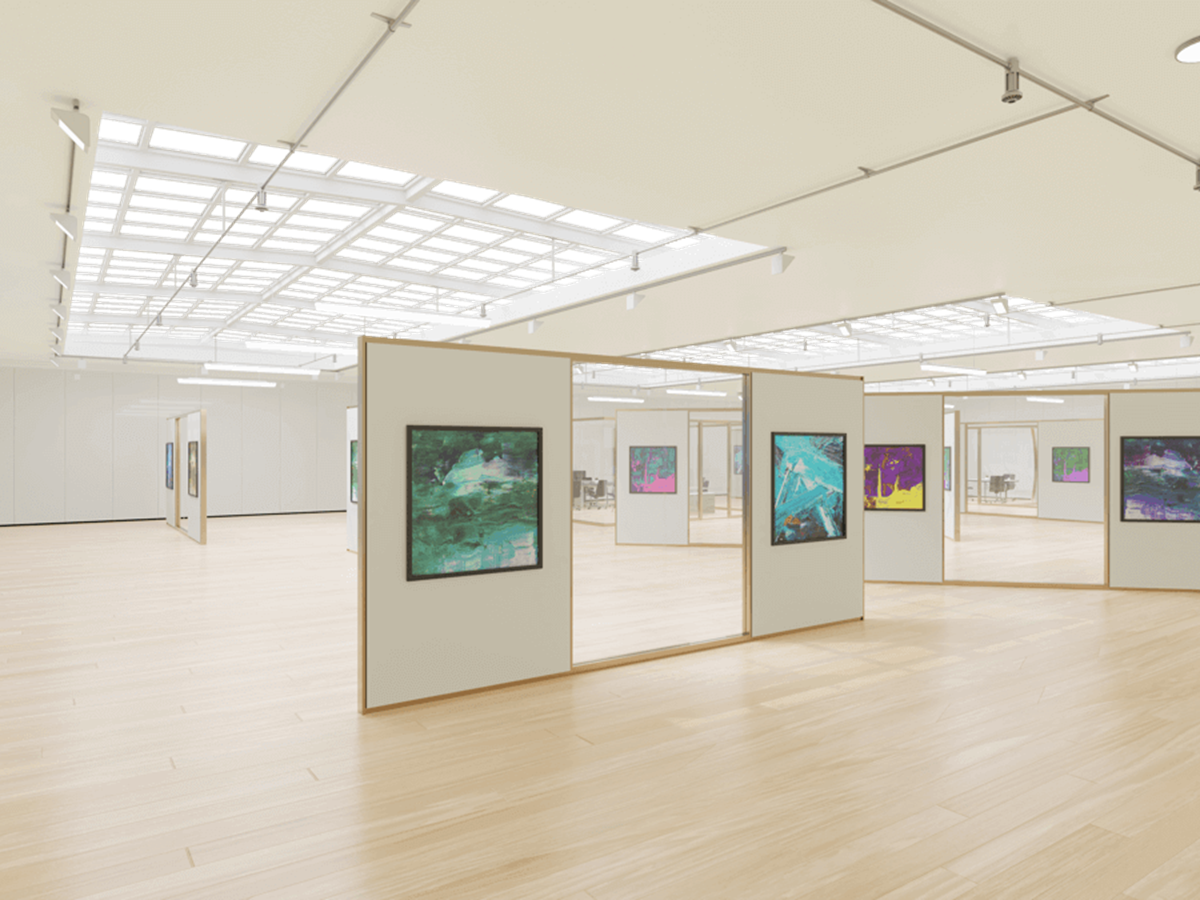

ALNOPLAN MODULAR PARTITION WALL

System Features

SYSTEM THICKNESS
100mm

SYSTEM WEIGHT
45kg/m2

GROUT DETAIL
3mm

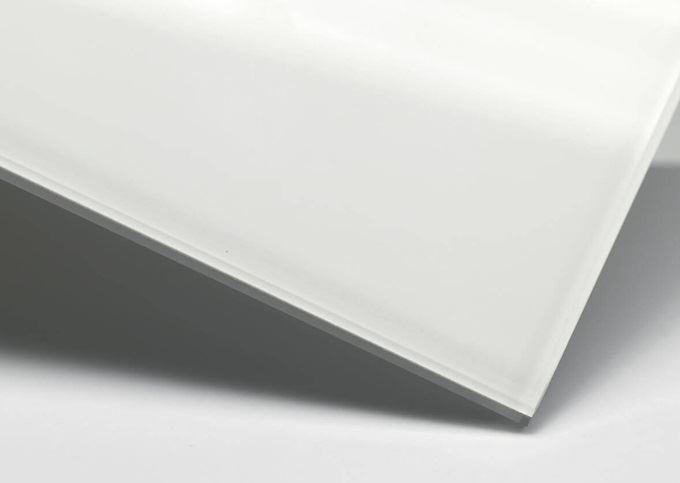

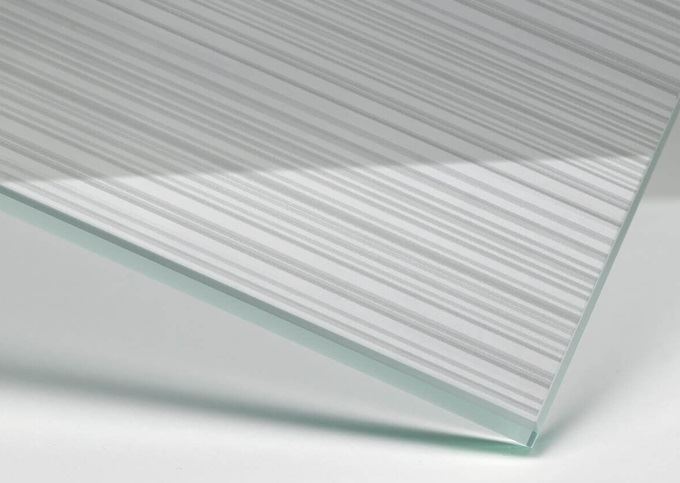

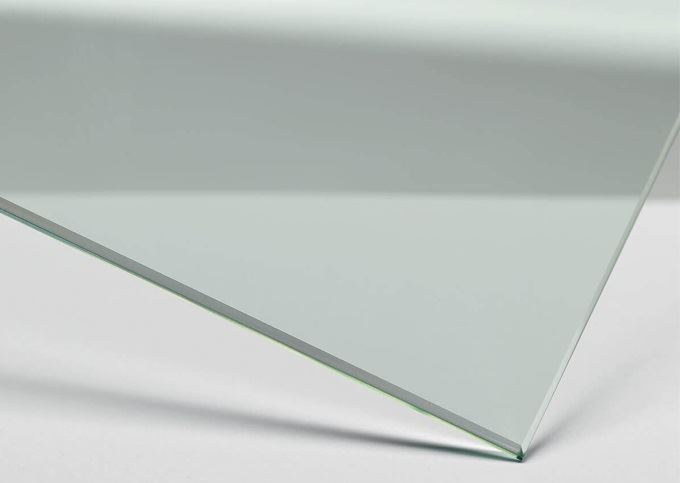

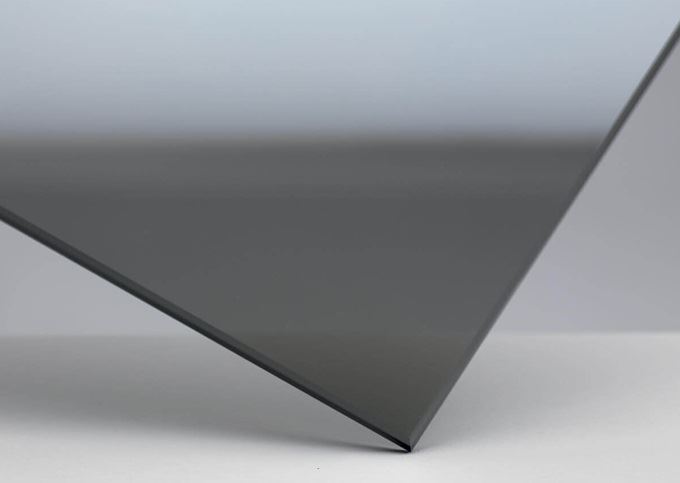

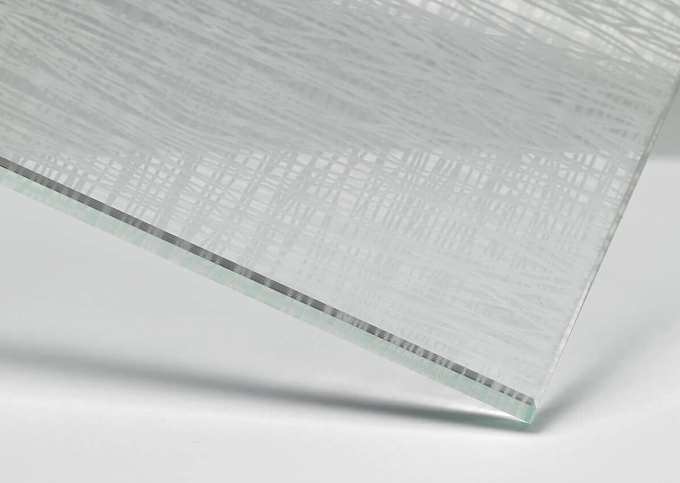

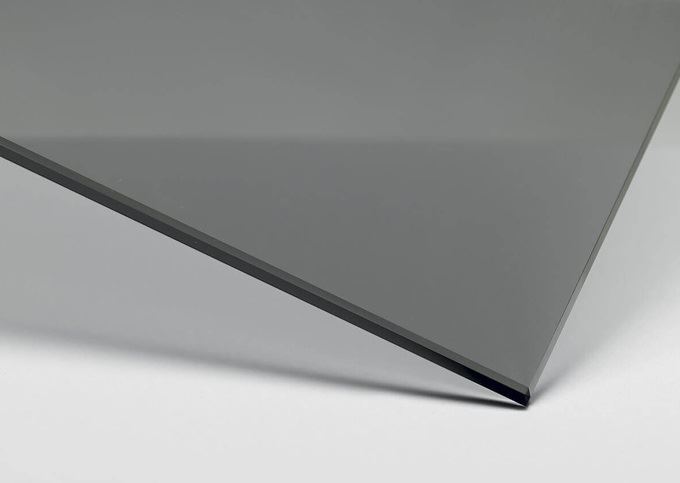

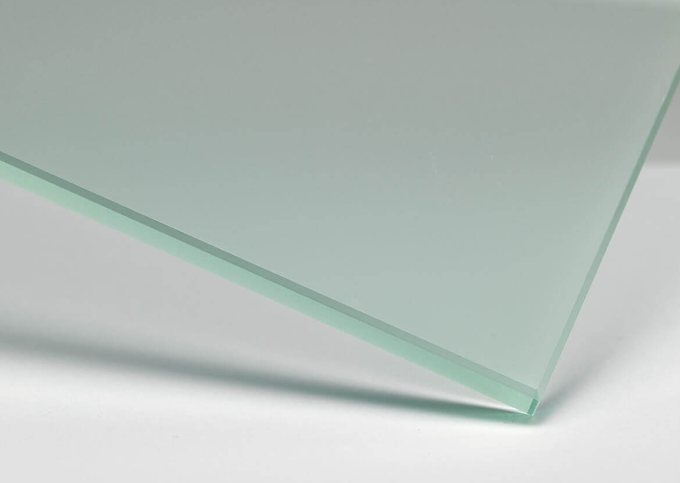

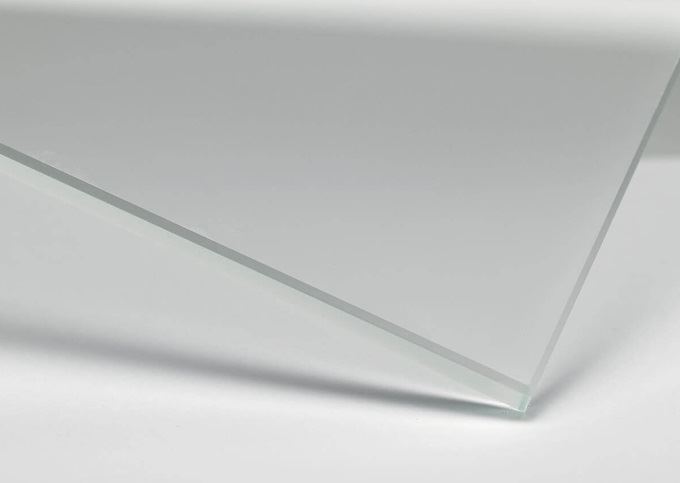

GLASS SURFACE THICKNESS
10mm'den 12,5 mm

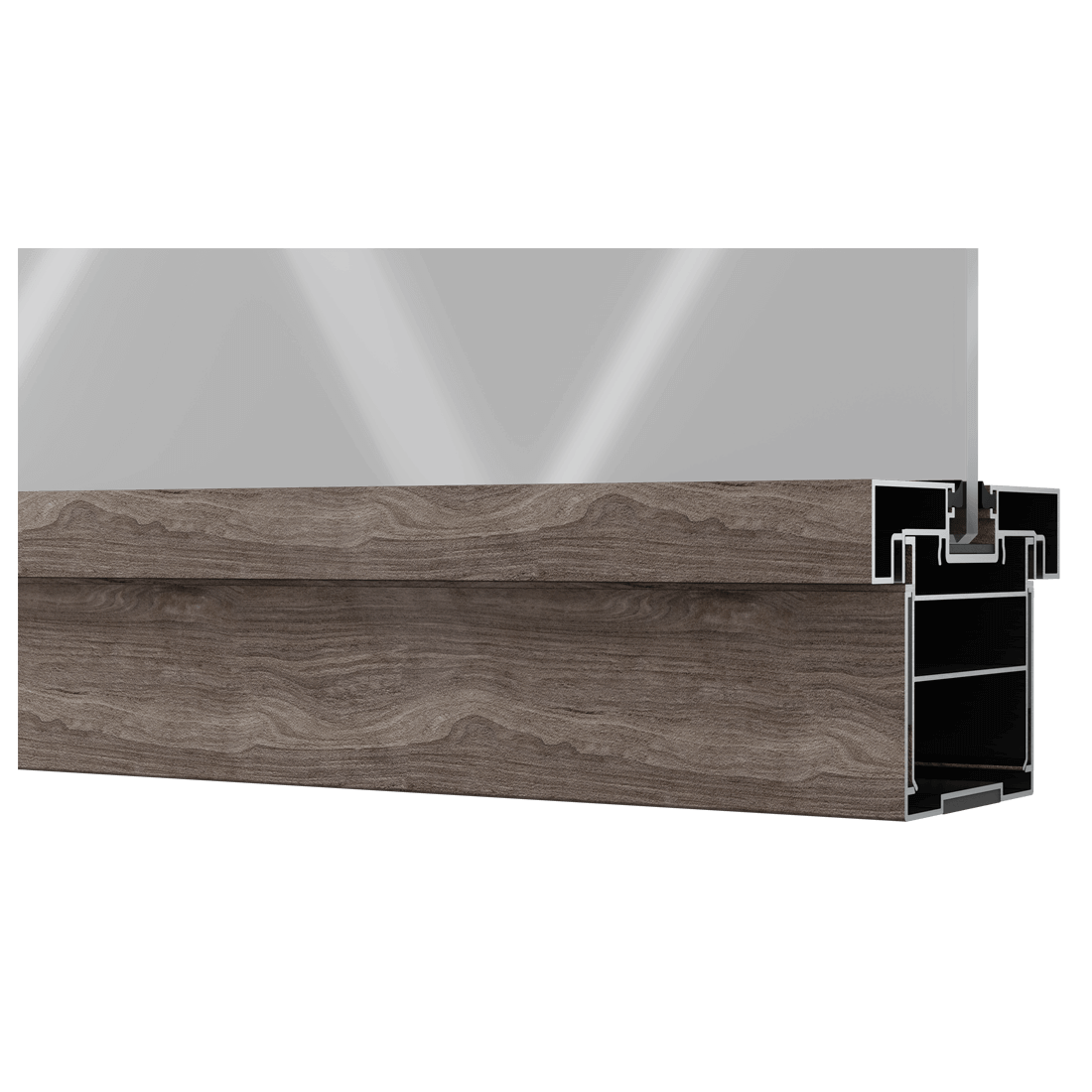

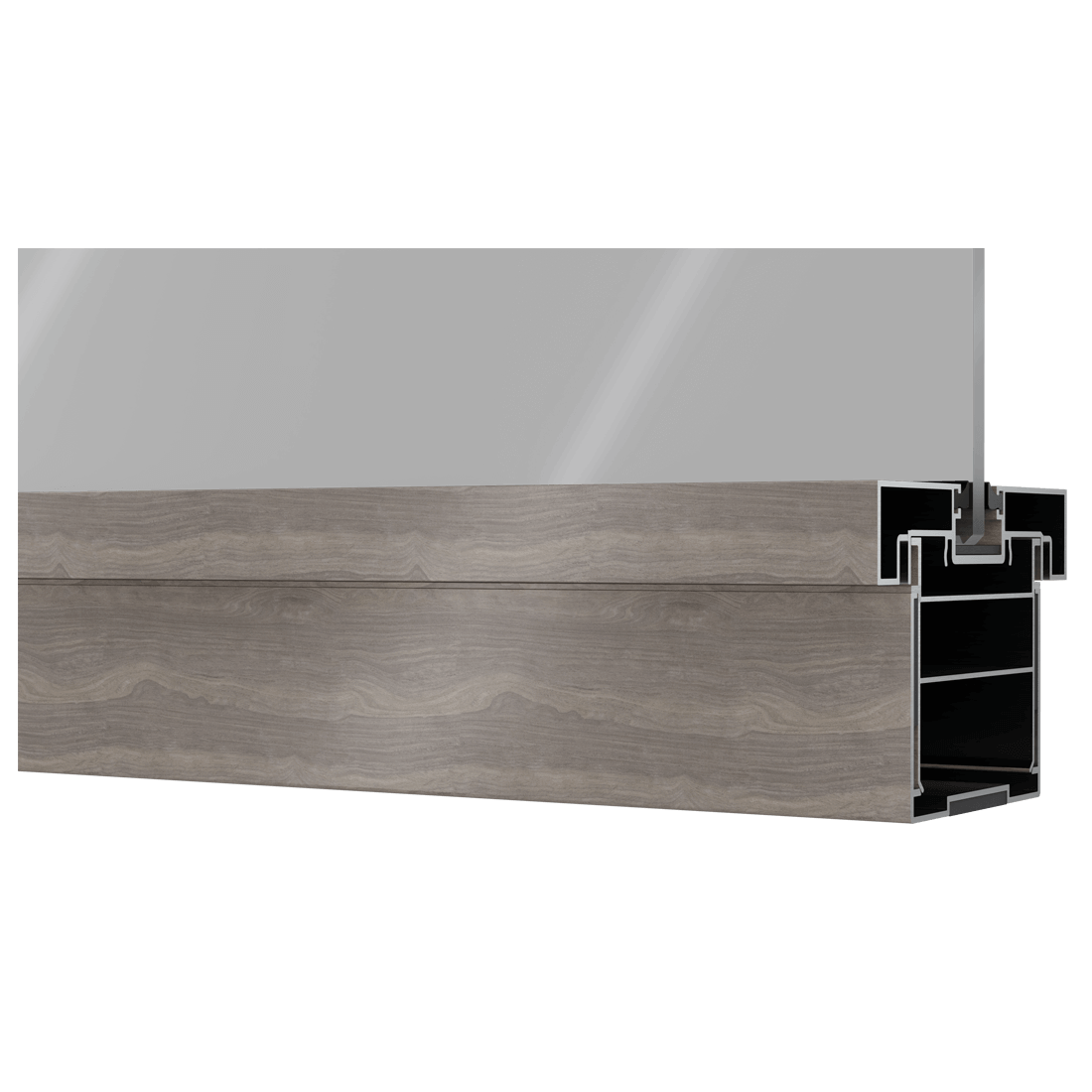

FULL PANELOPTION
HPL-MDF-CDF-NATURAL WOOD-FABRIC-LACQUERED-PAINTED GLASS

INSULATION
38 dB

BLINDS
MANUAL/AUTOMATIC

UNIT DIMENSIONS
700-1200 MMWIDTH, 2200-3500 MM HEIGHT

DOOR ACCESSORIES
HAFELE,DORMA, ASSA ABLOY, COLCOM,HOPPE, AGB

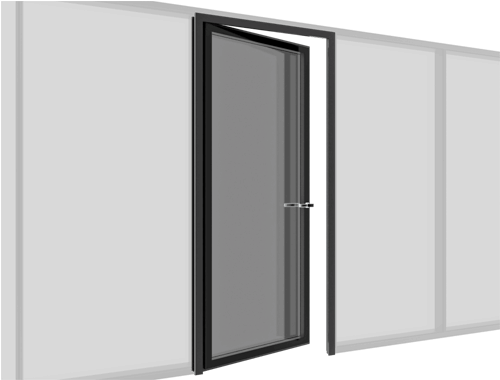

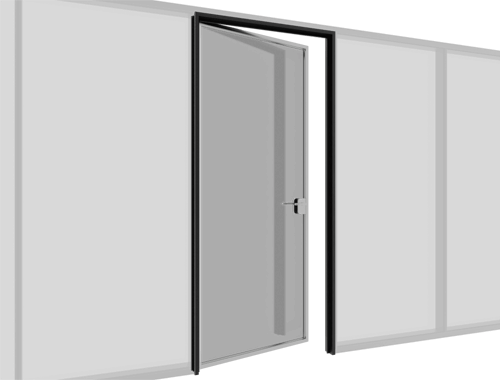

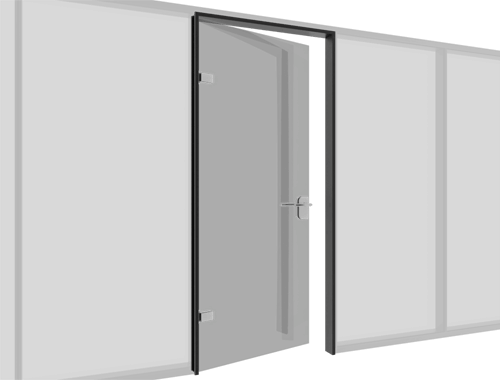

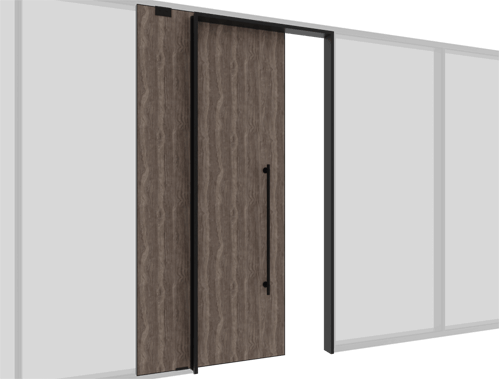

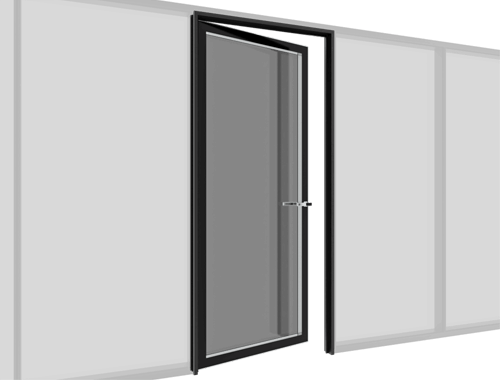

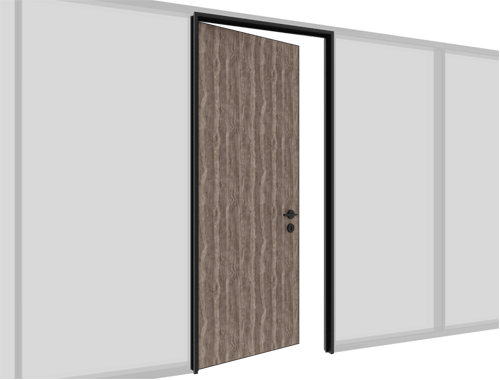

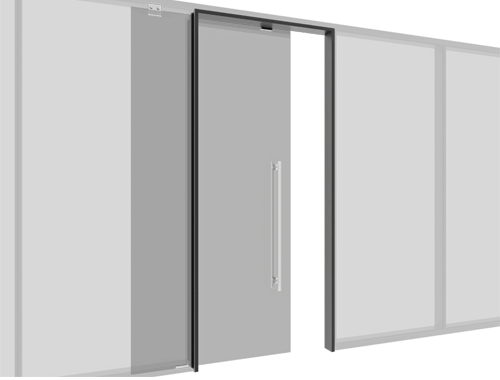

DOOR TYPE
SINGLE OPENING,DOUBLE OPENING, SLIDING WING

SYSTEM OPERATINGTEMPERATURE
-20+50

WING WIDTH
800 mm-1200mm

WING HEIGHT
2200-3500mm

DOOR OPENING DIRECTIONS
Internal opening, external opening, double opening
