D 100

ALNOPLAN MODULAR PARTITION WALL

A More Aesthetic Appearance,
Maximum Transparency!

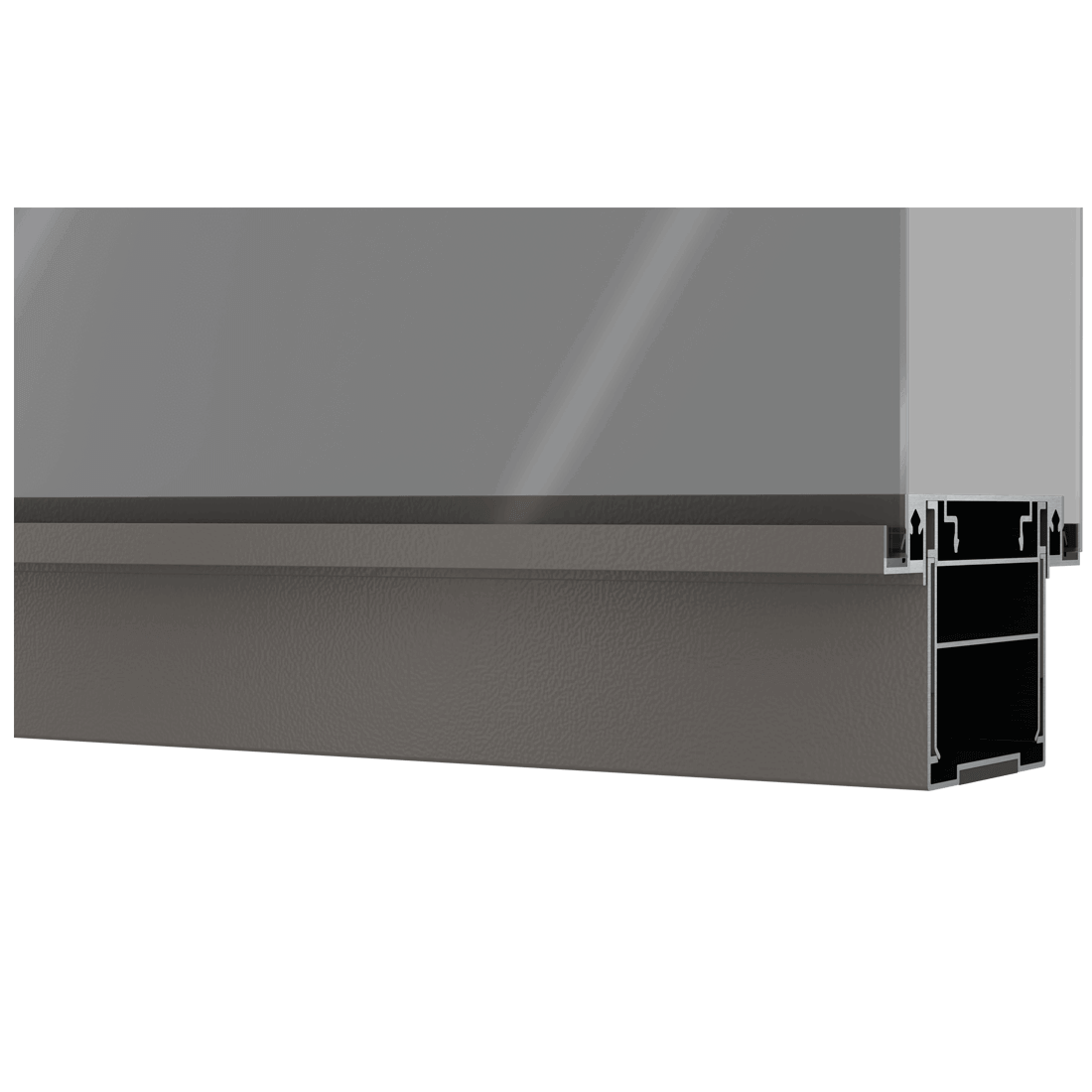

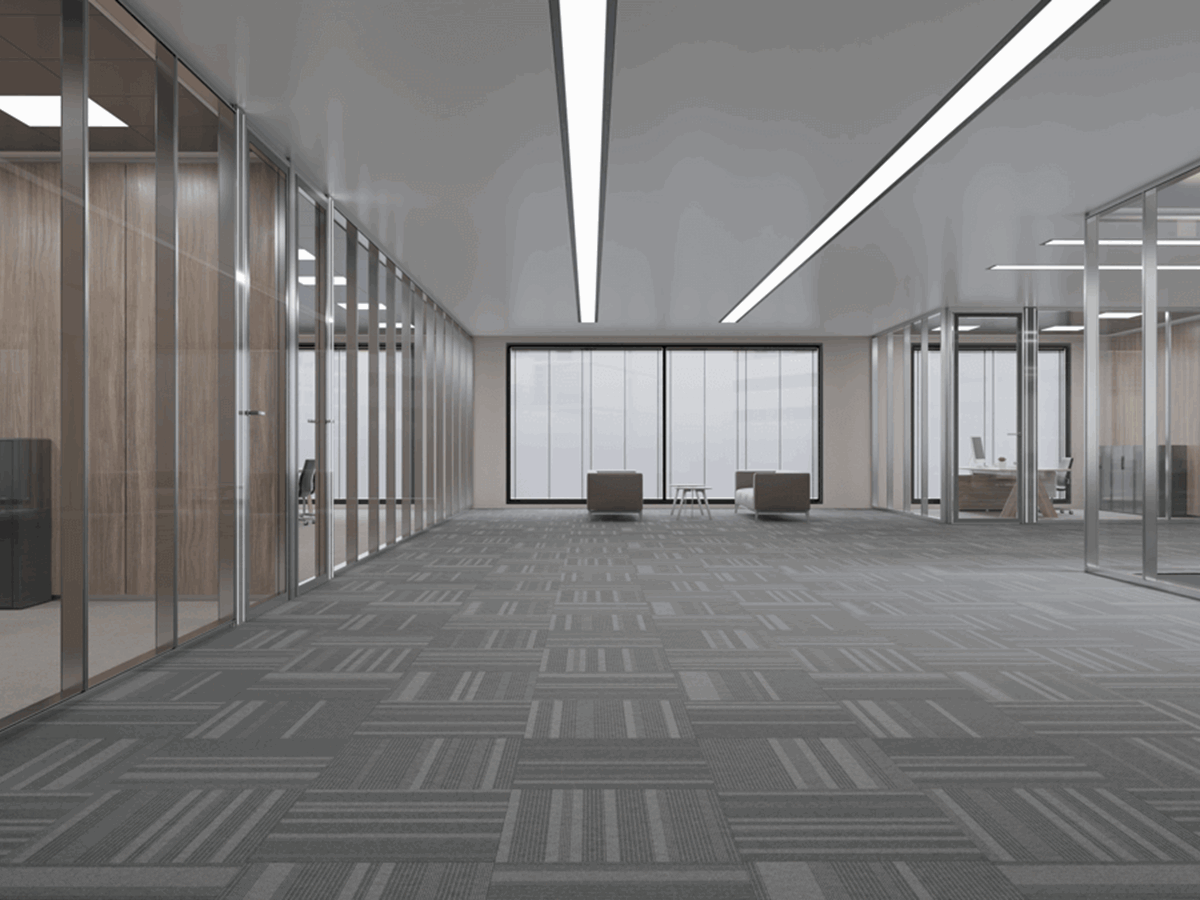

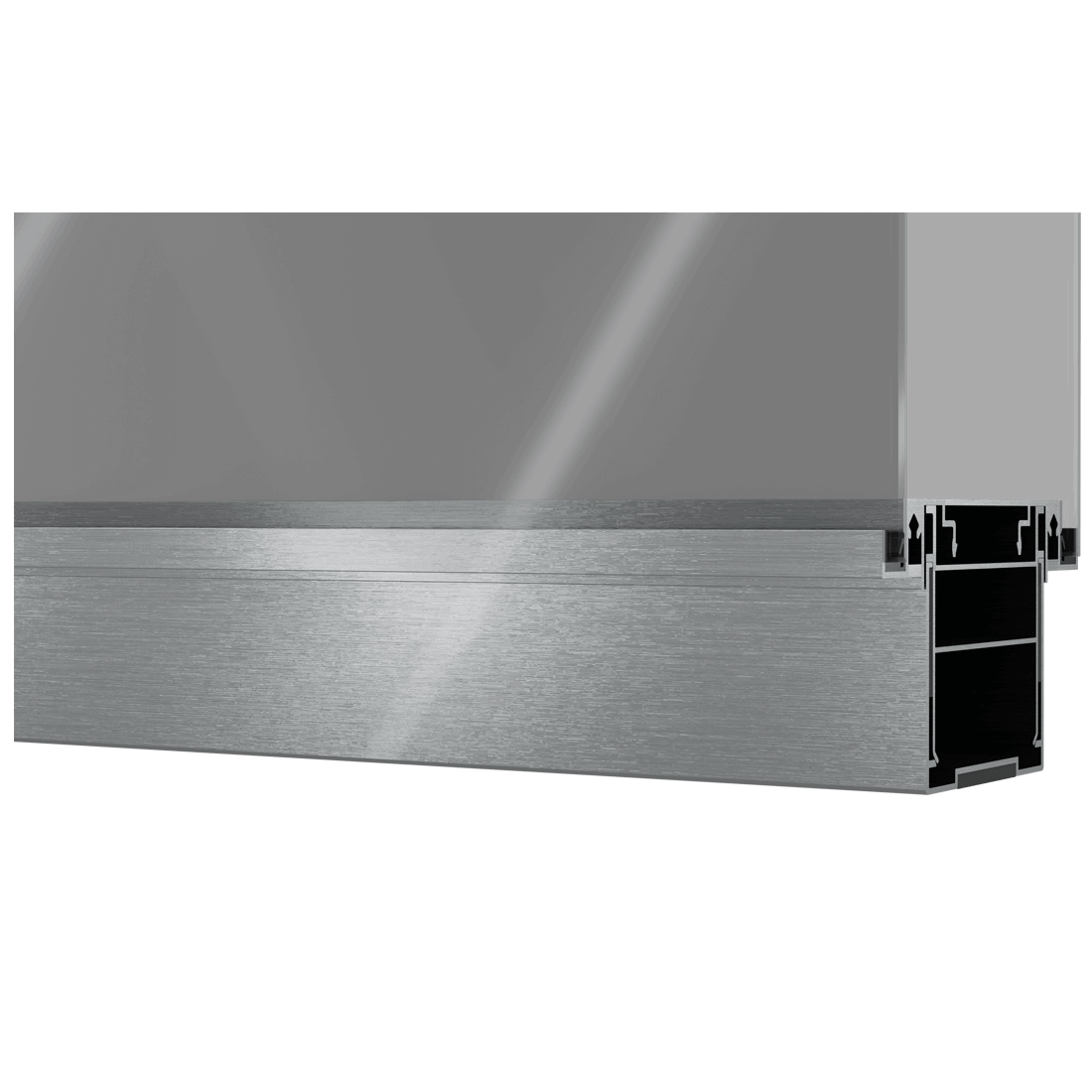

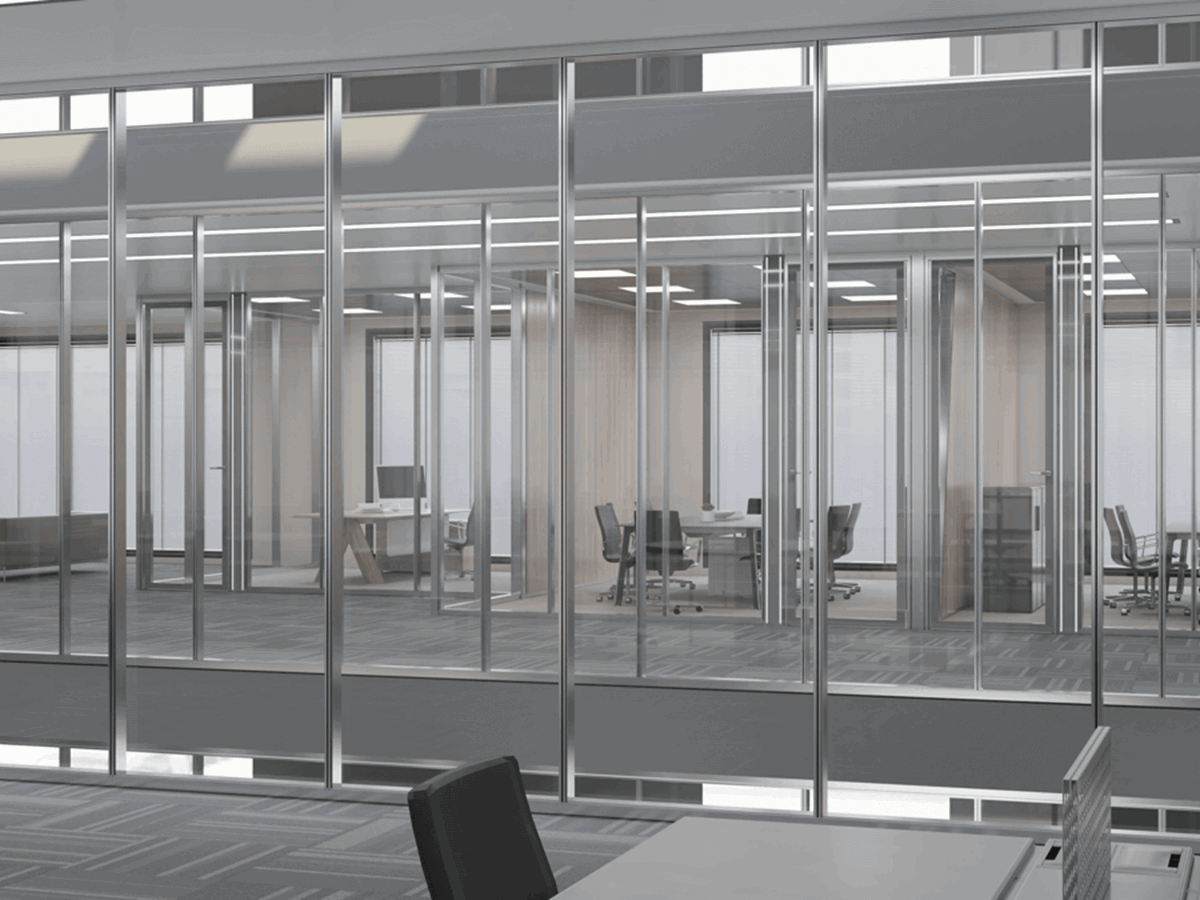

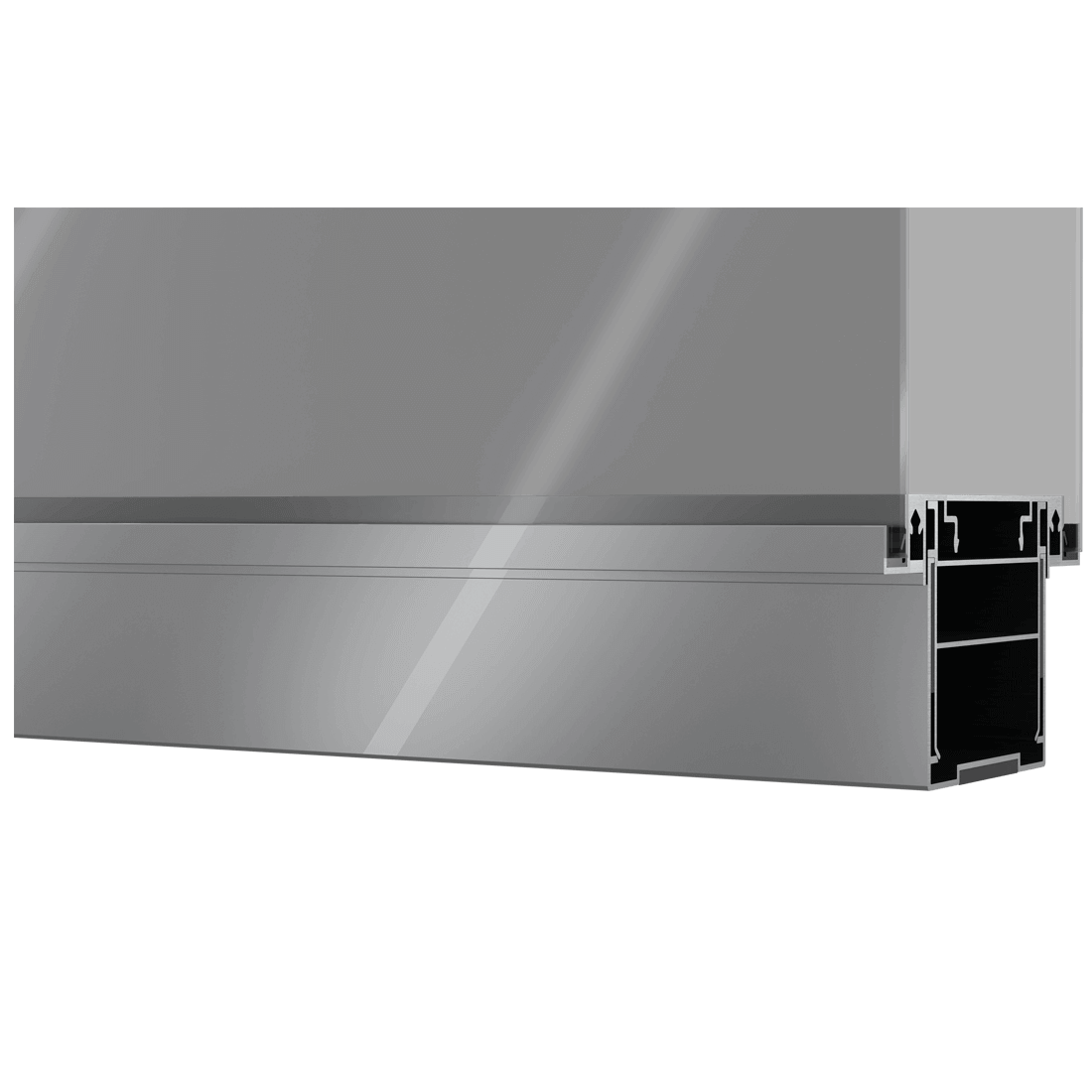

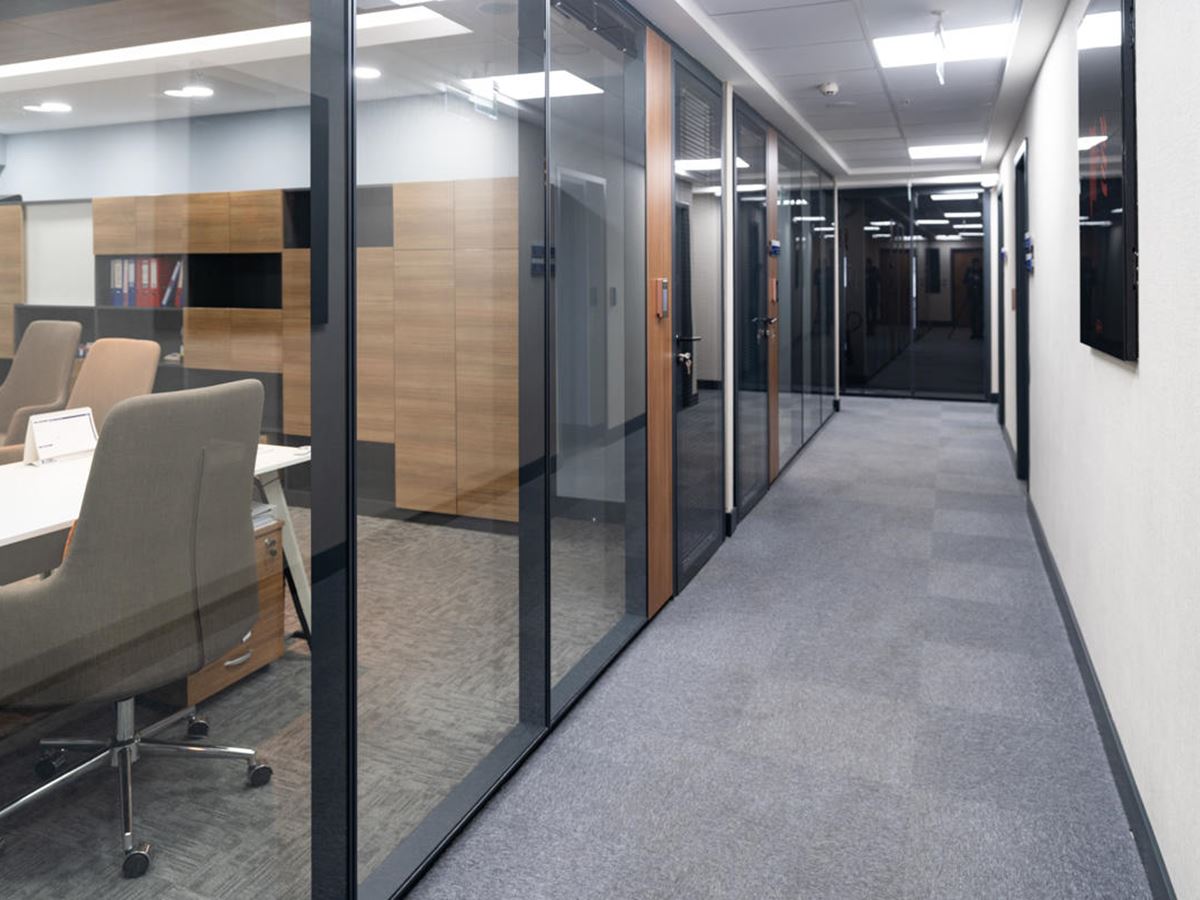

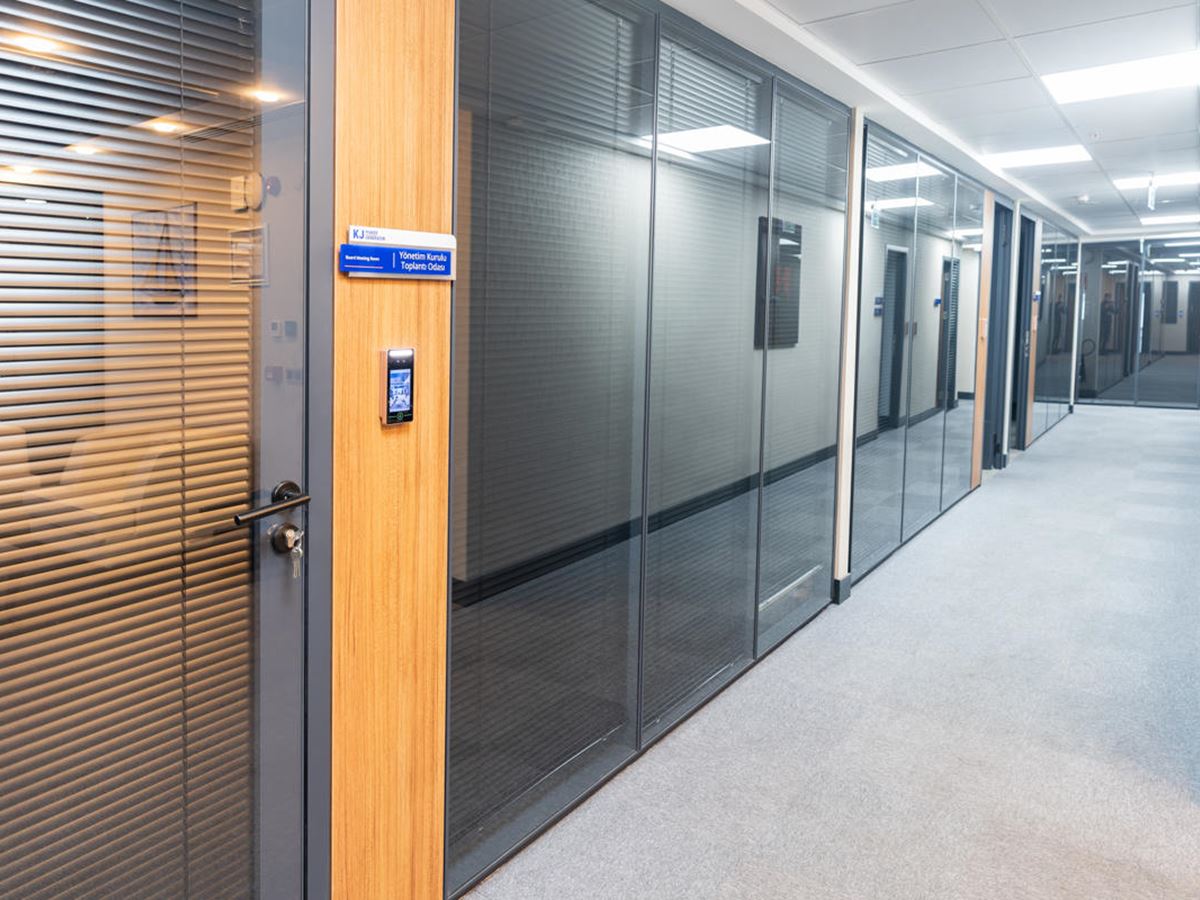

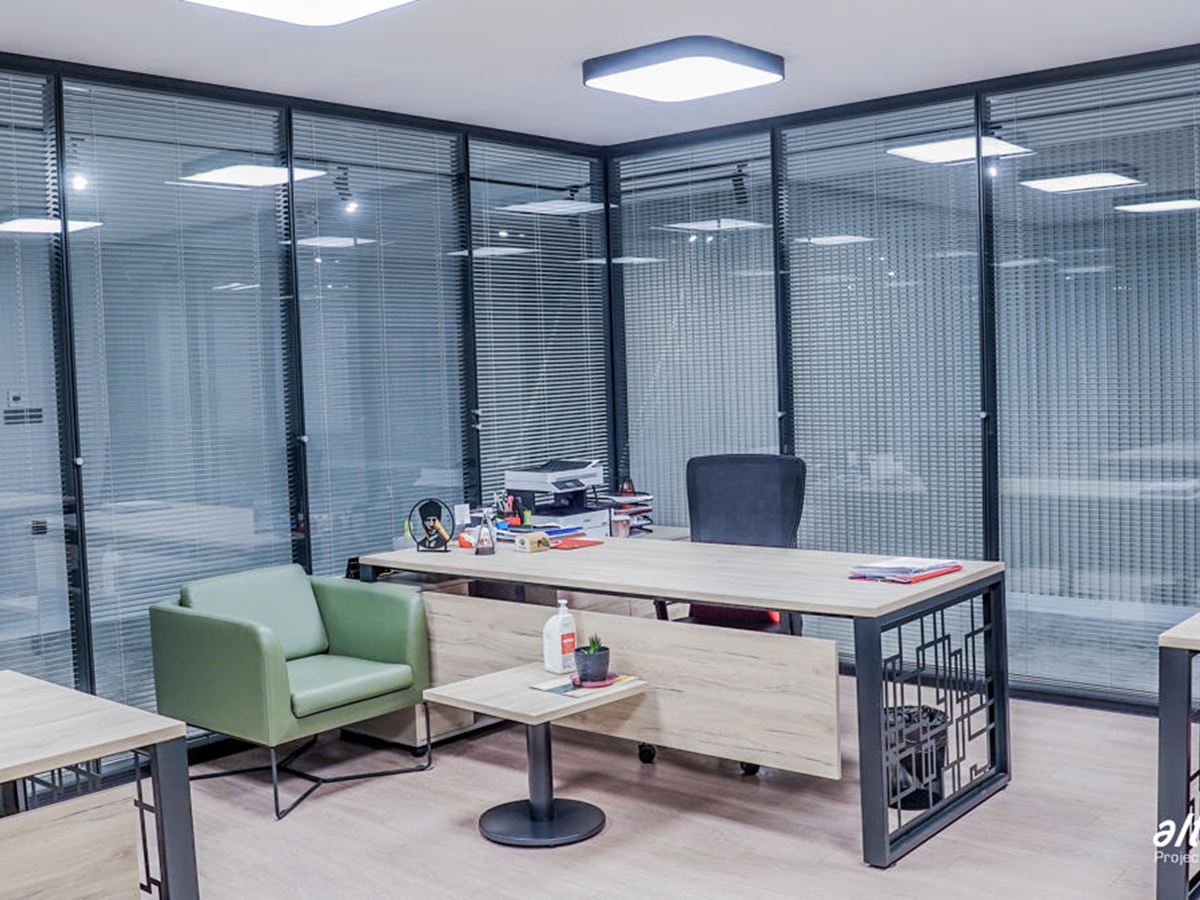

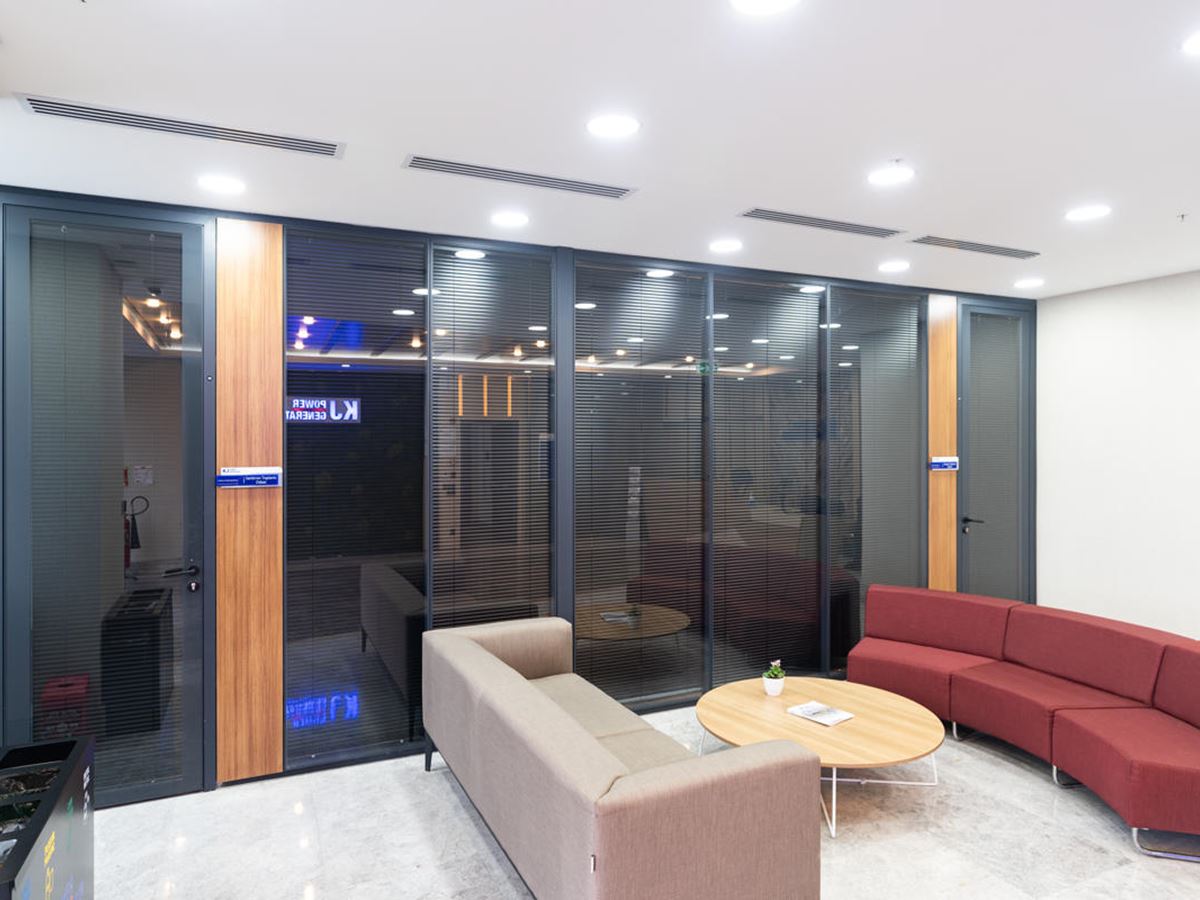

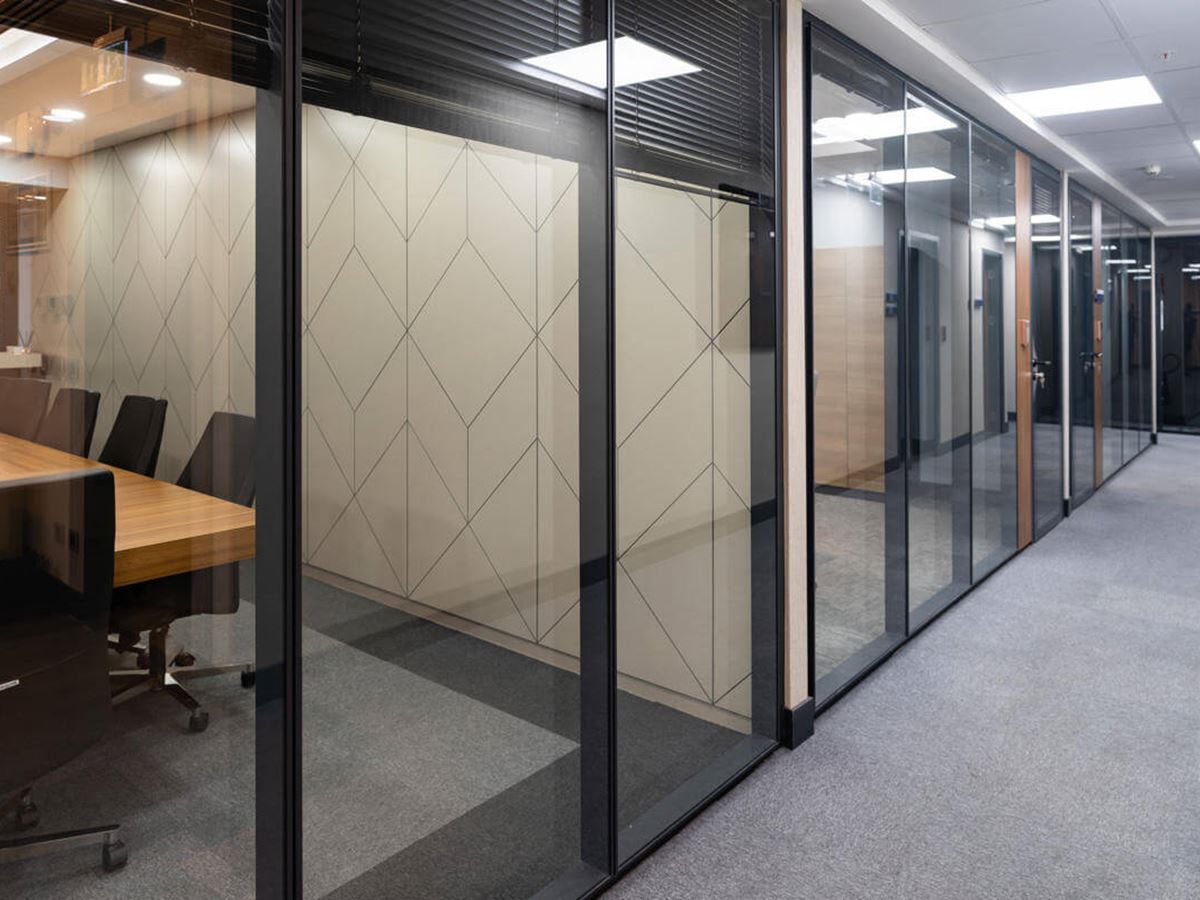

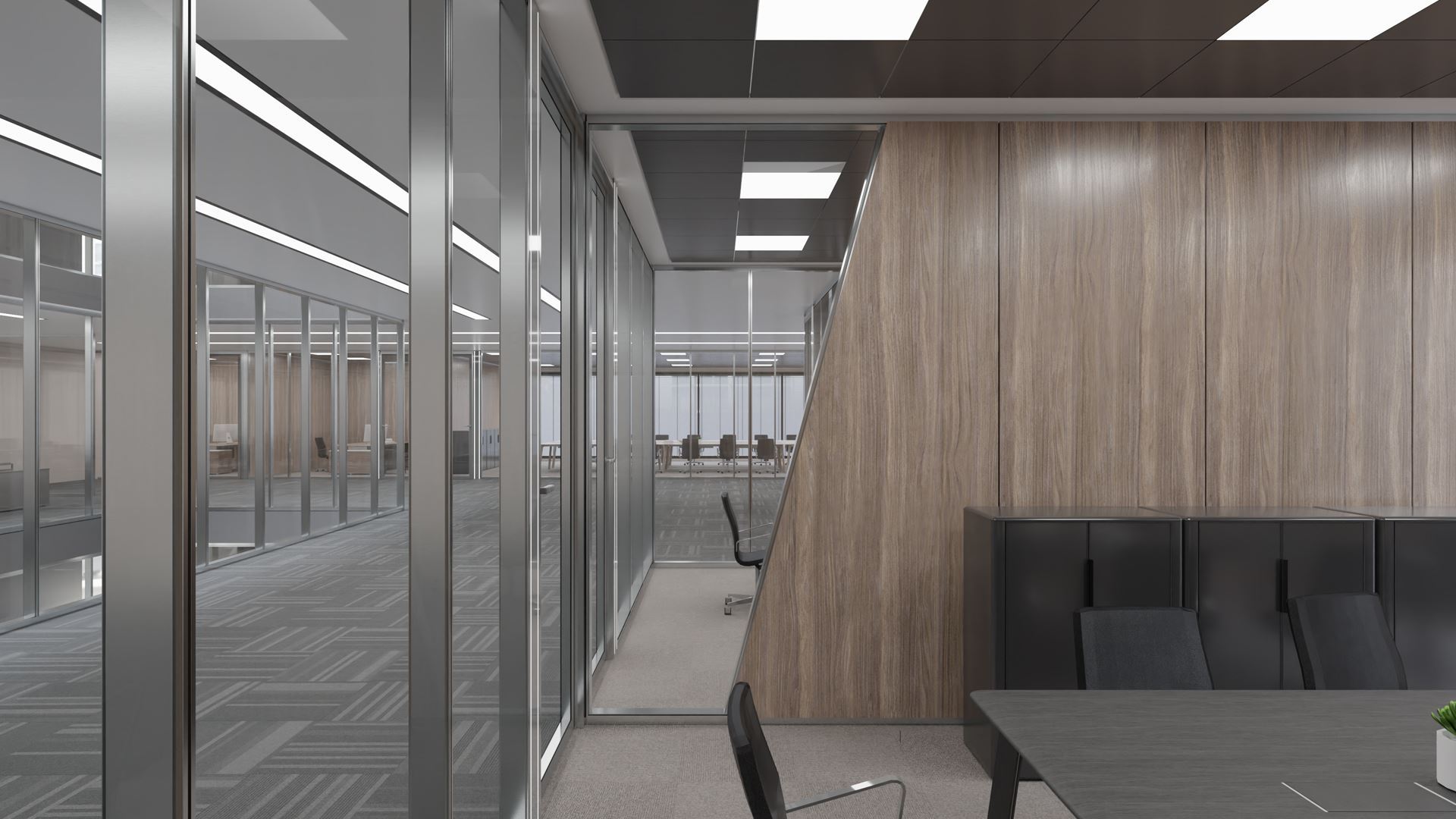

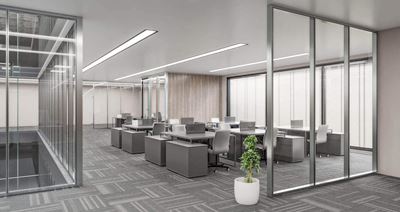

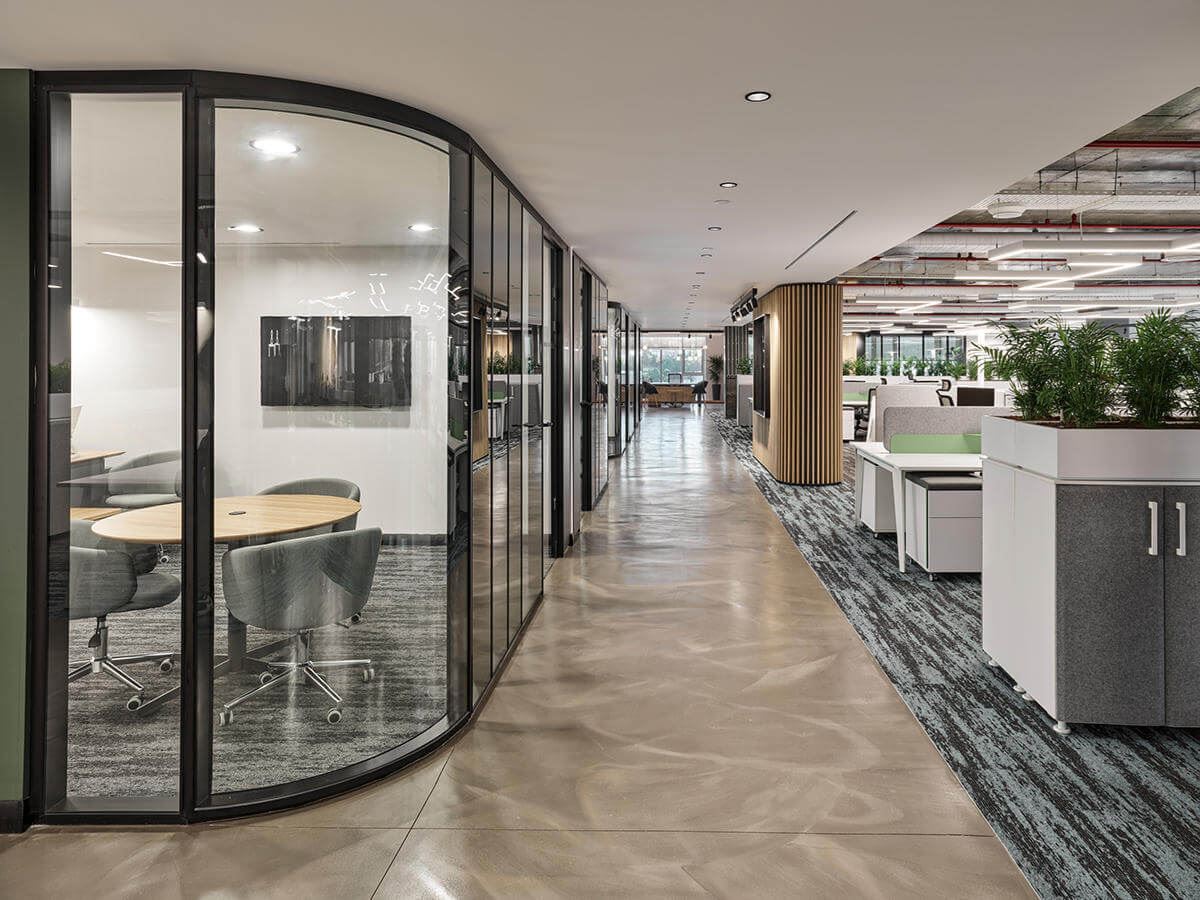

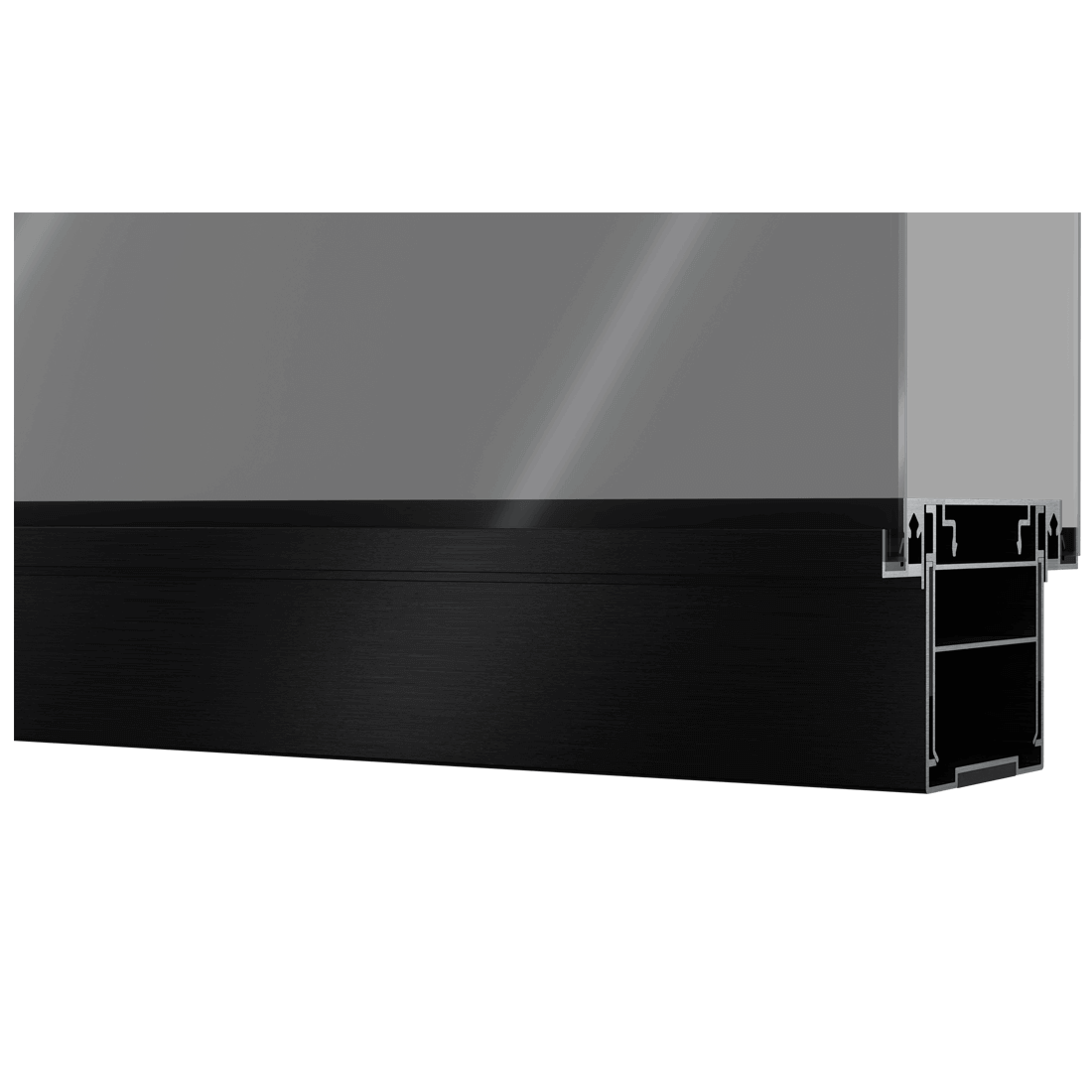

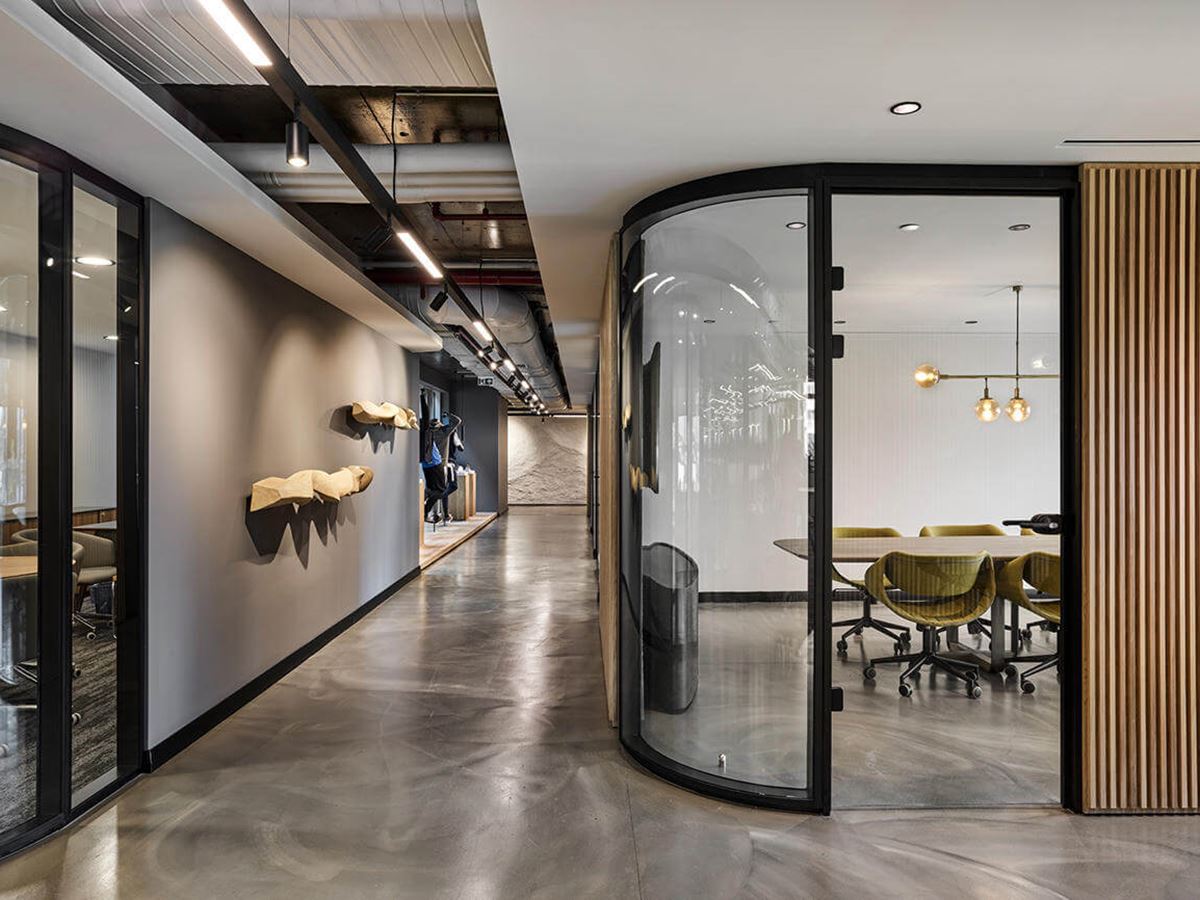

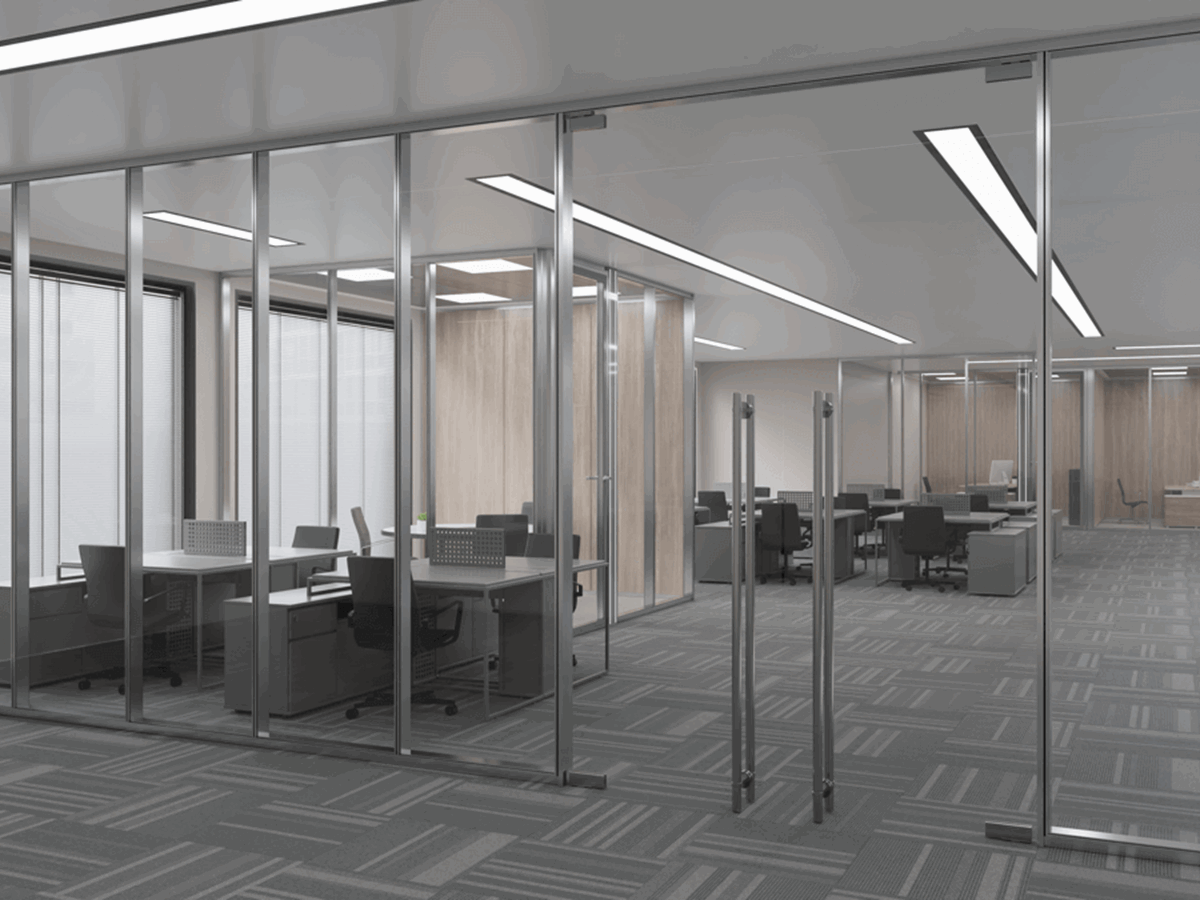

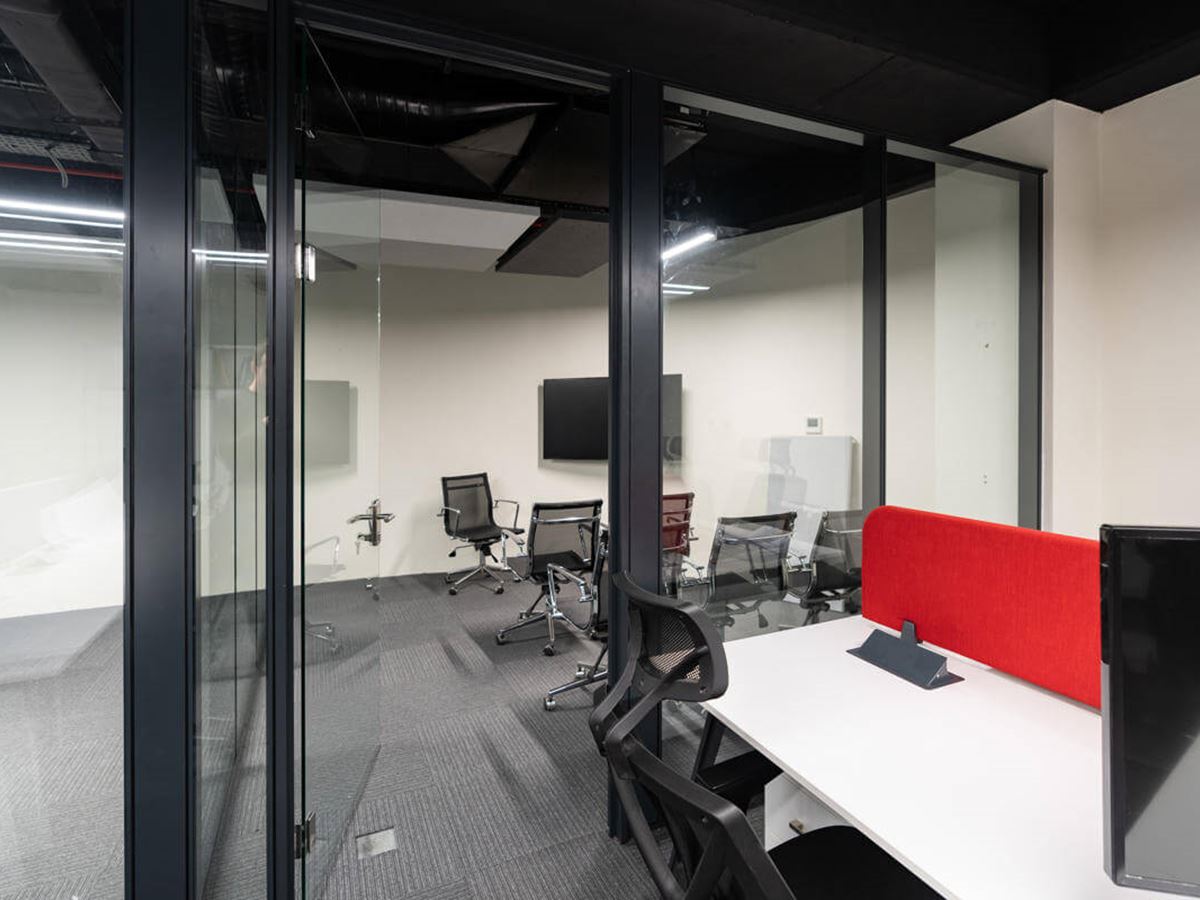

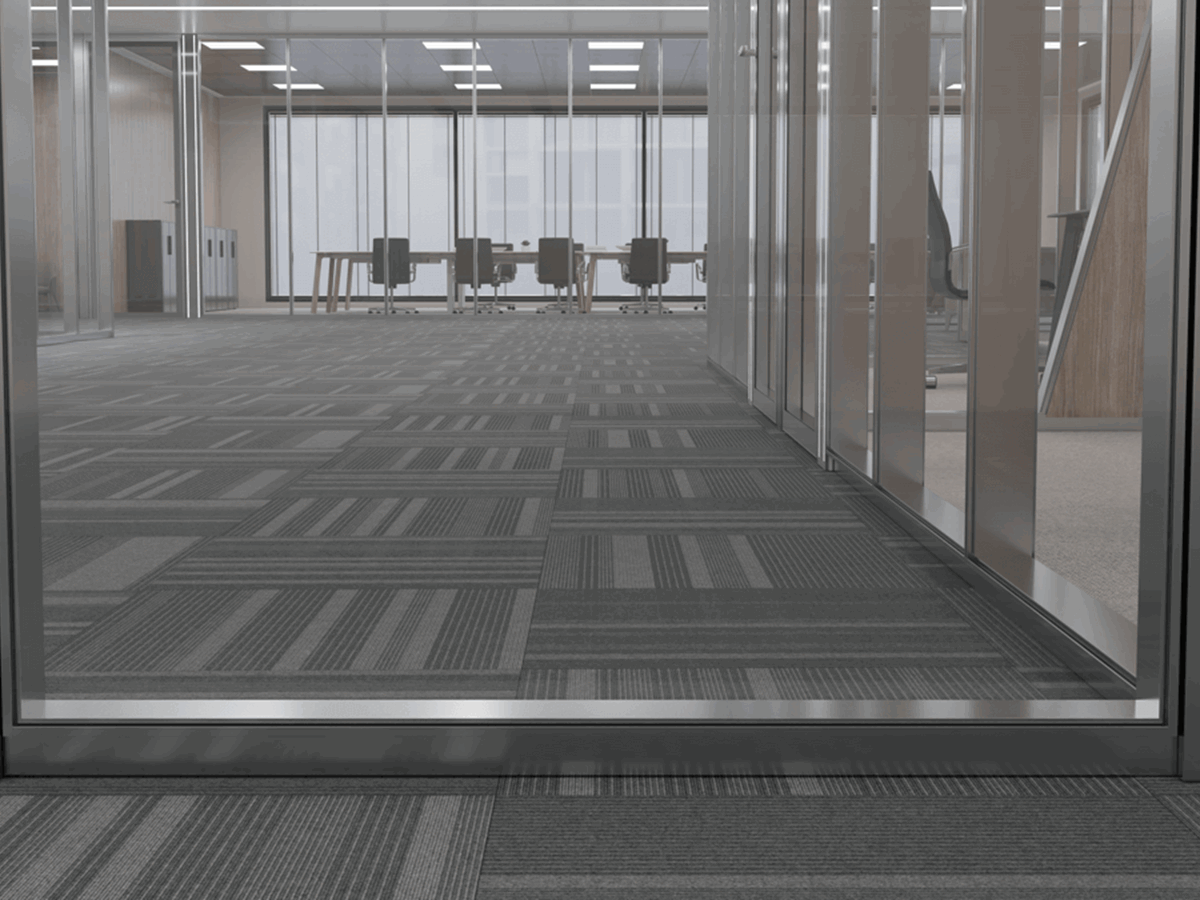

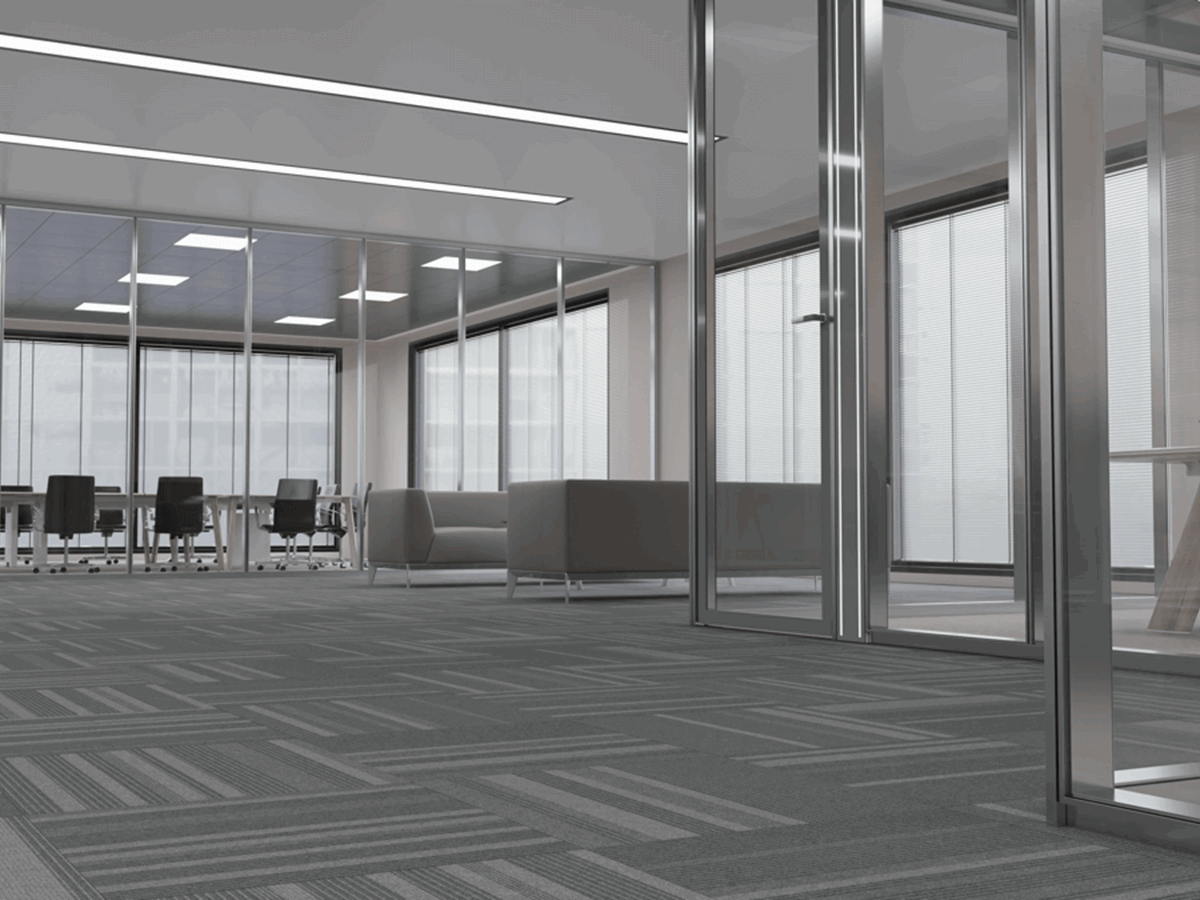

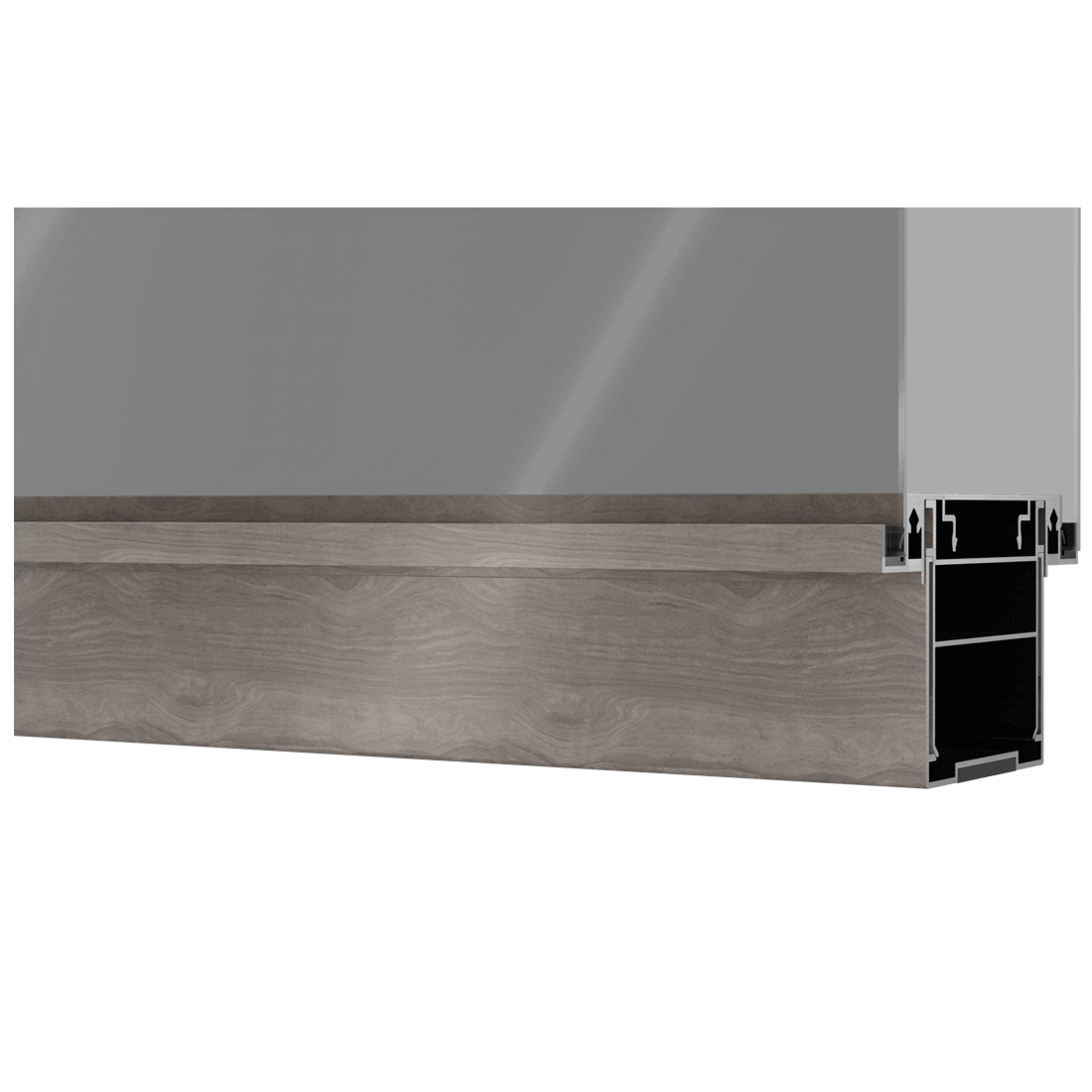

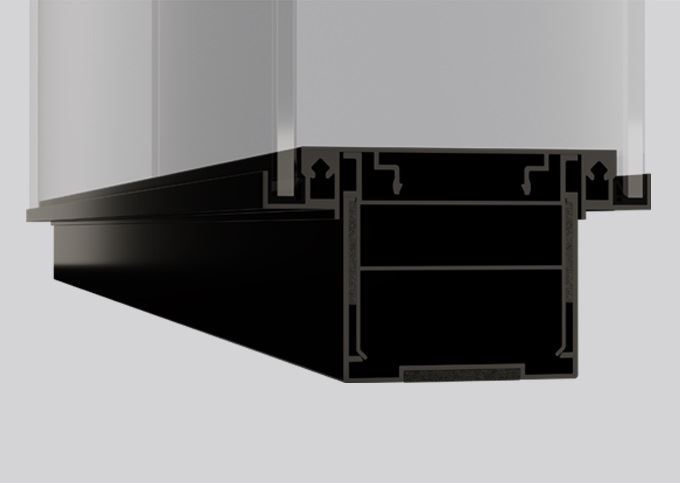

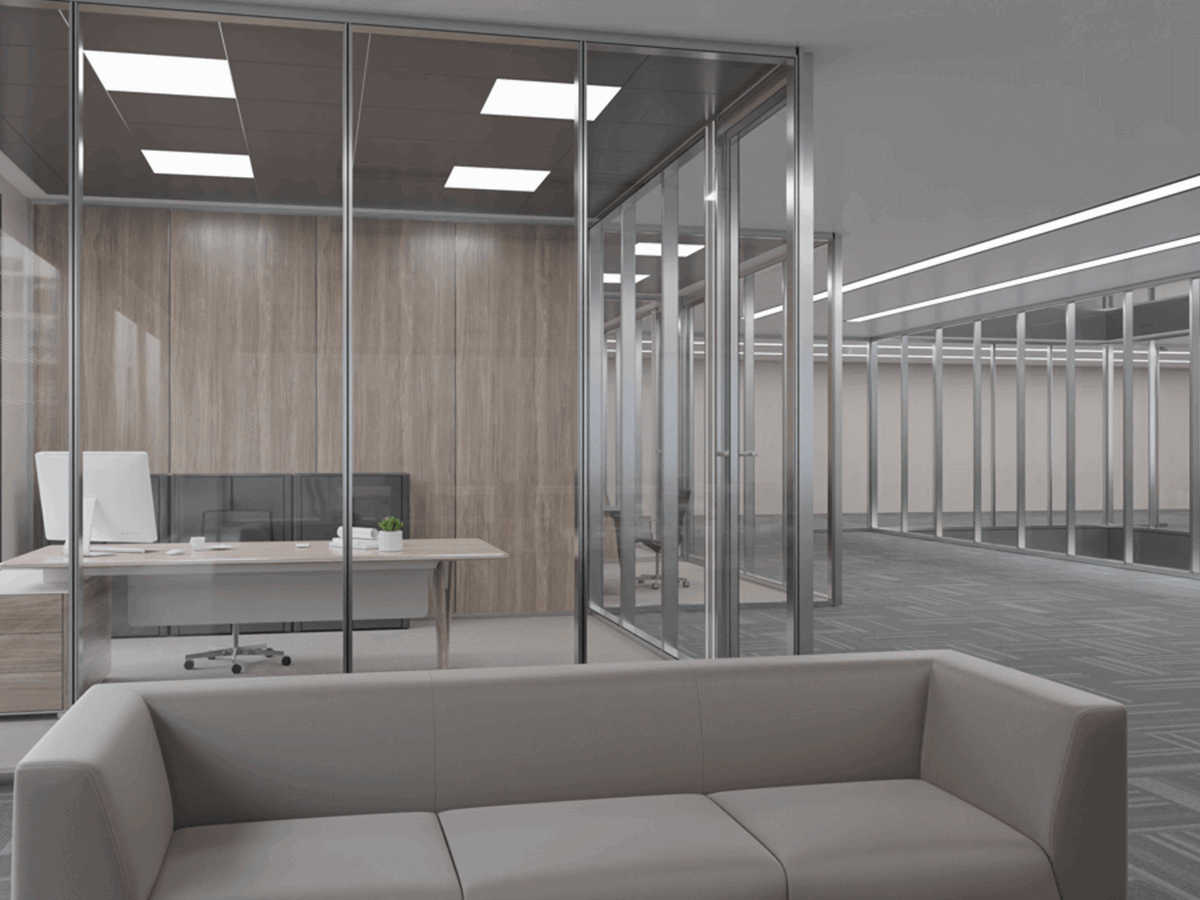

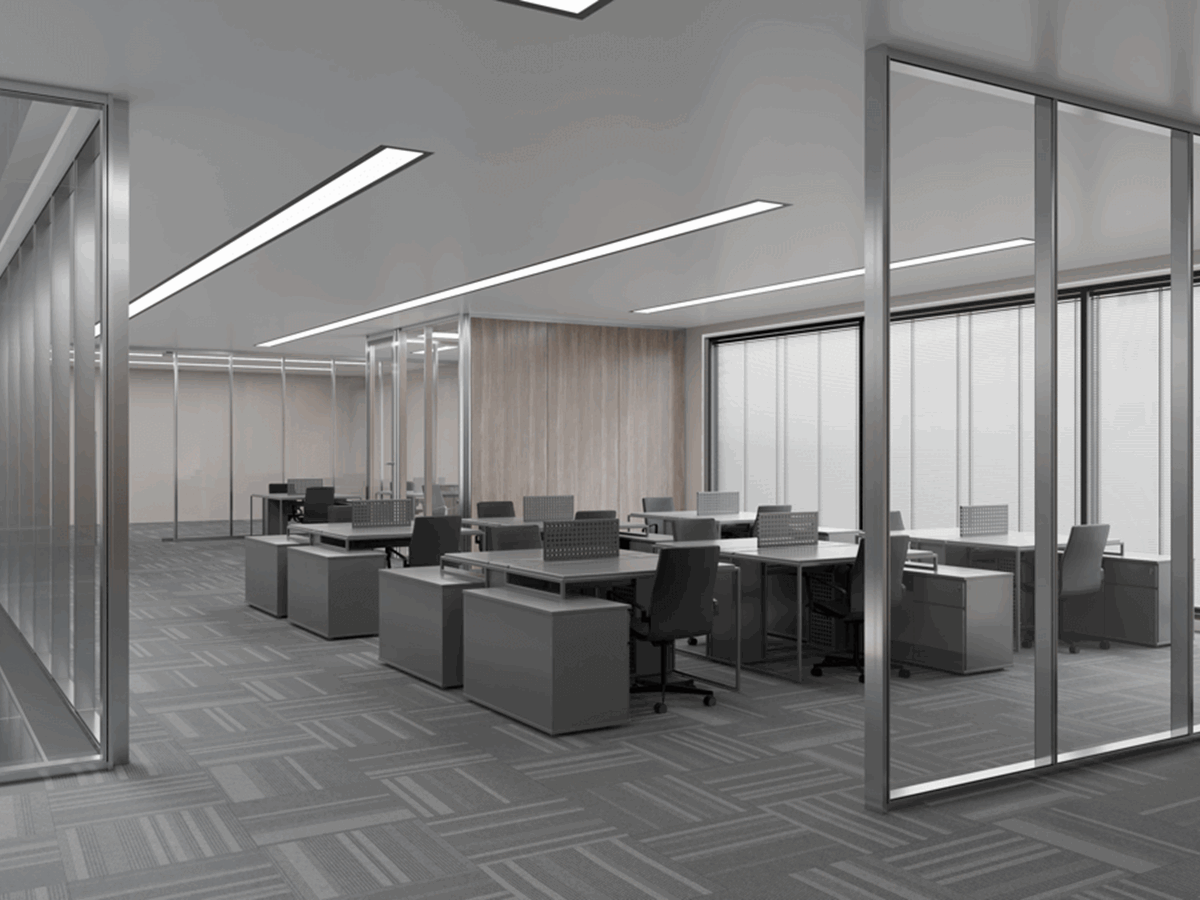

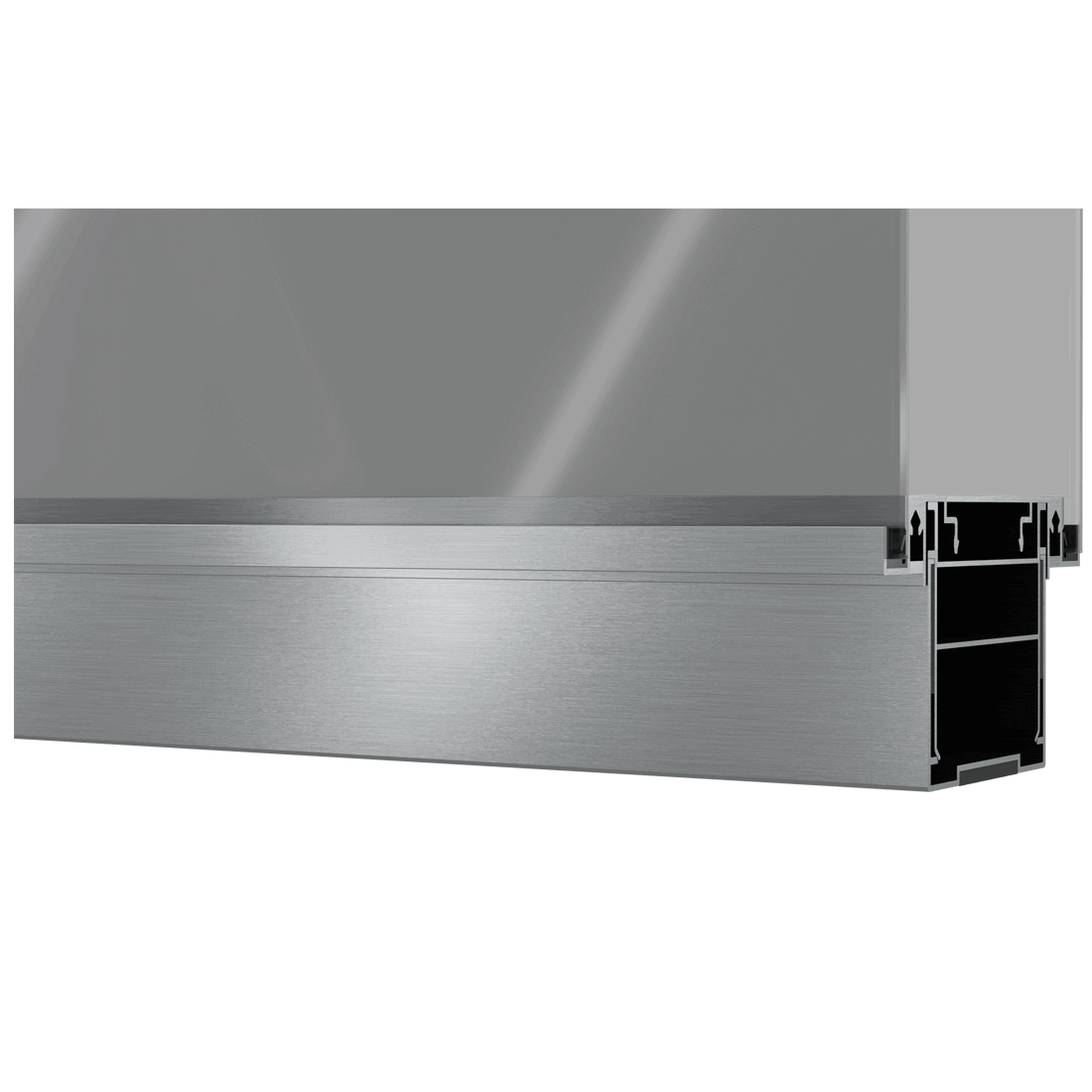

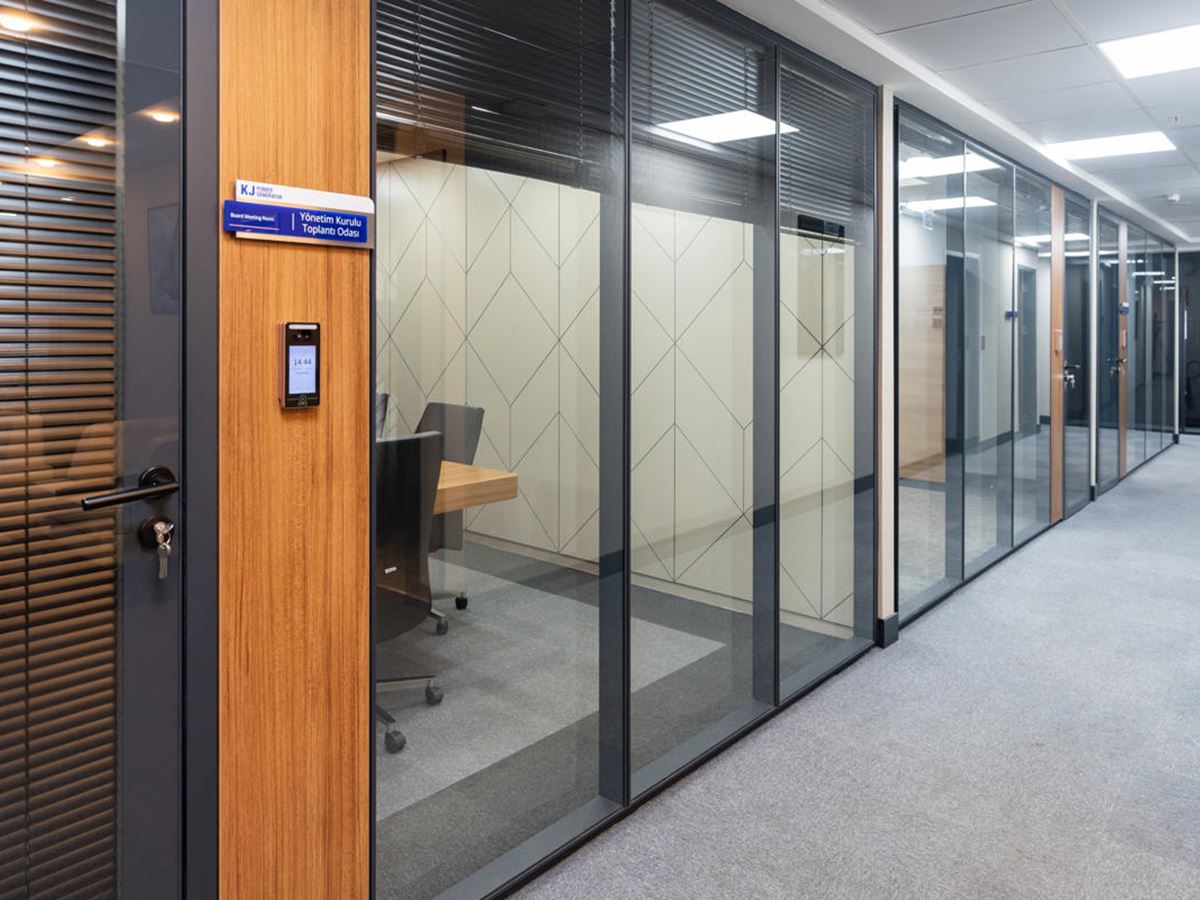

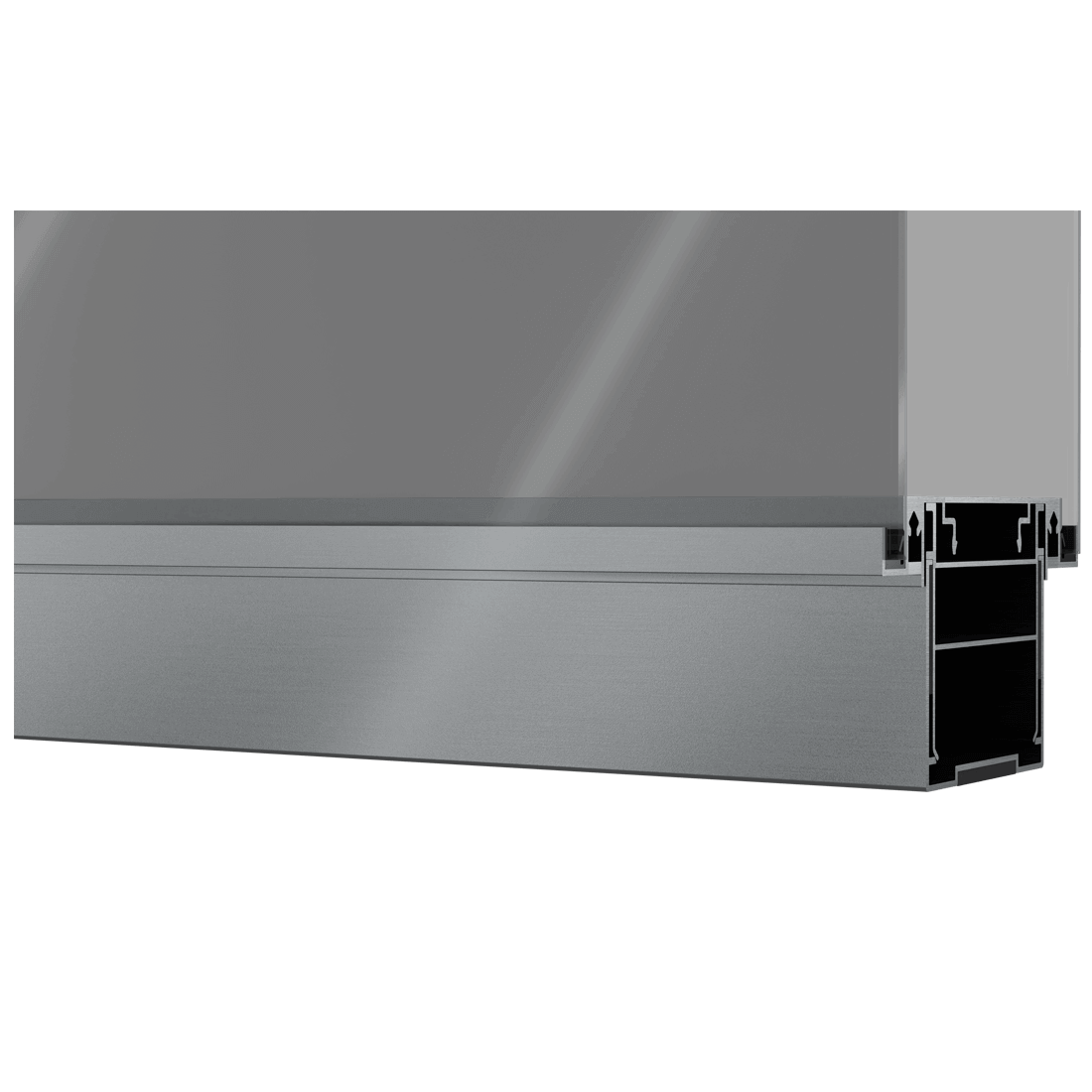

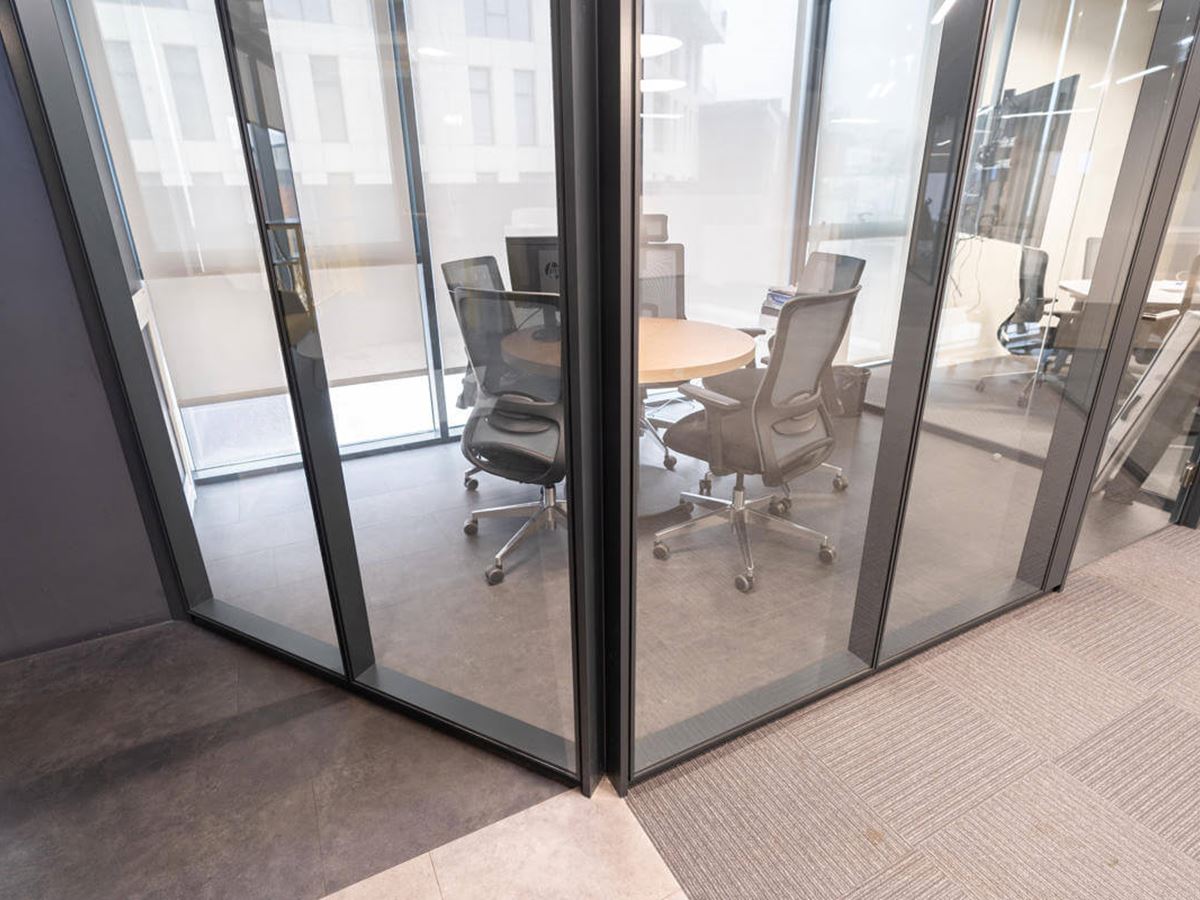

Alnoplan D100 system is a 100 mm thick single or double glazed, sound insulated and grouted partitionwall system. The glazed frame is minimized for a more aesthetic appearance and maximum transparency in theenvironment. The system's slim design creates a minimal impact.

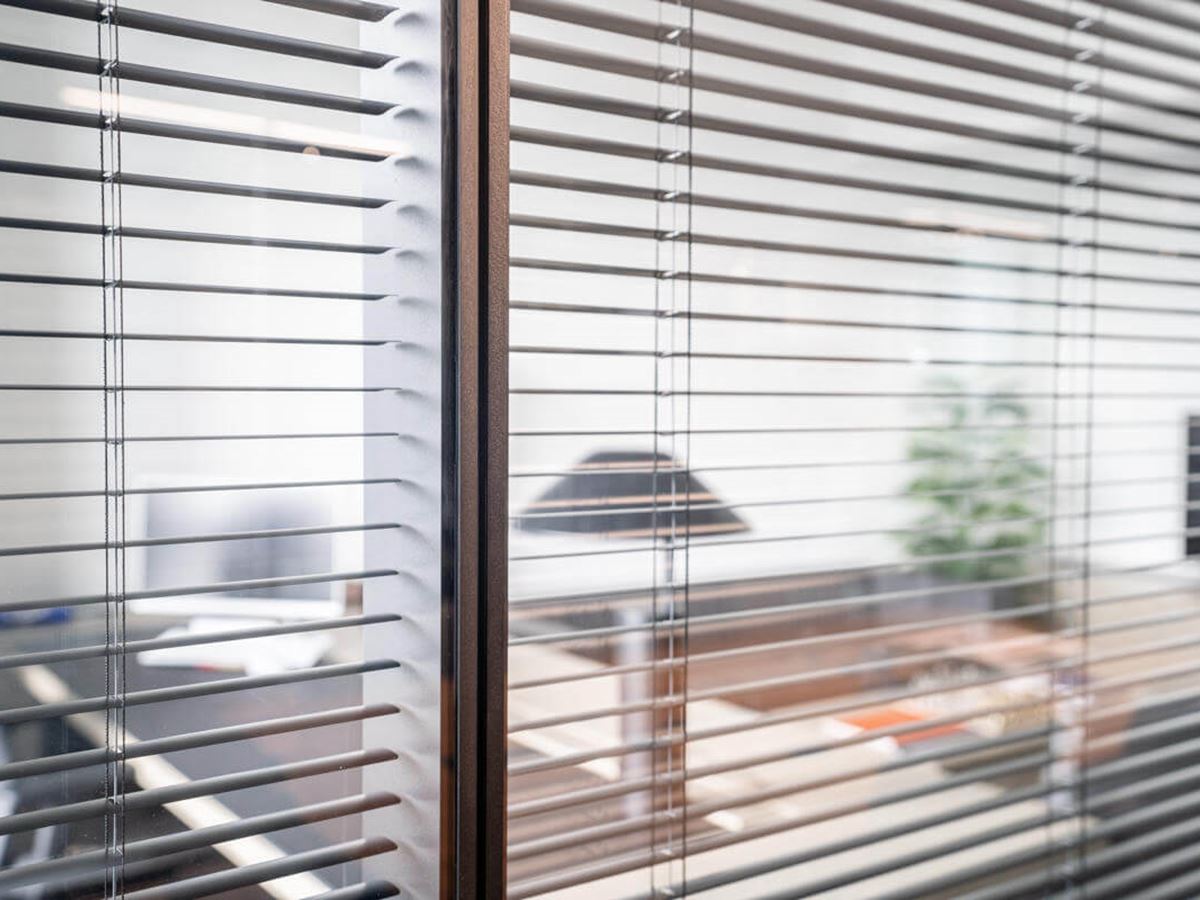

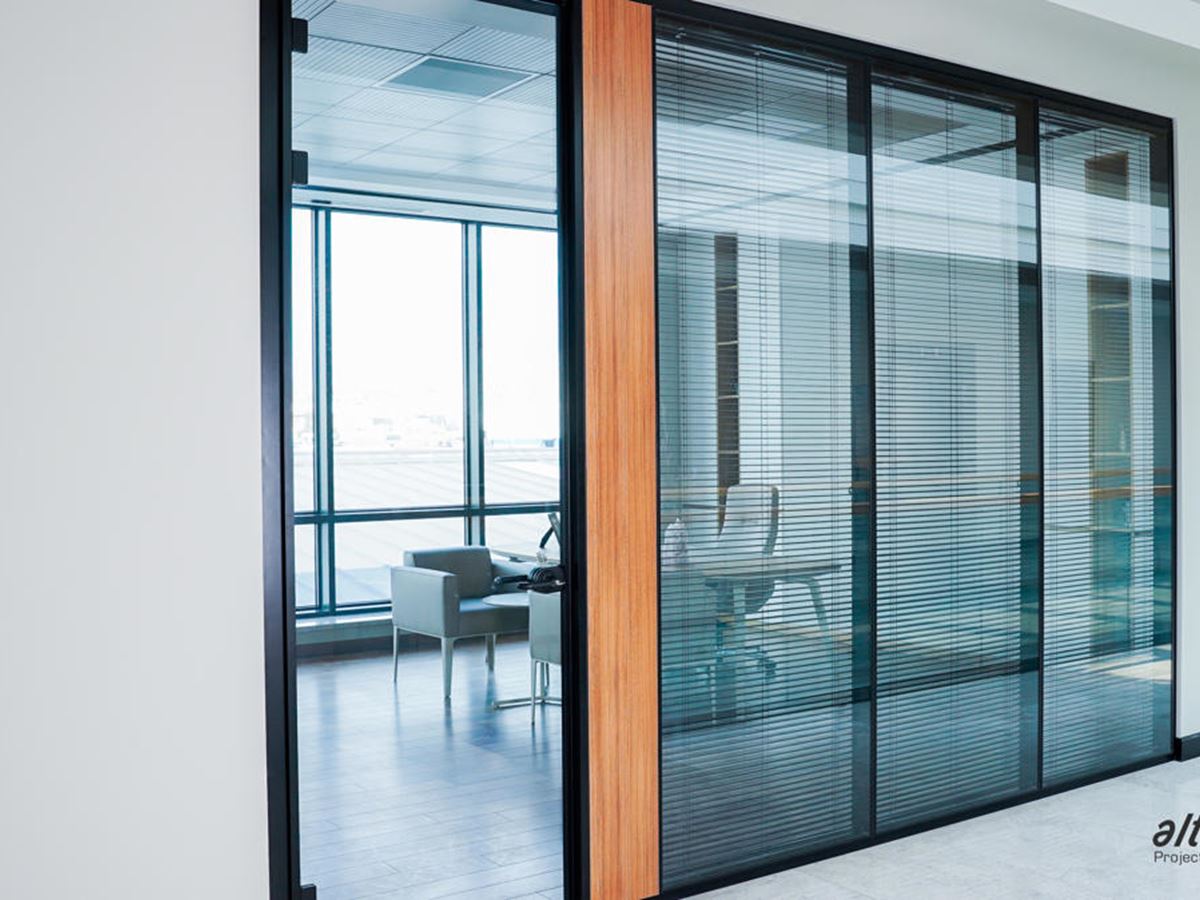

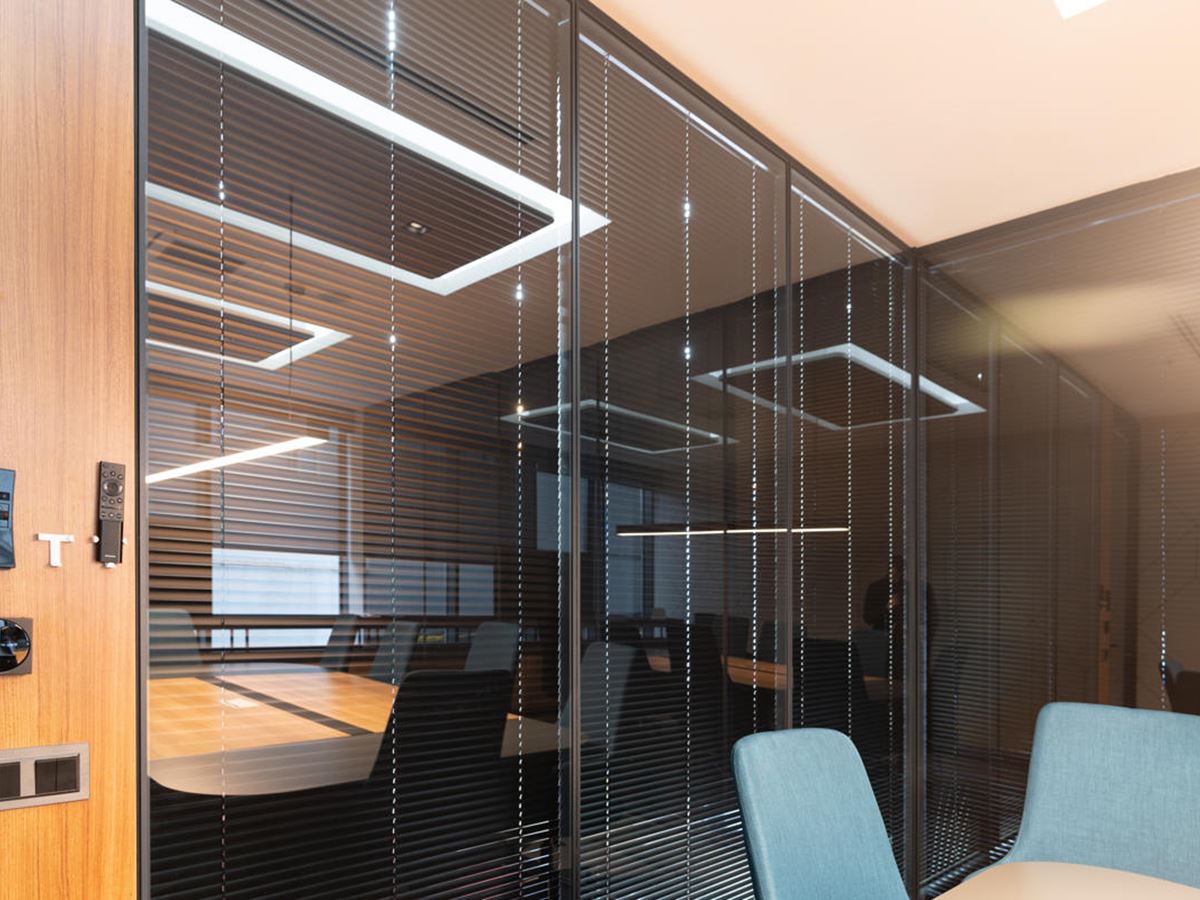

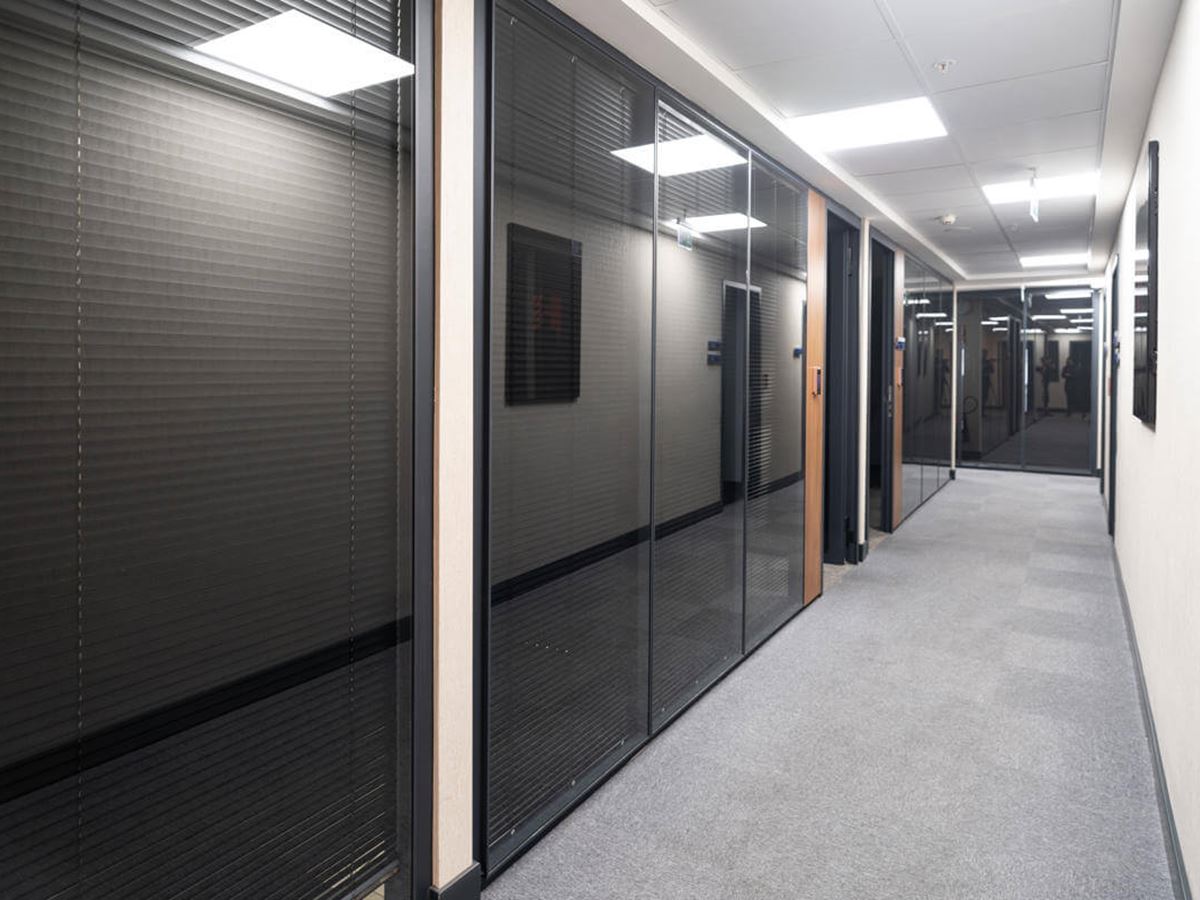

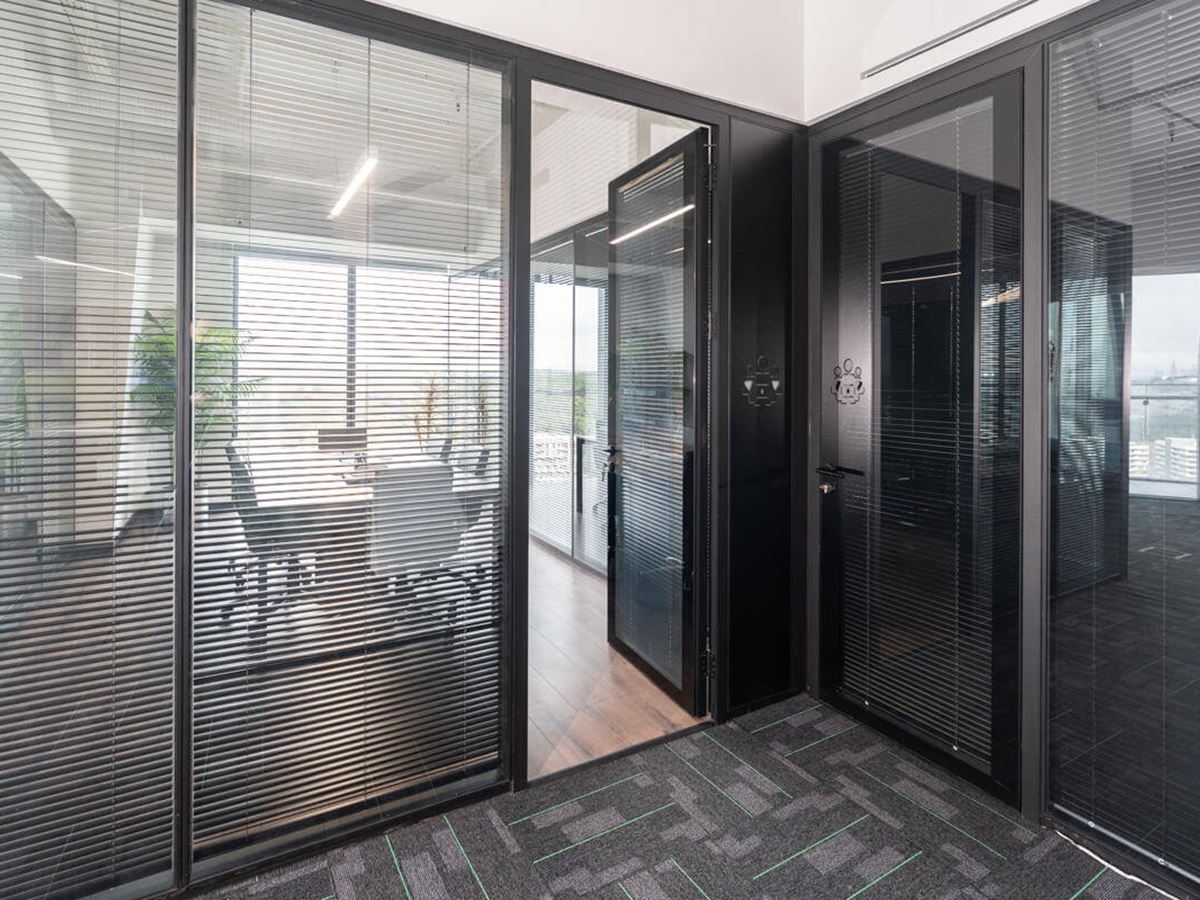

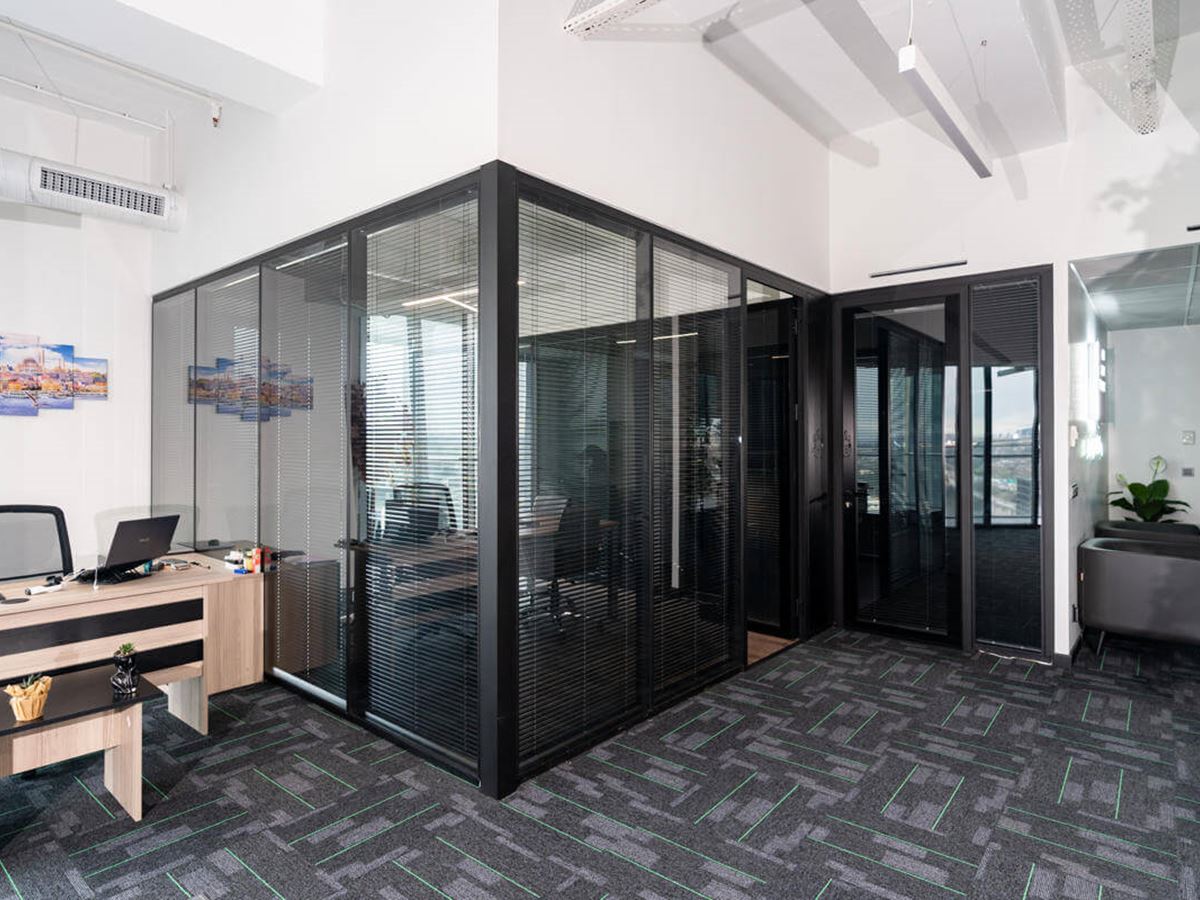

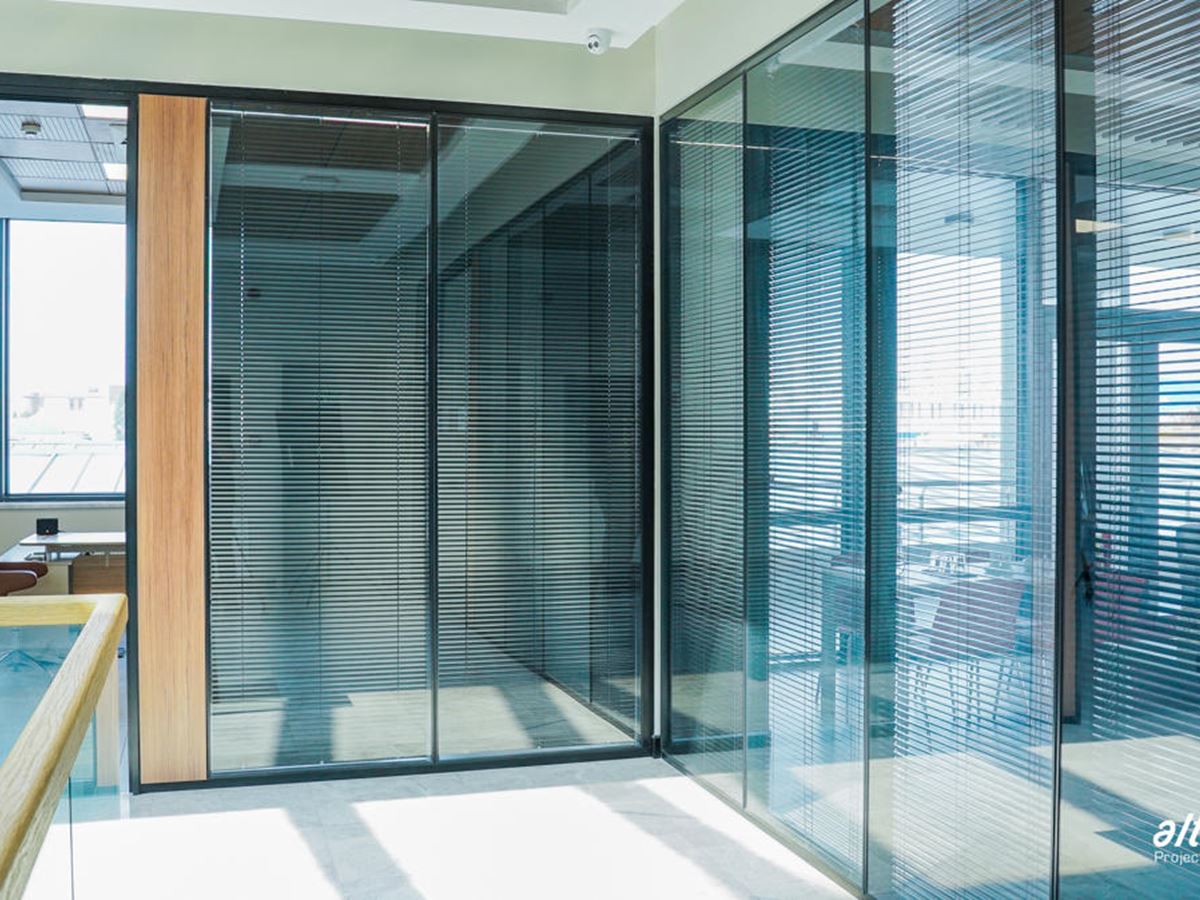

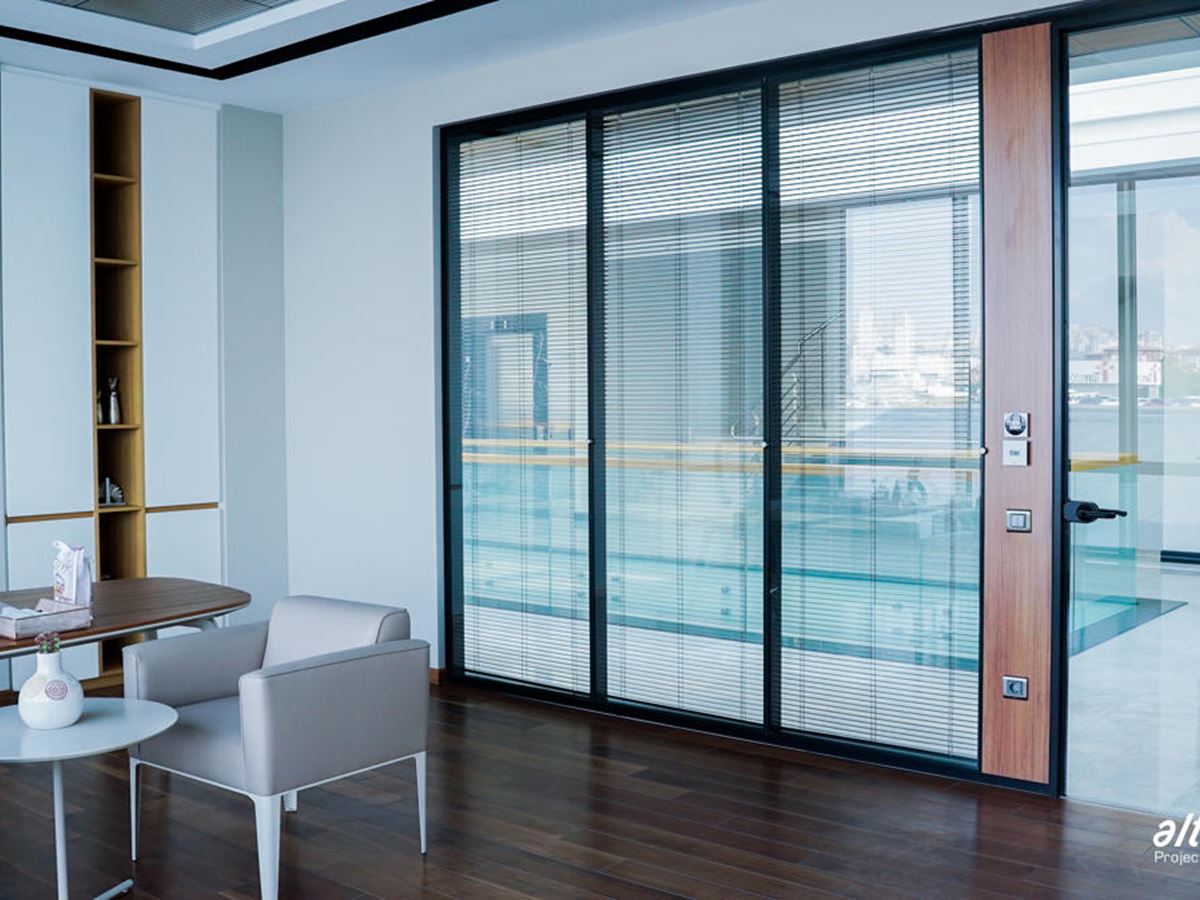

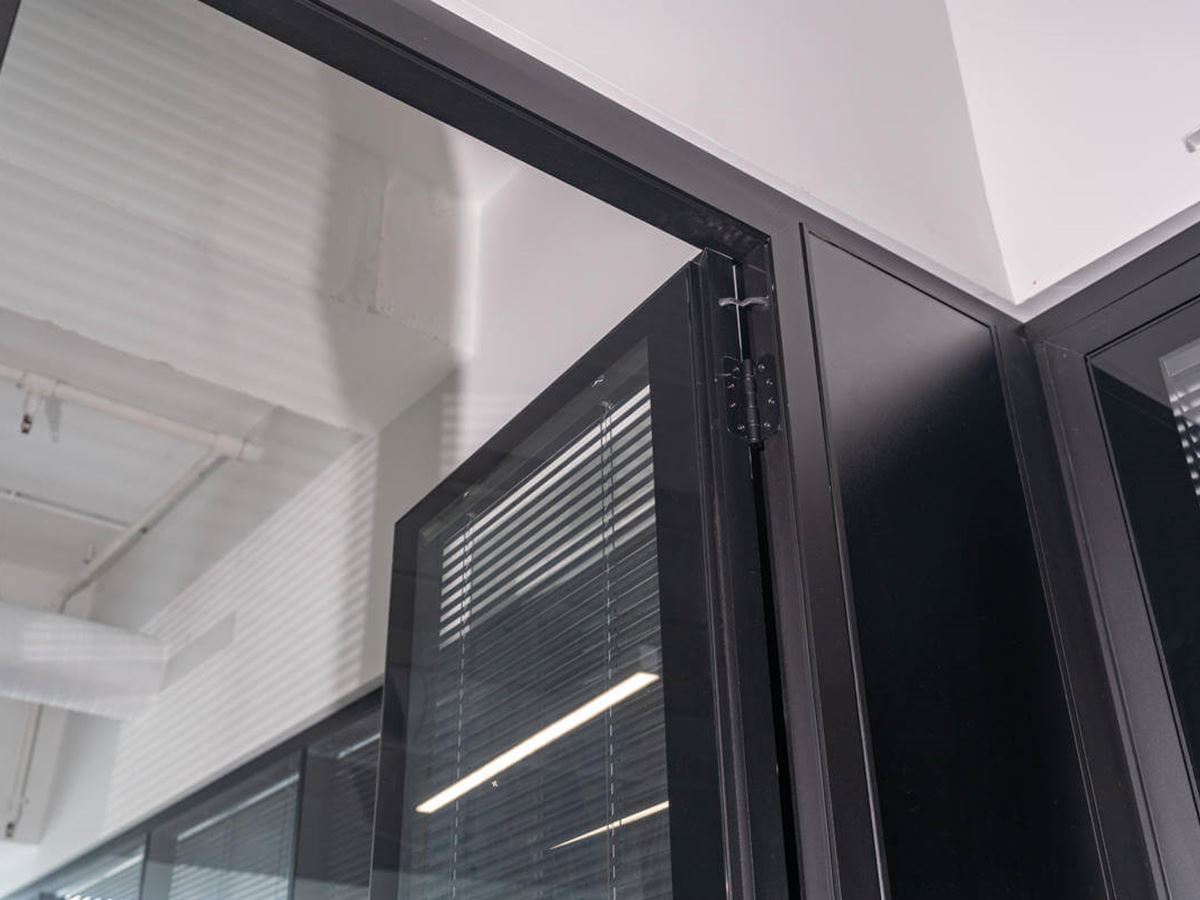

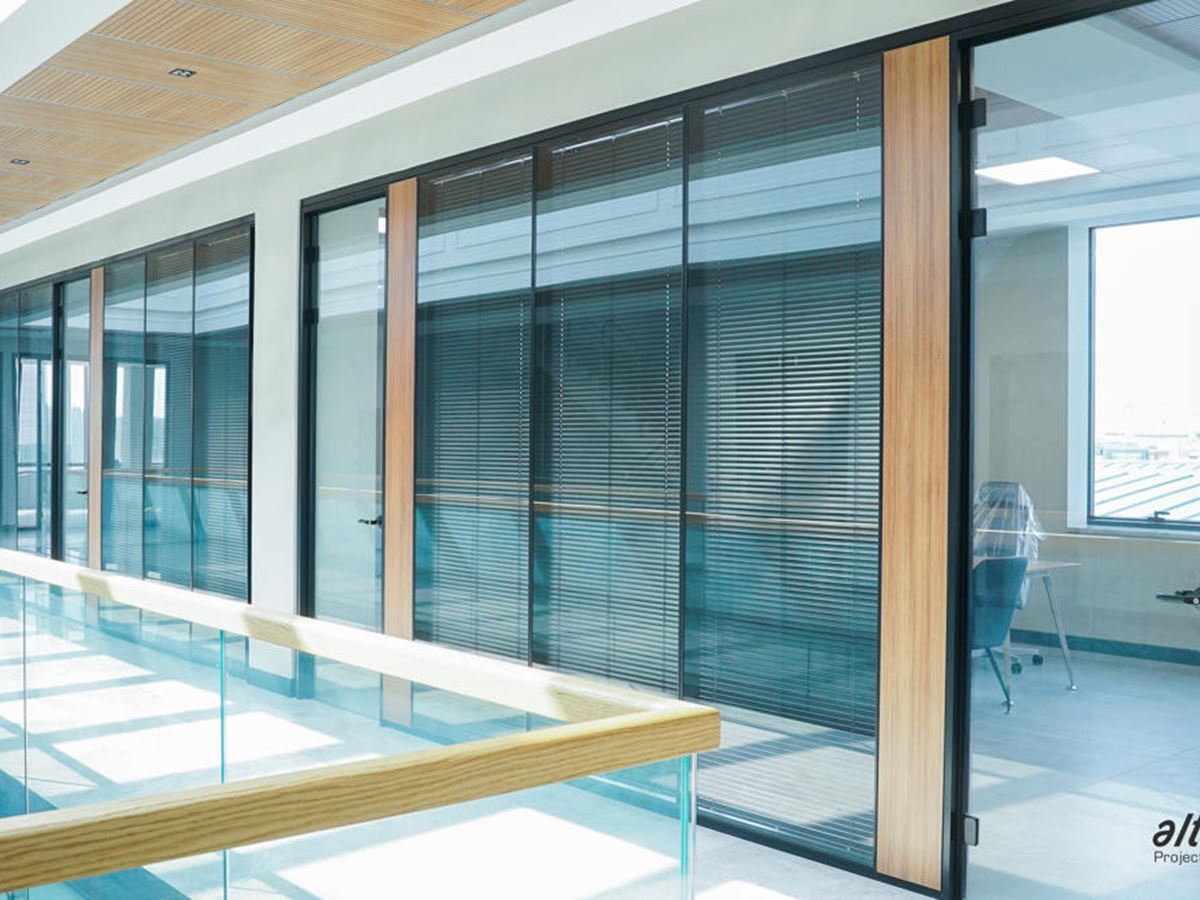

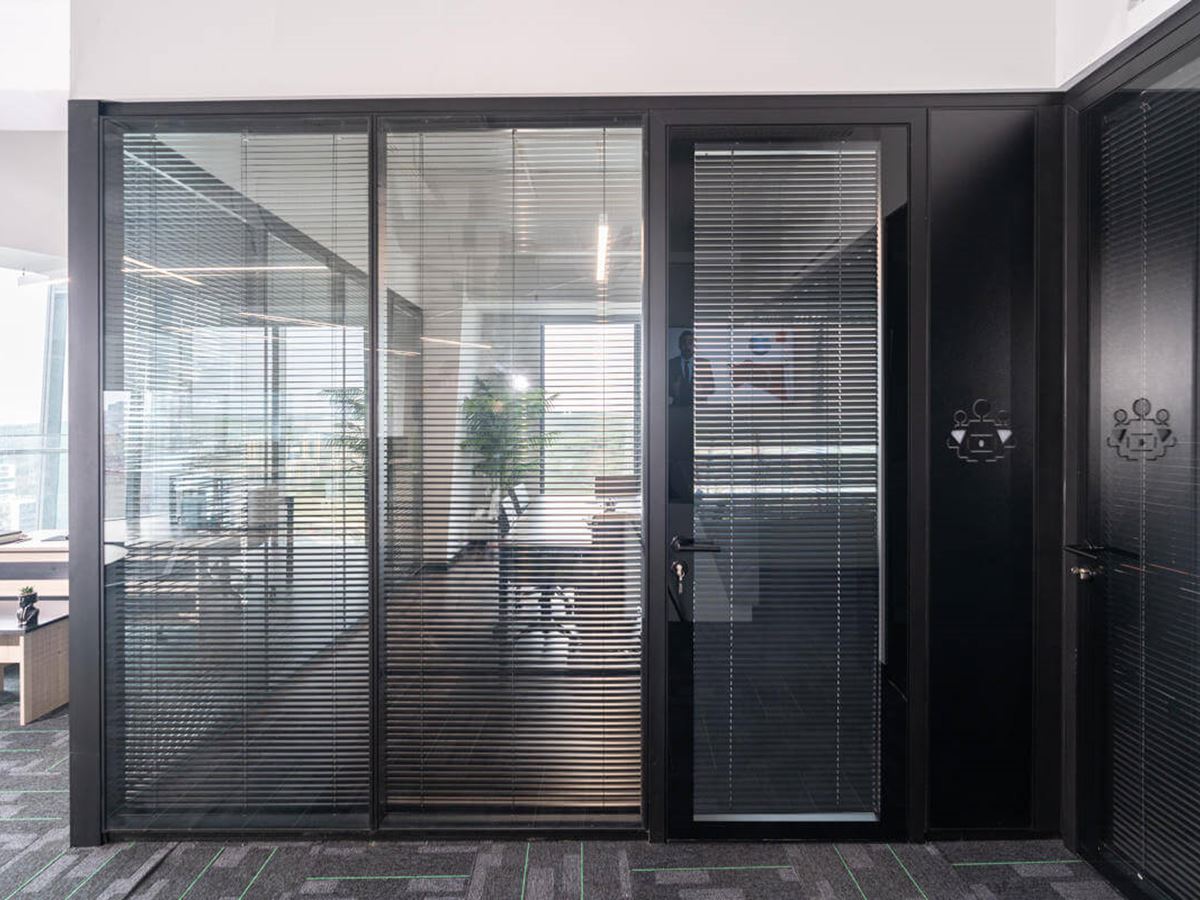

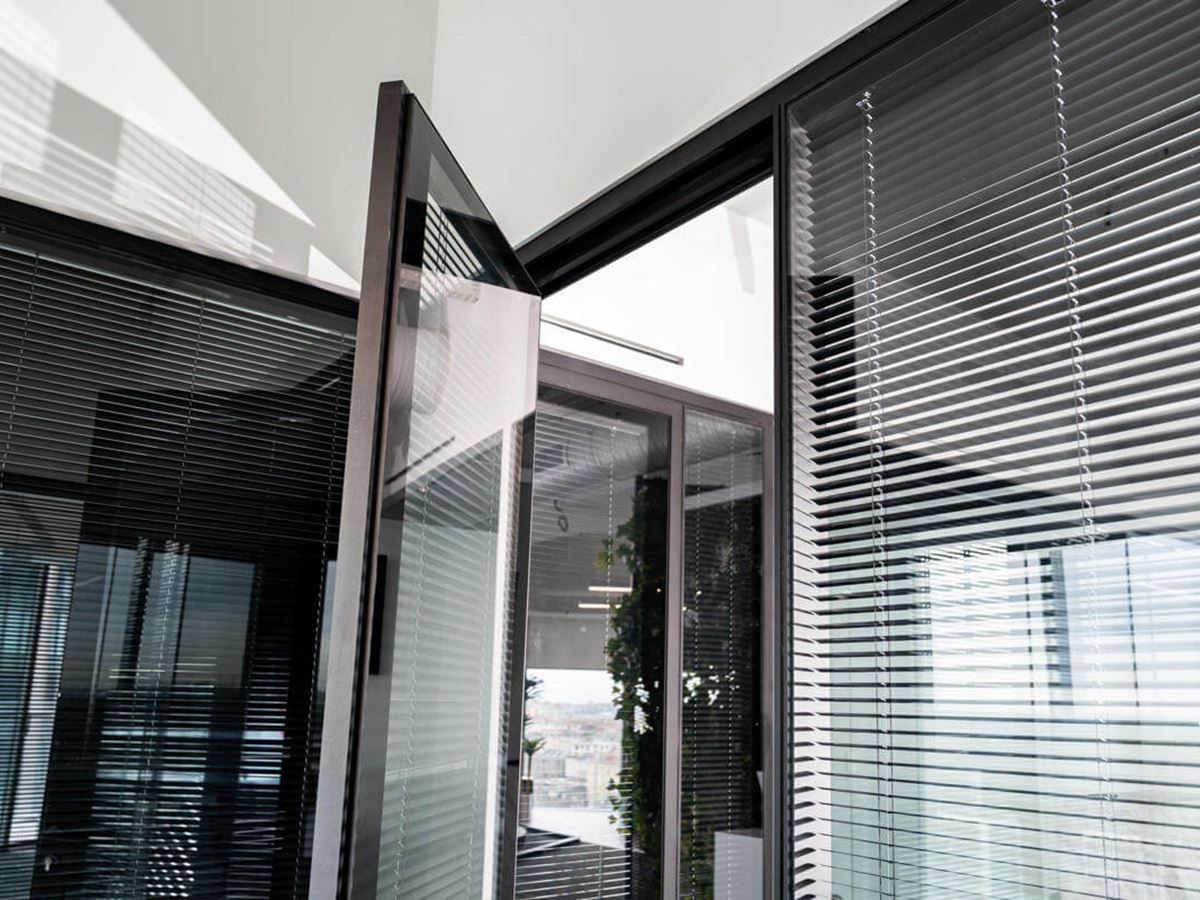

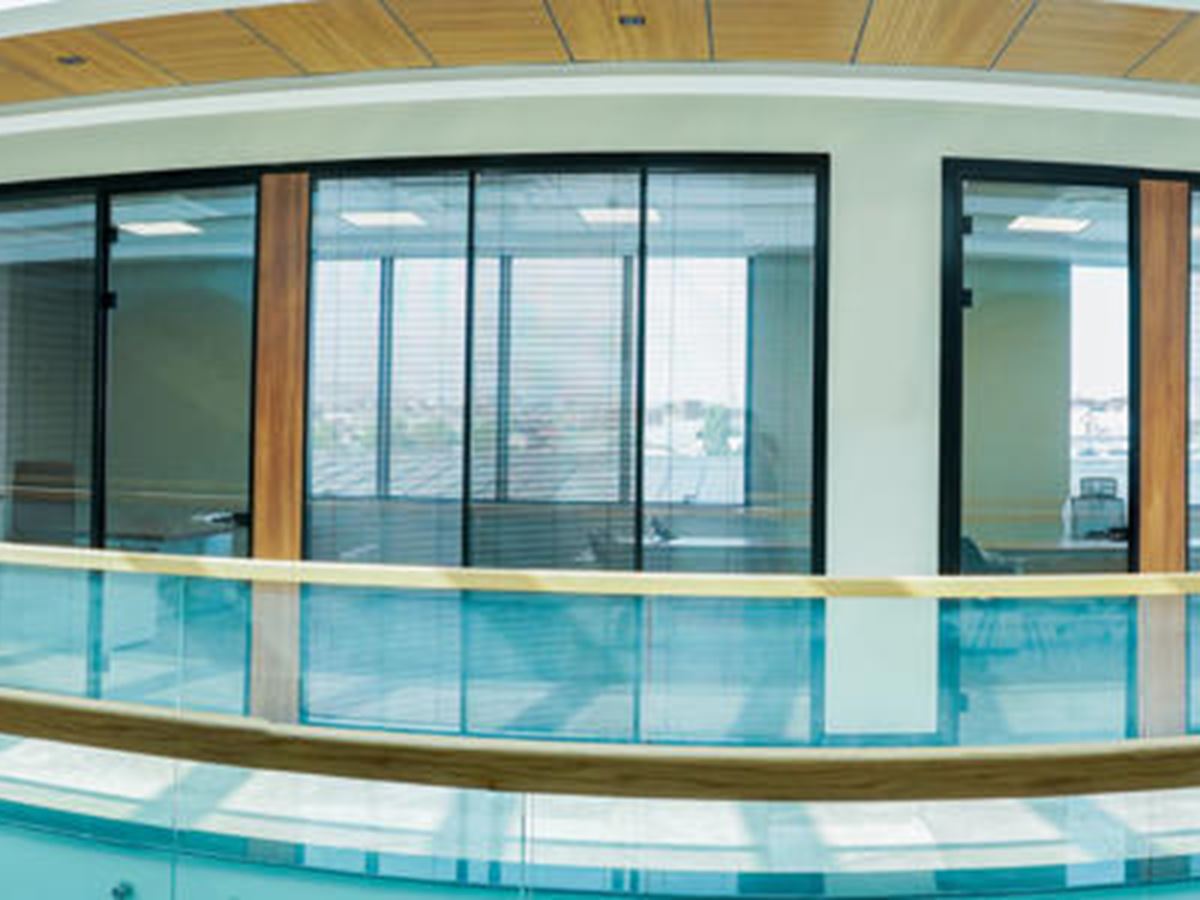

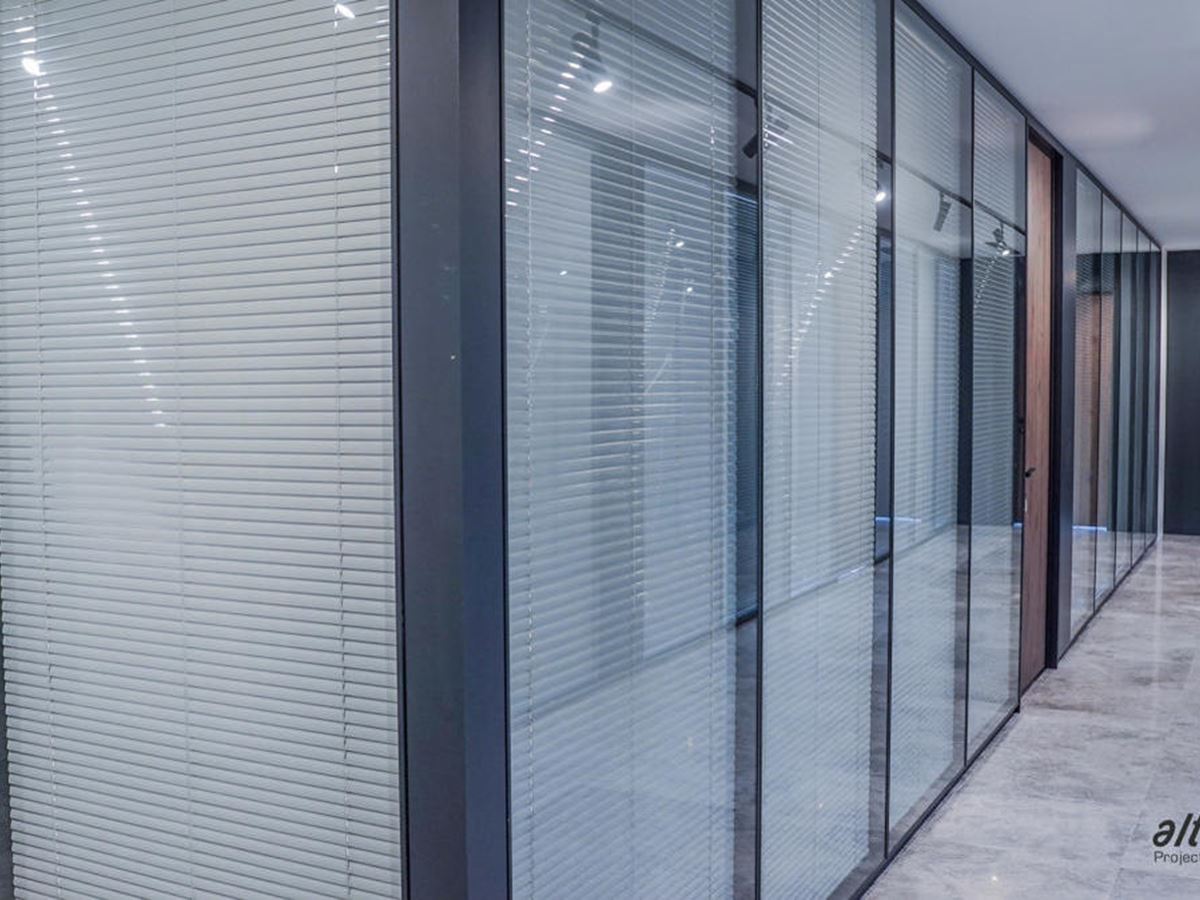

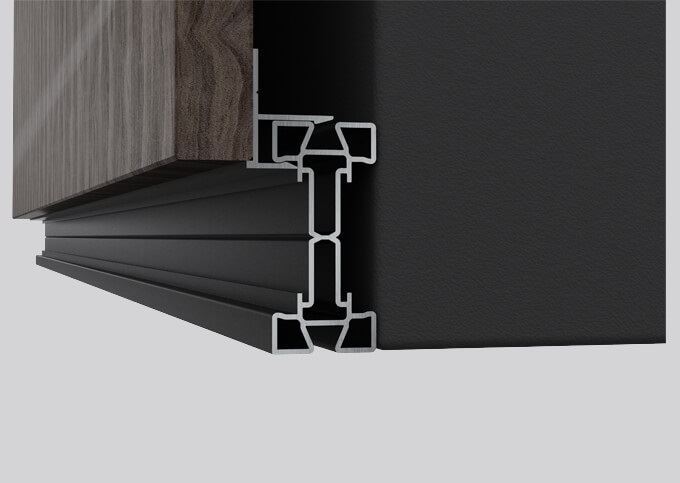

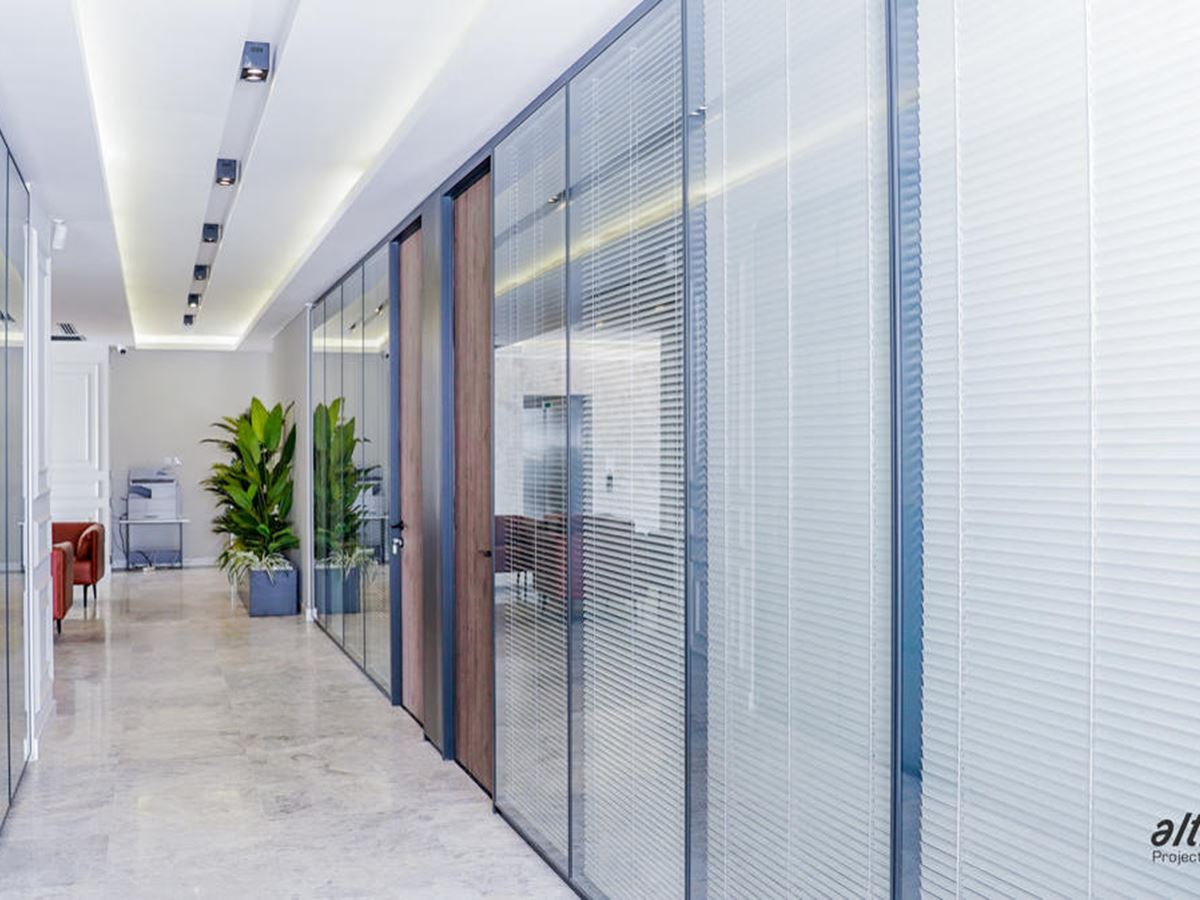

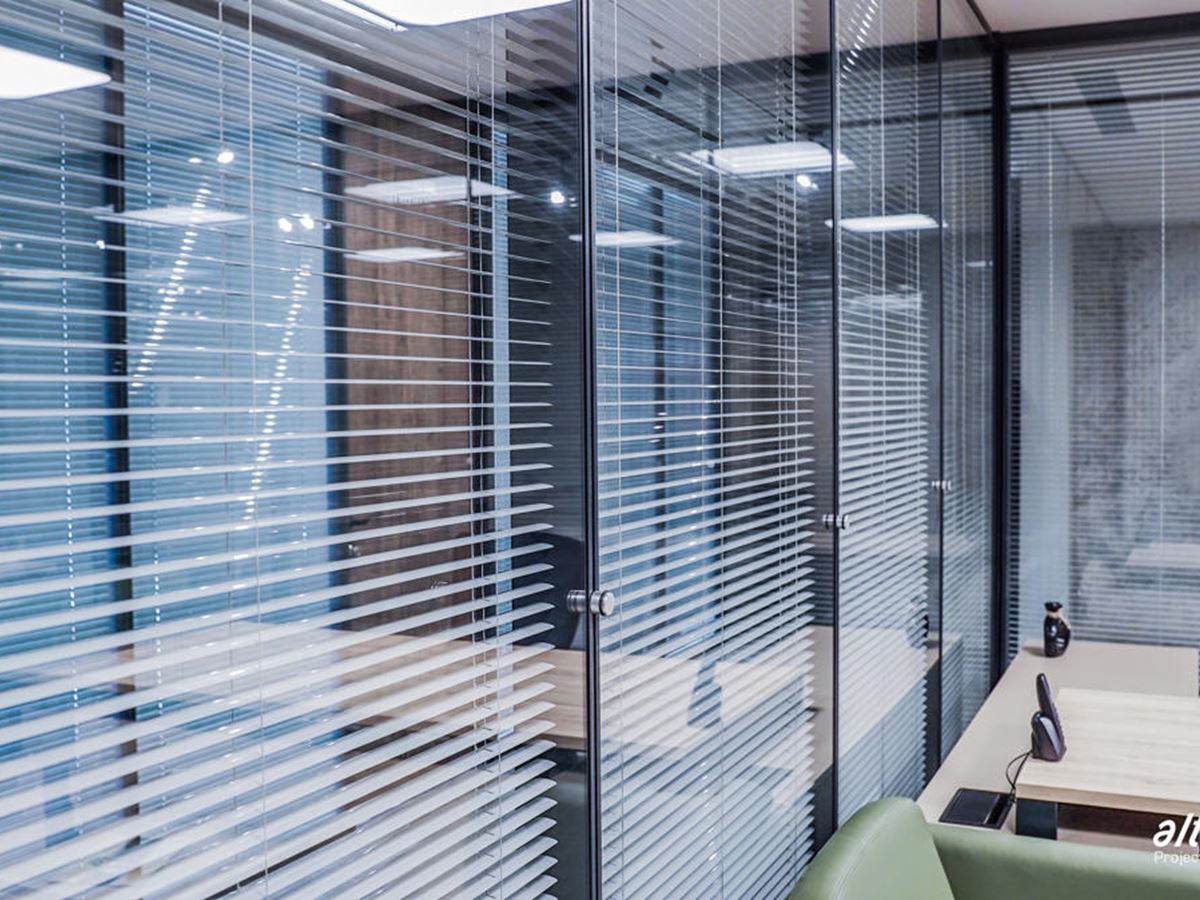

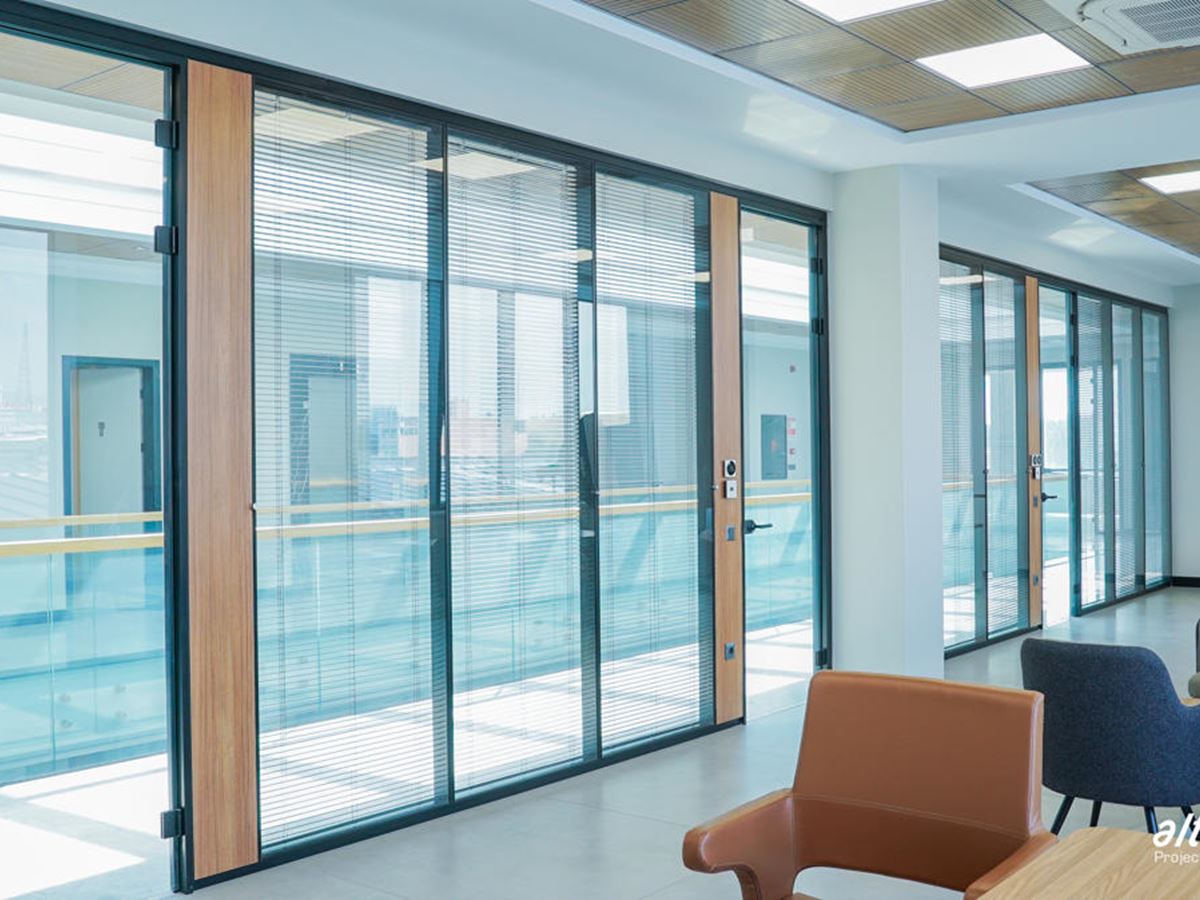

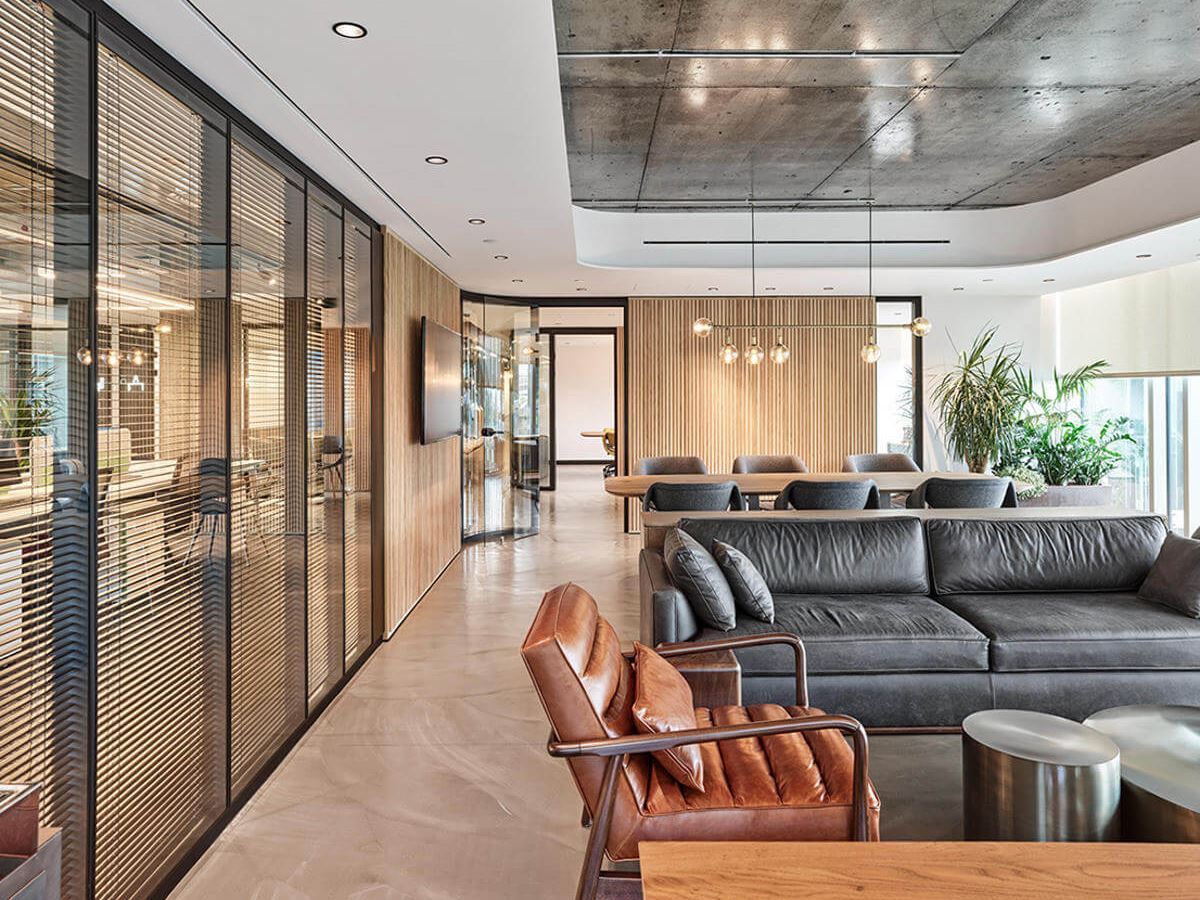

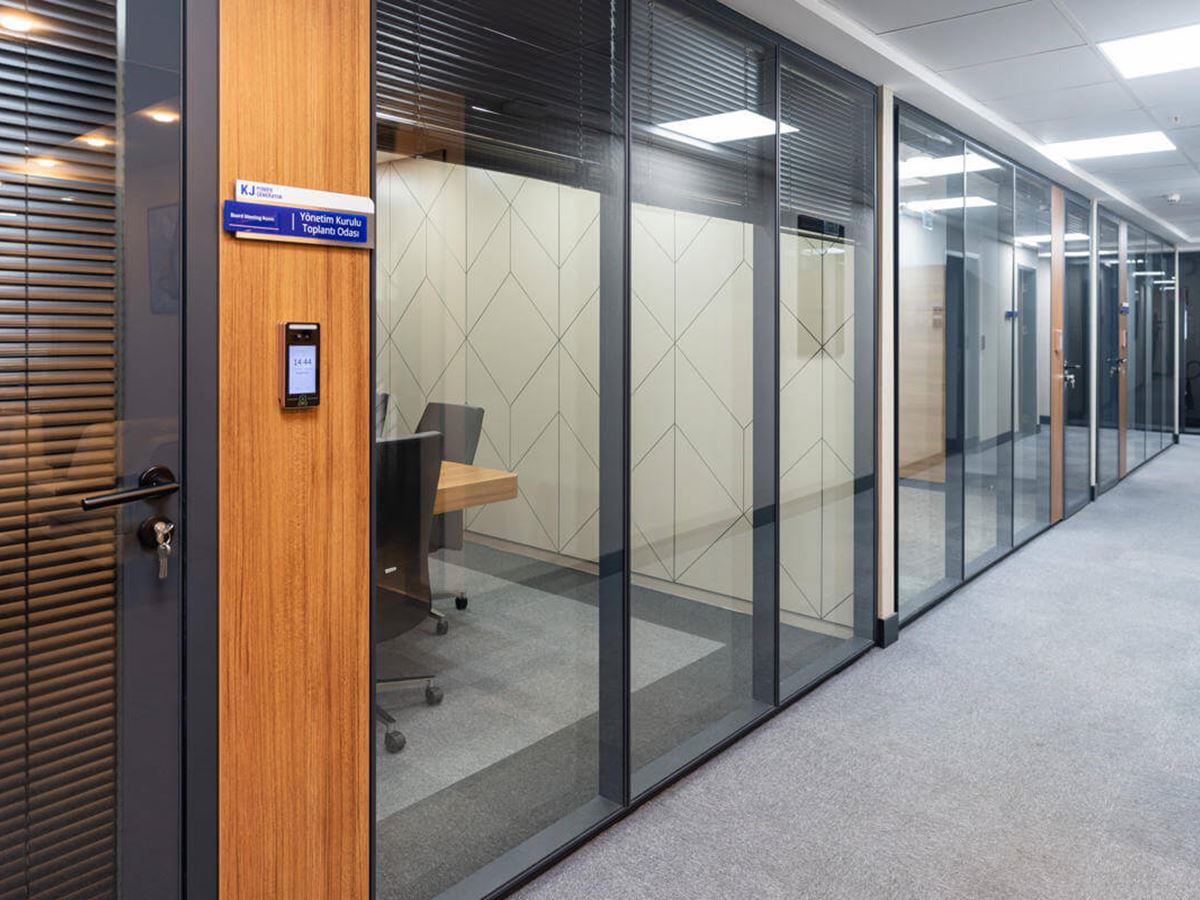

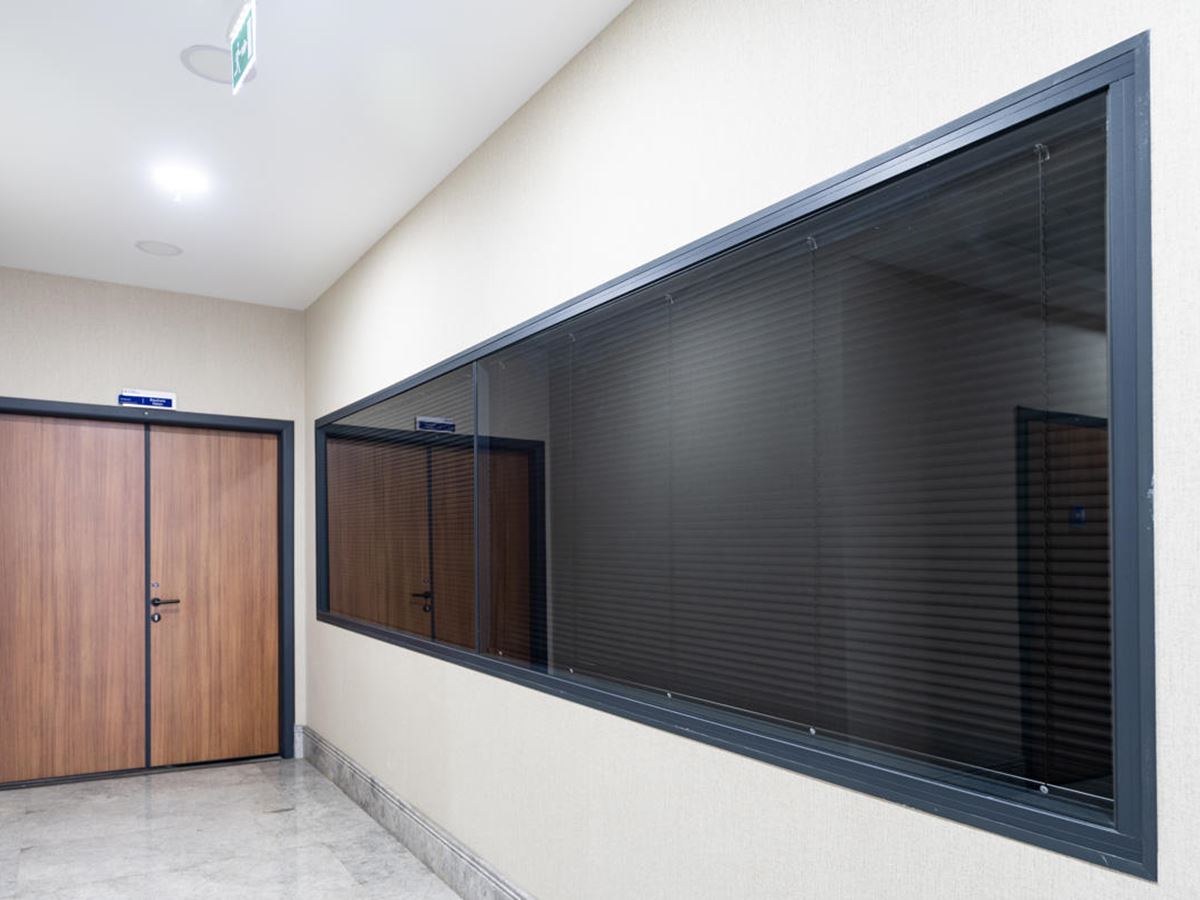

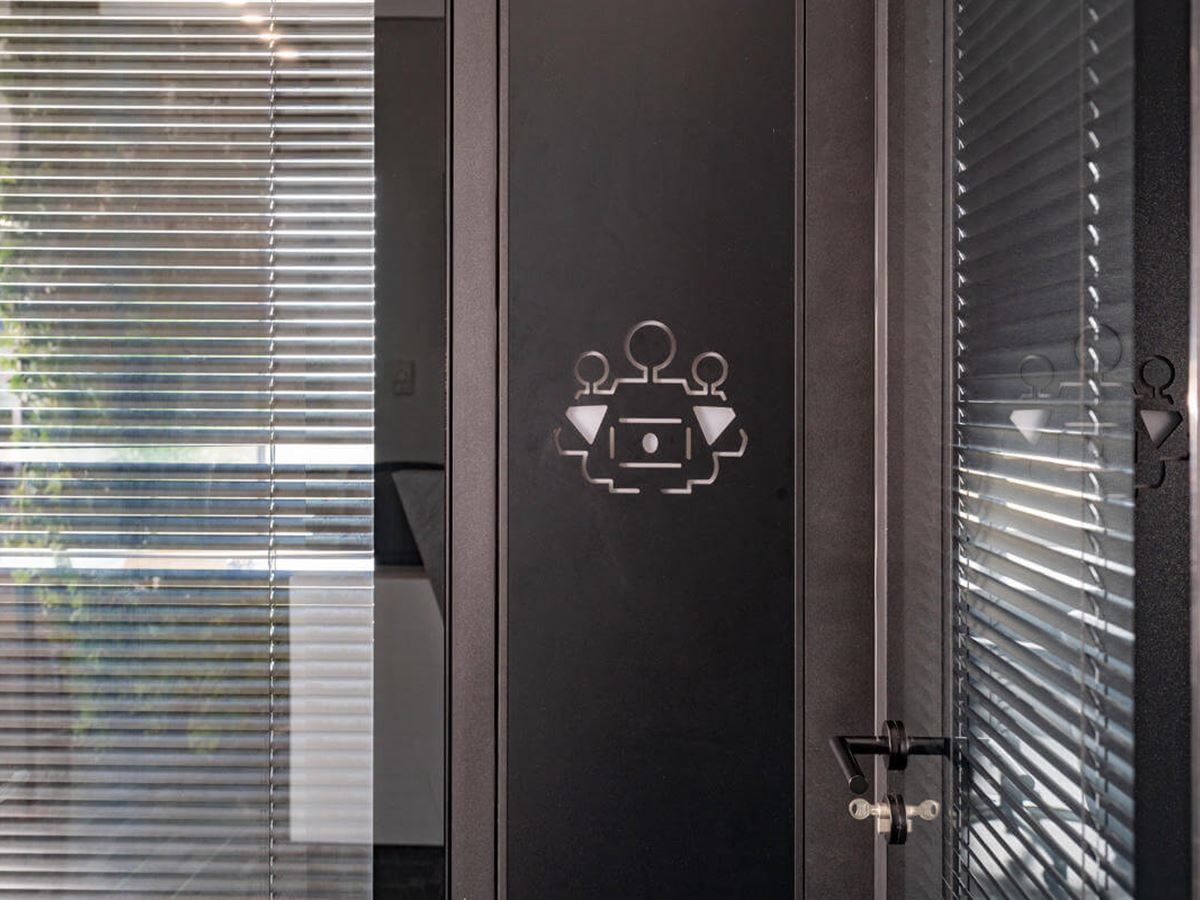

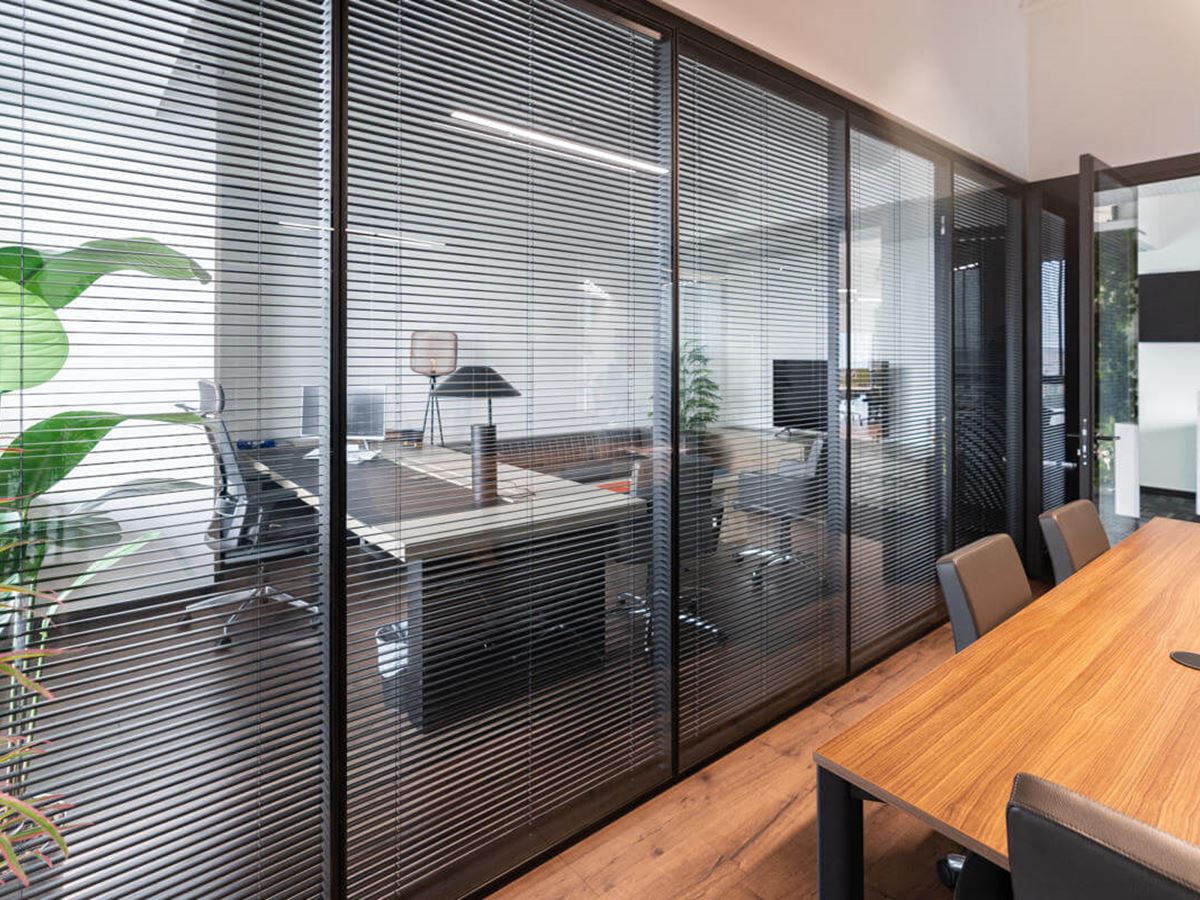

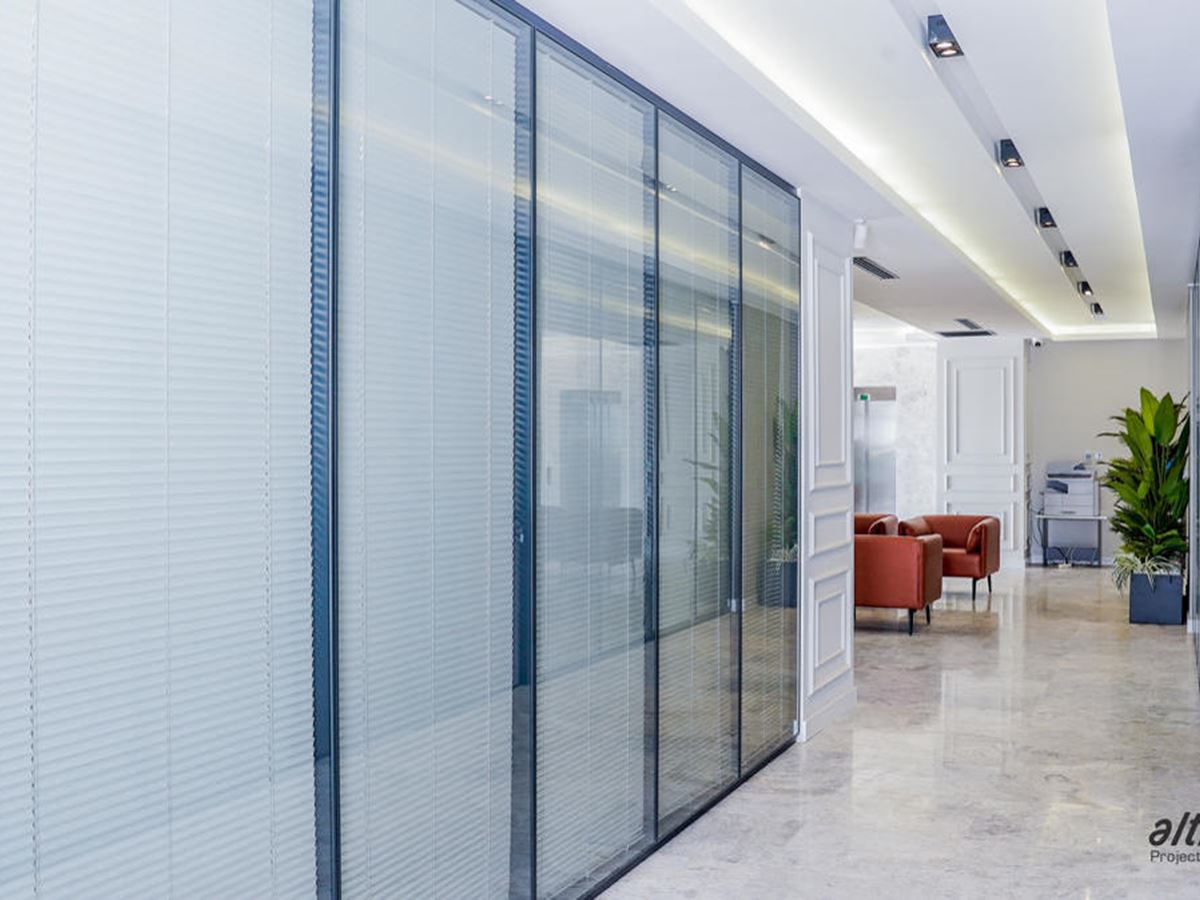

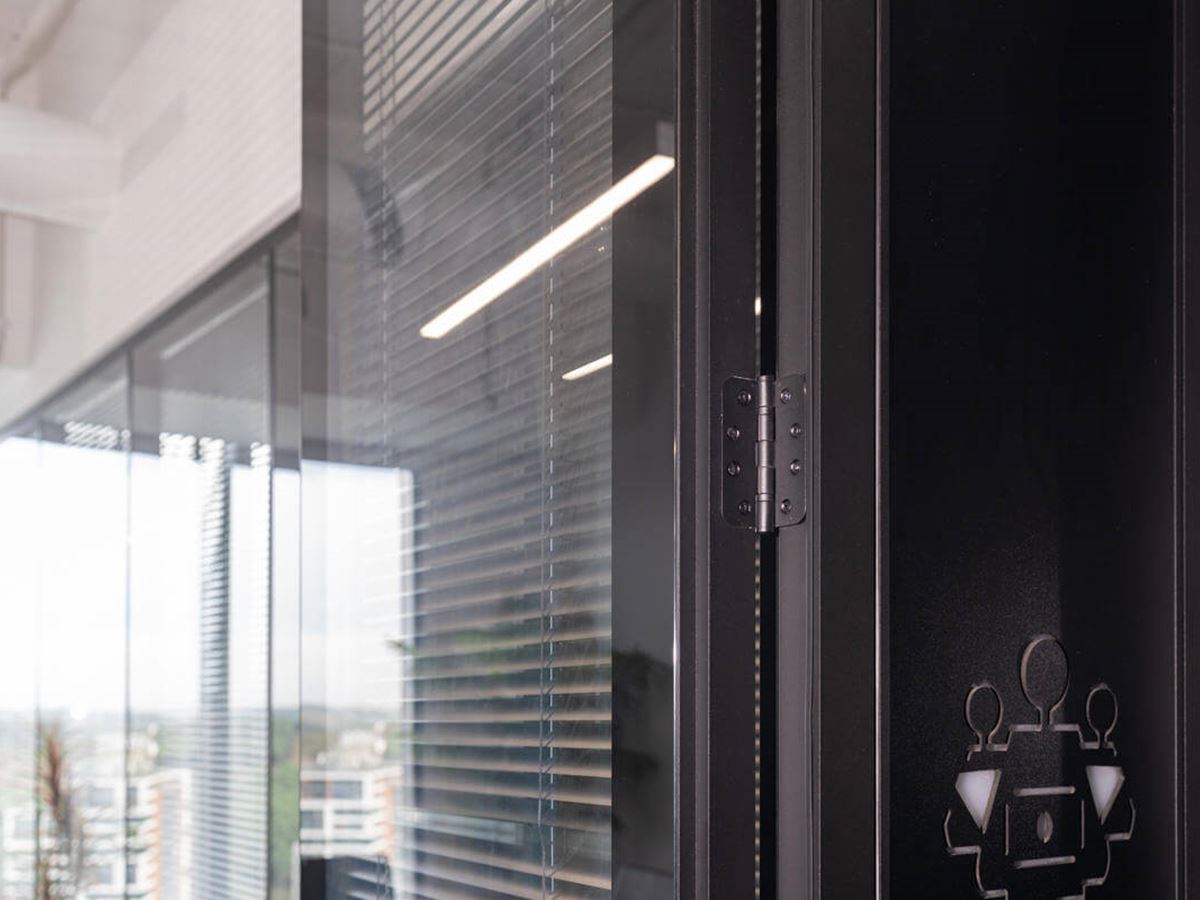

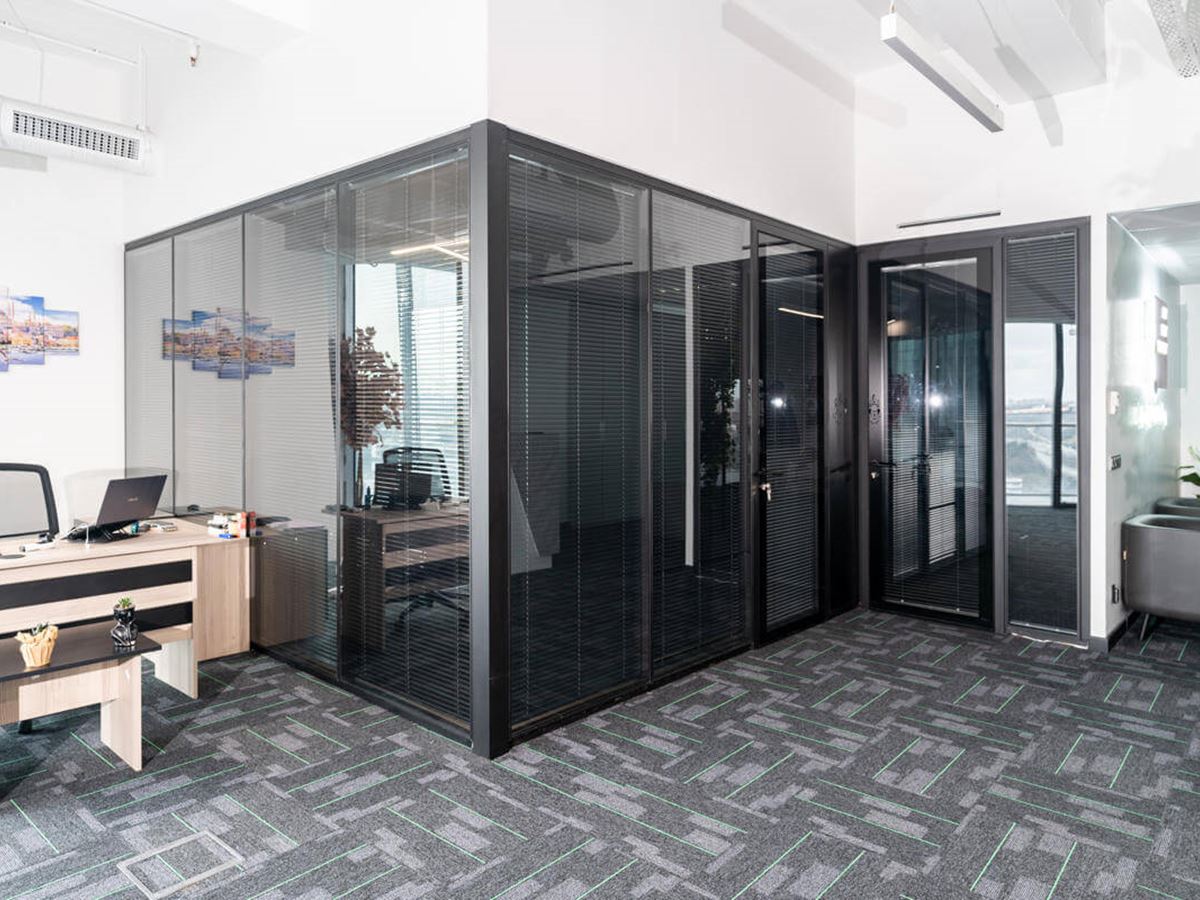

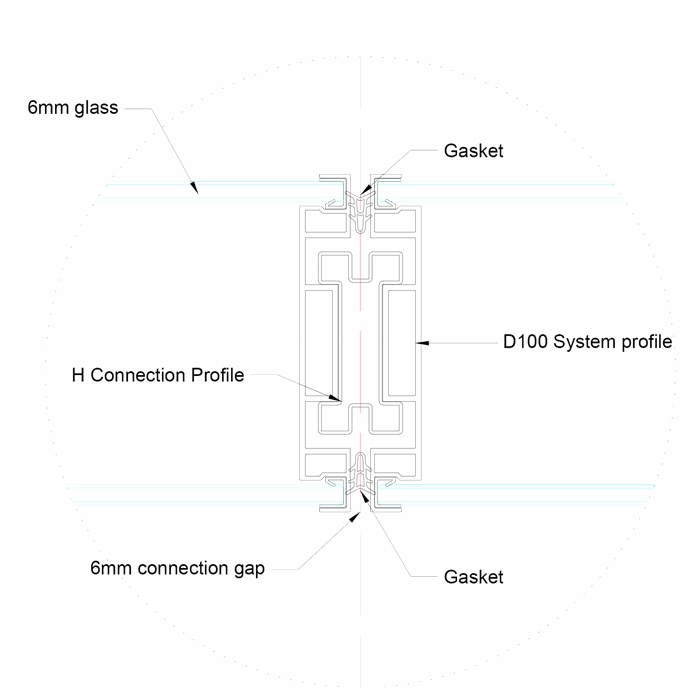

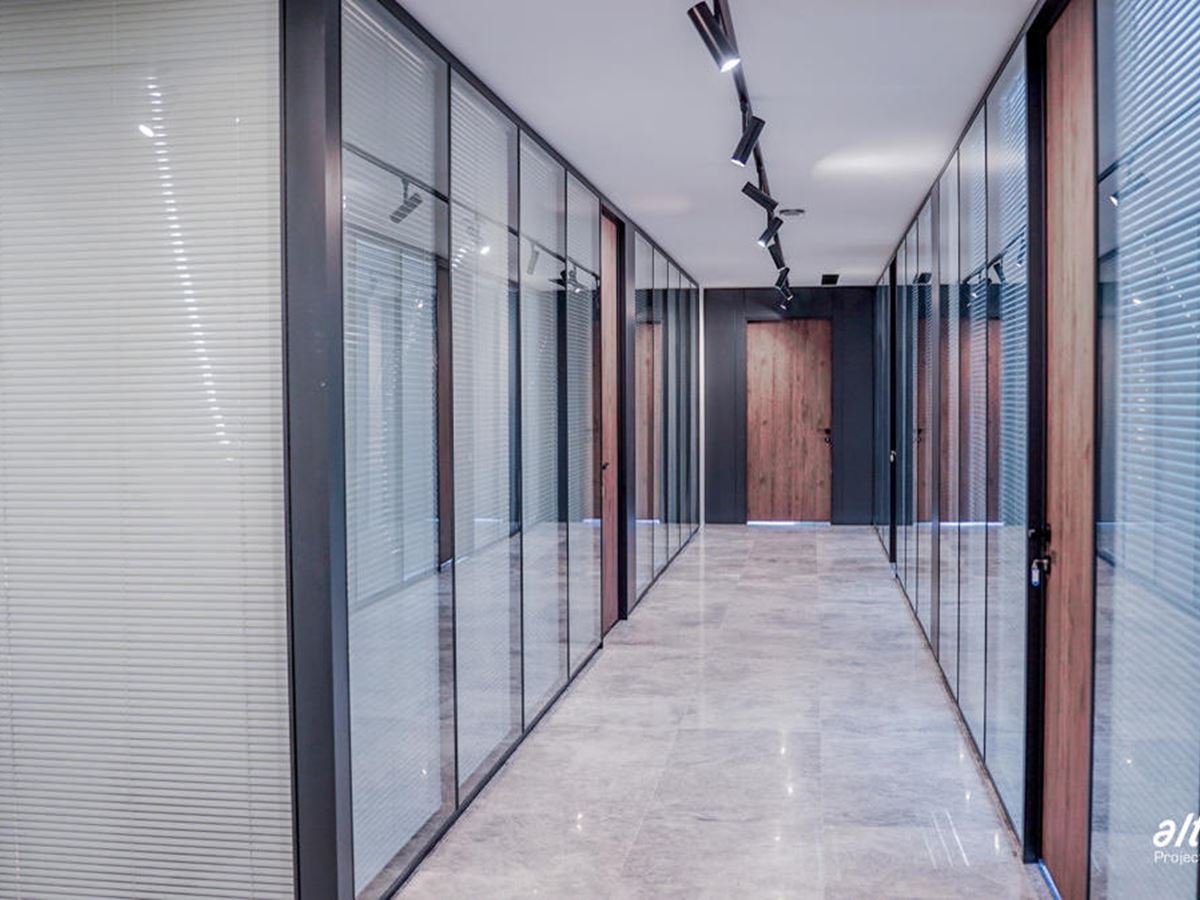

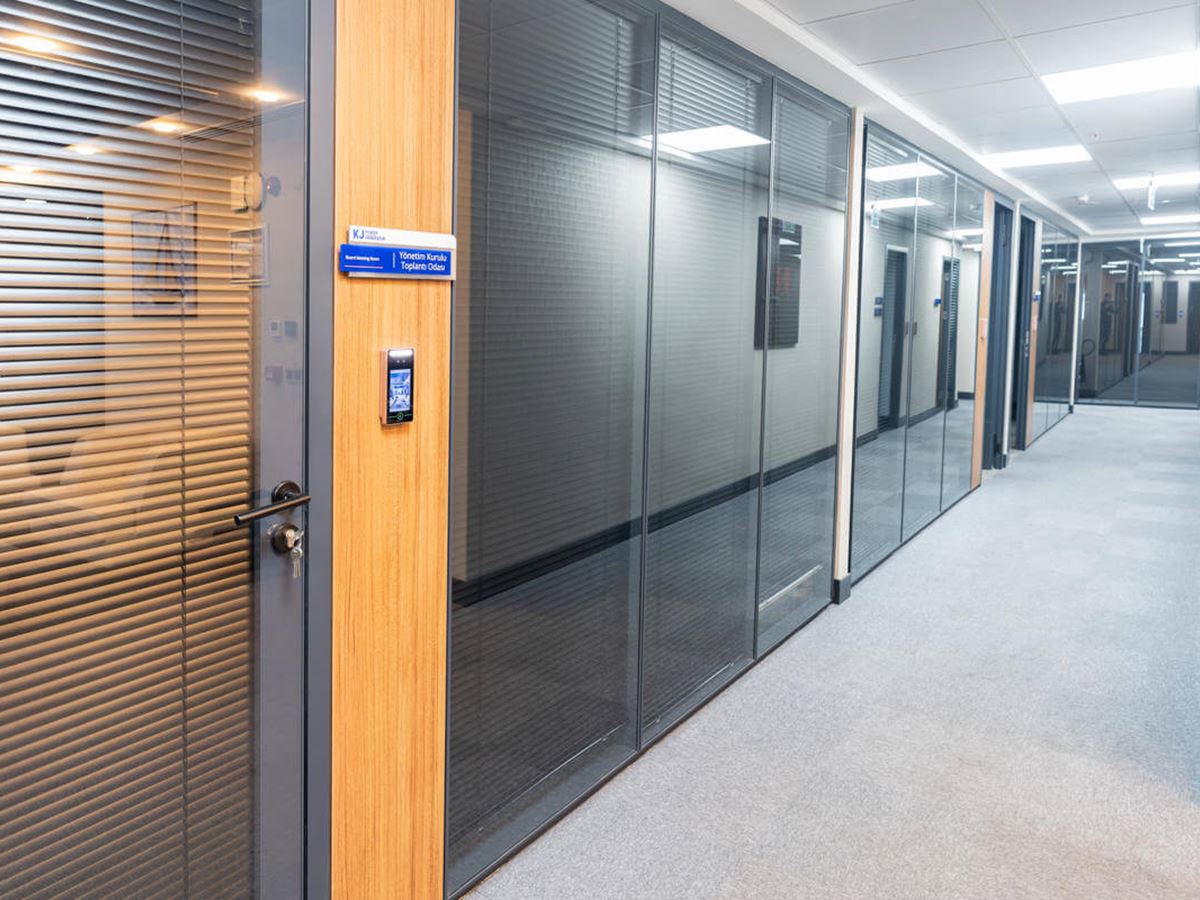

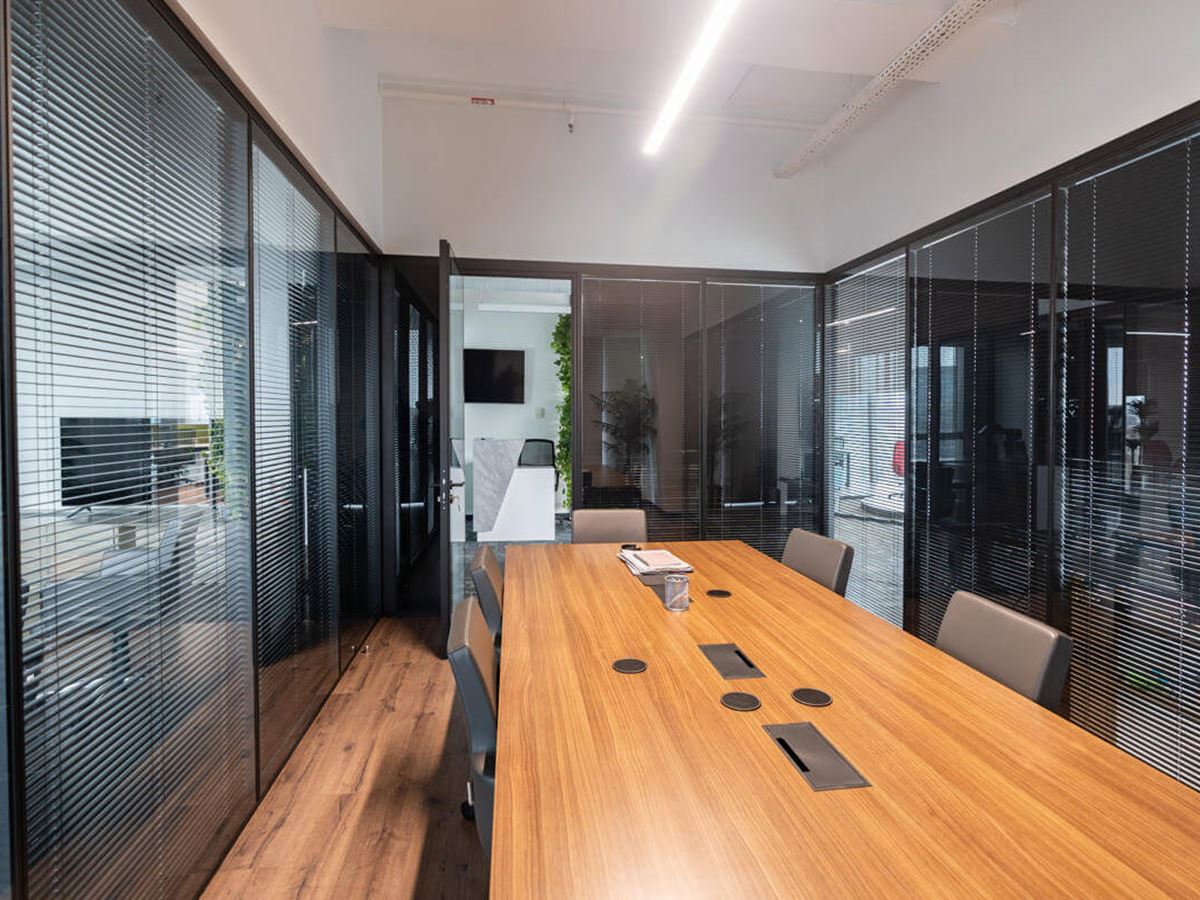

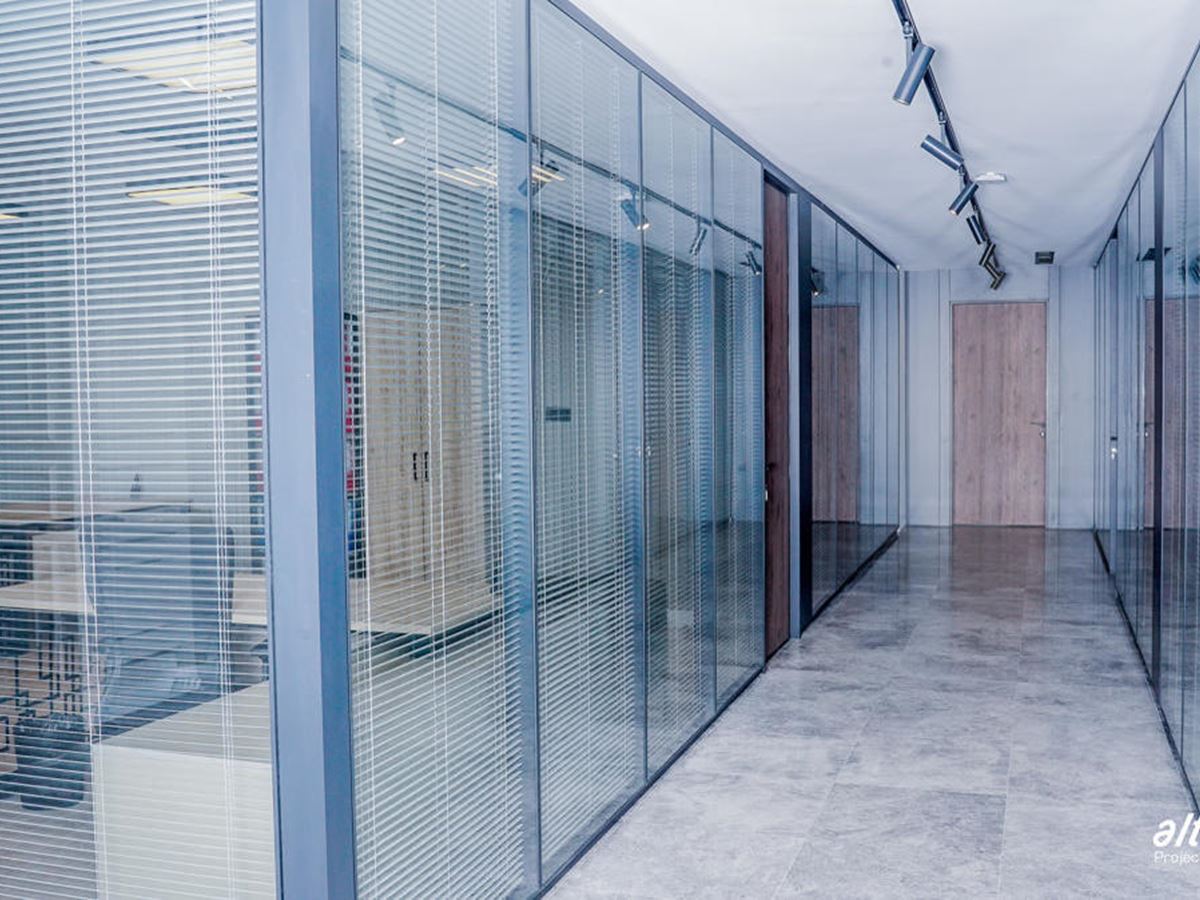

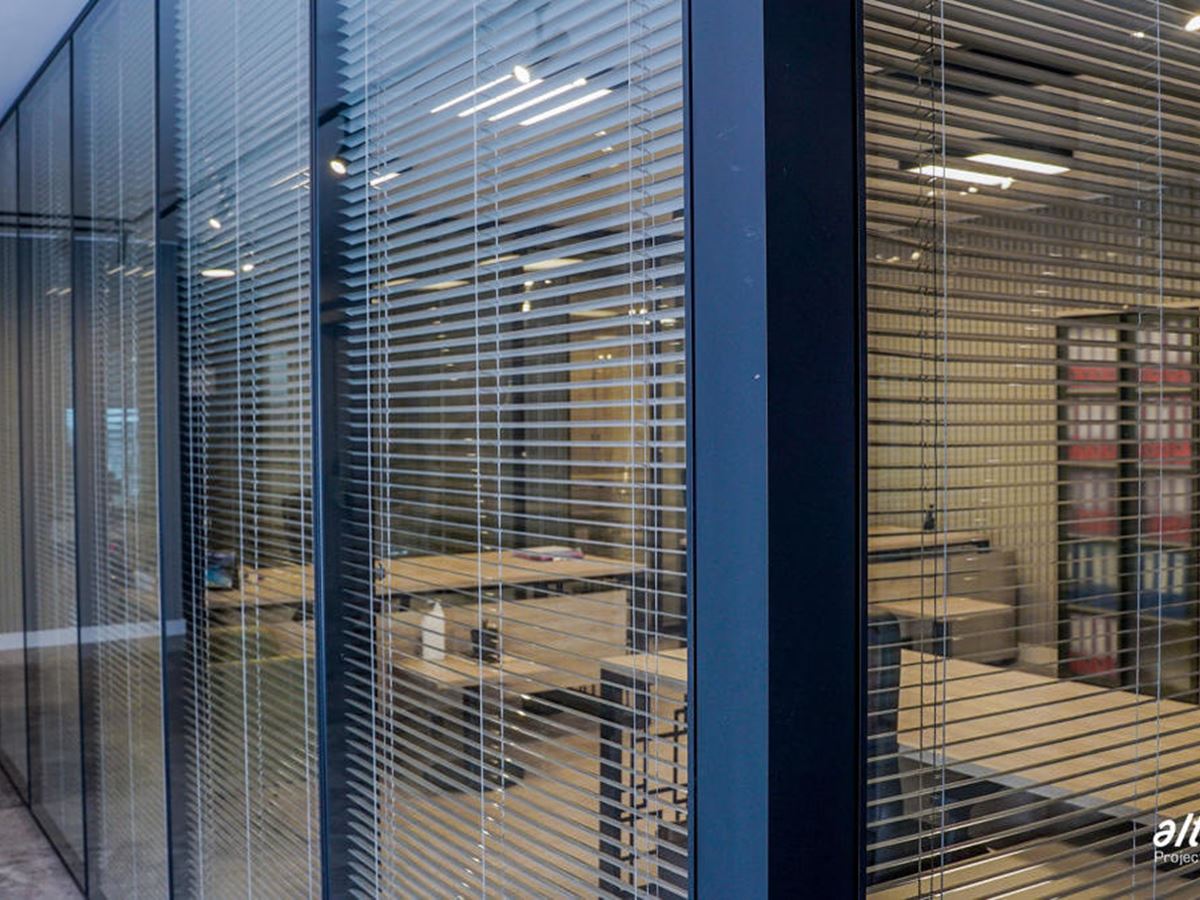

Manual or electrically controlled blinds can be placed inside the double-glazed frame. The Alnoplan D100offers a slim and stylish frame for offices. The clip-on steel strut joints used in glass-to-glass profilejoints and glass door joints form a rigid frame and provide high sound insulation.

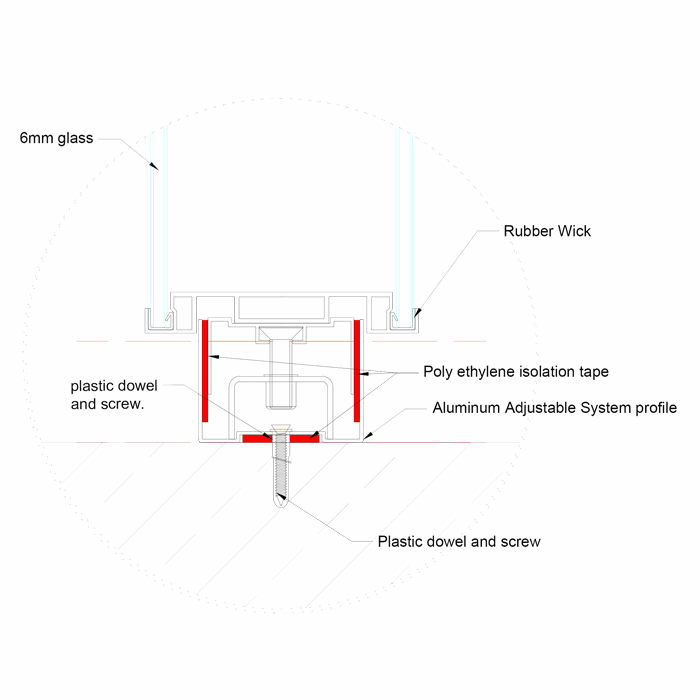

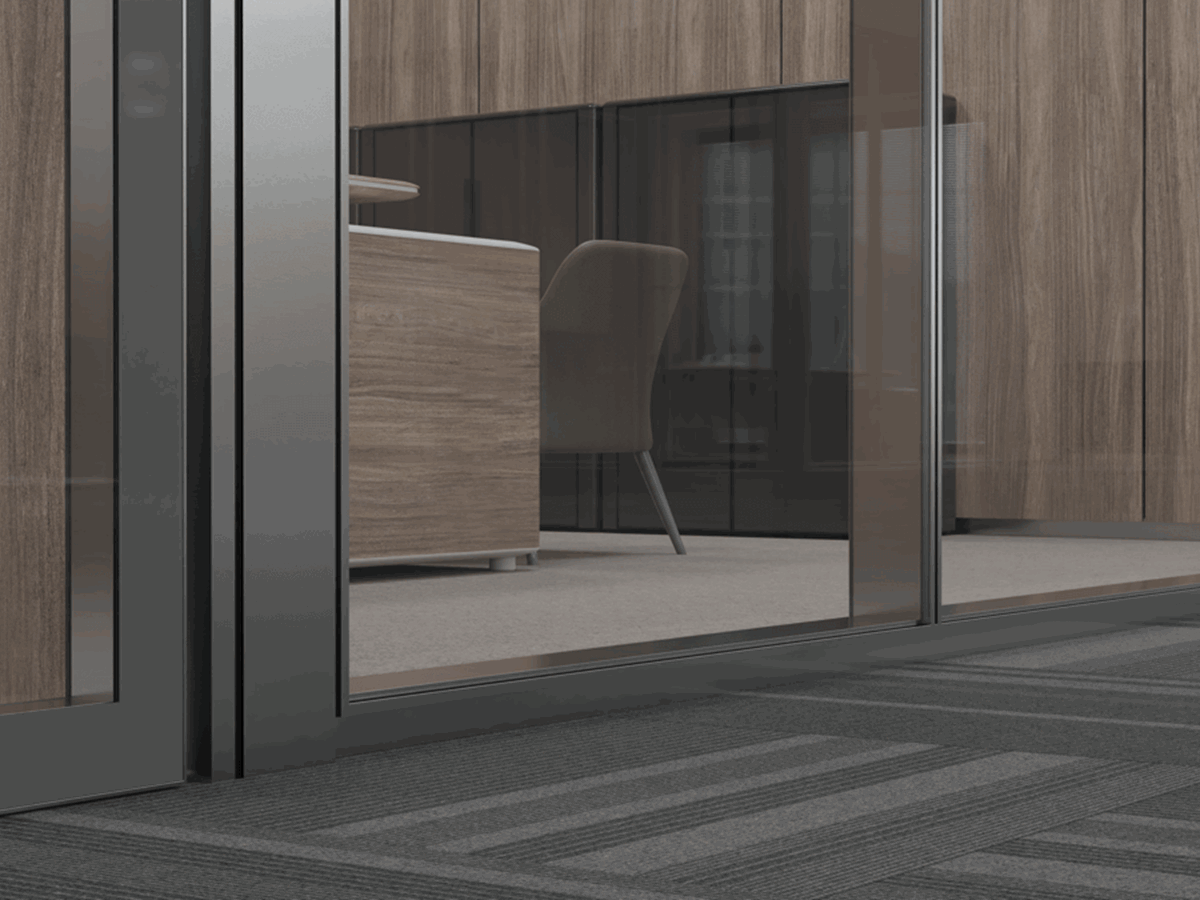

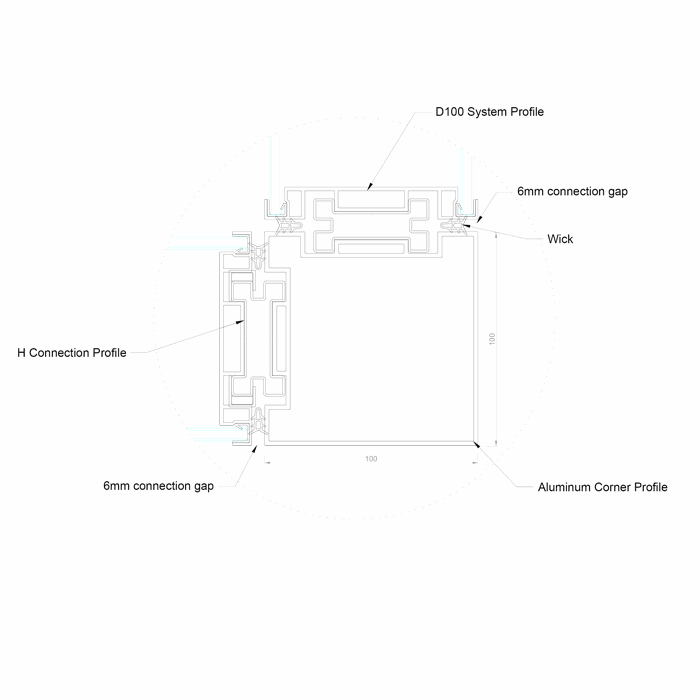

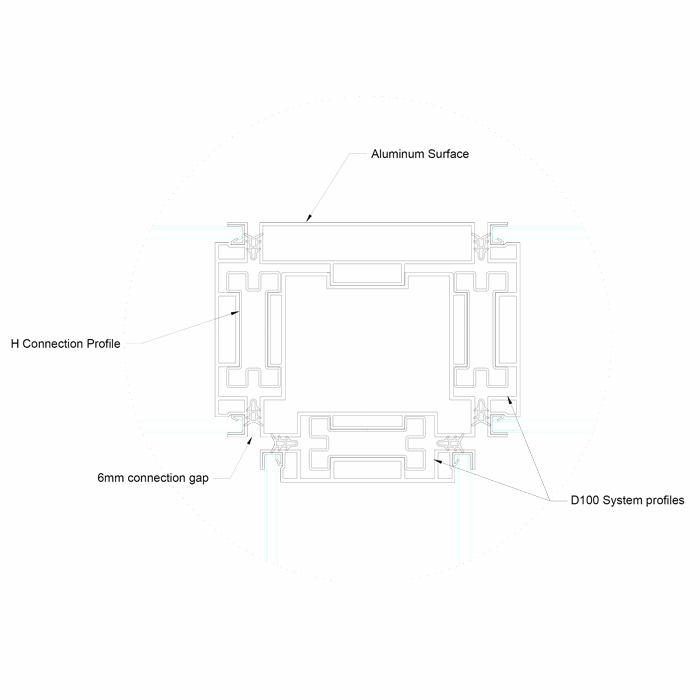

There is a perfect 6 mm joint between the units and the glass profiles are clipped along the entire edge.In this way, a perfect joint system is formed in the whole structure.

System Features

SYSTEM THICKNESS
100mm

SYSTEM WEIGHT
65kg/m2

GROUT DETAIL
6mm

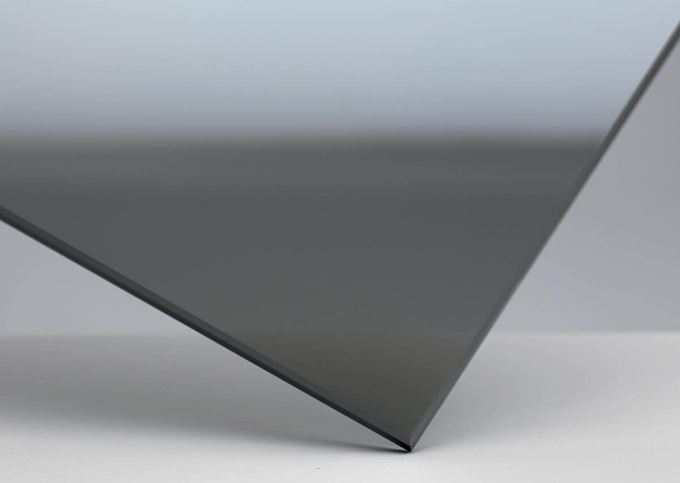

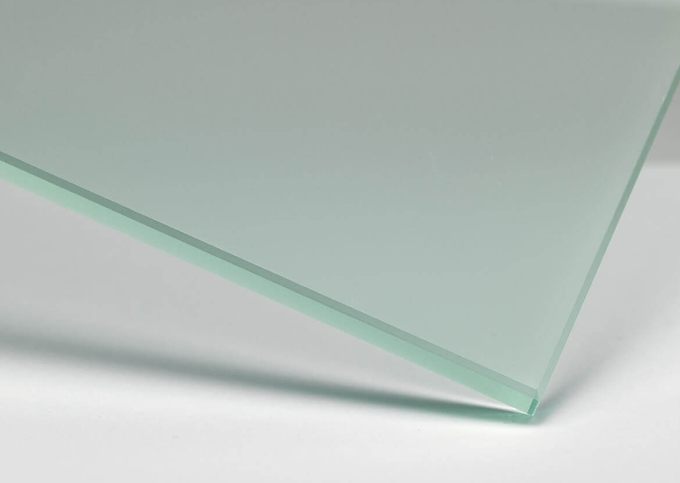

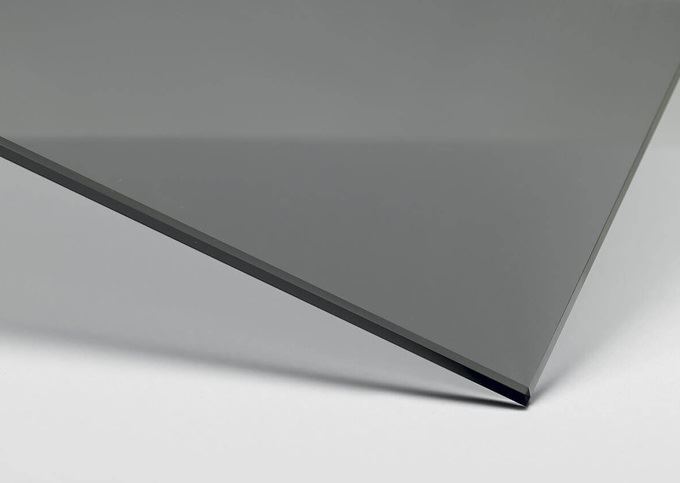

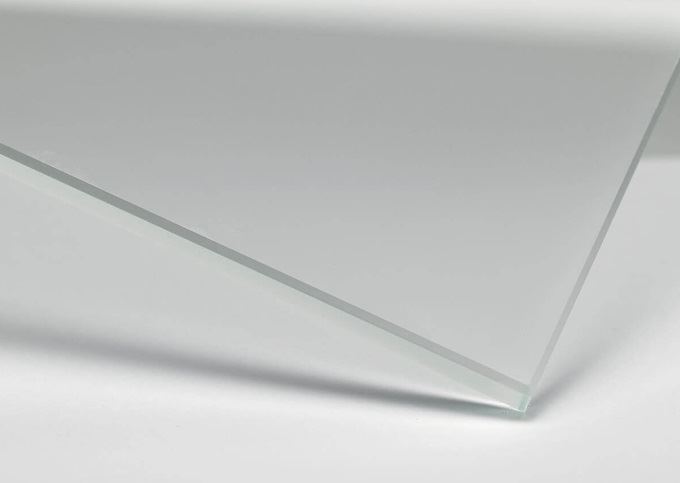

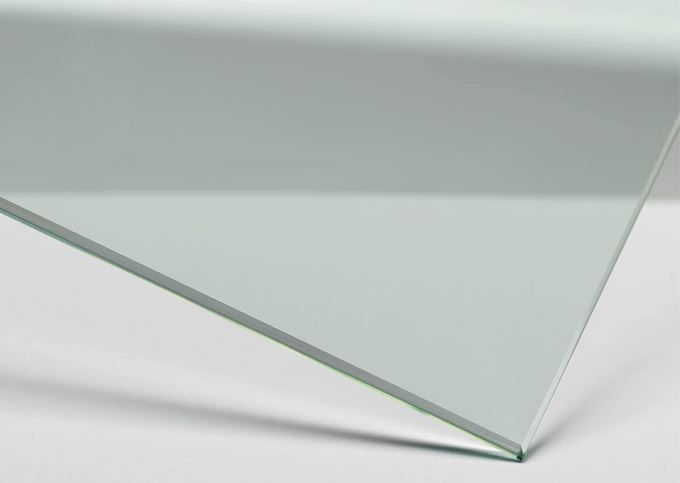

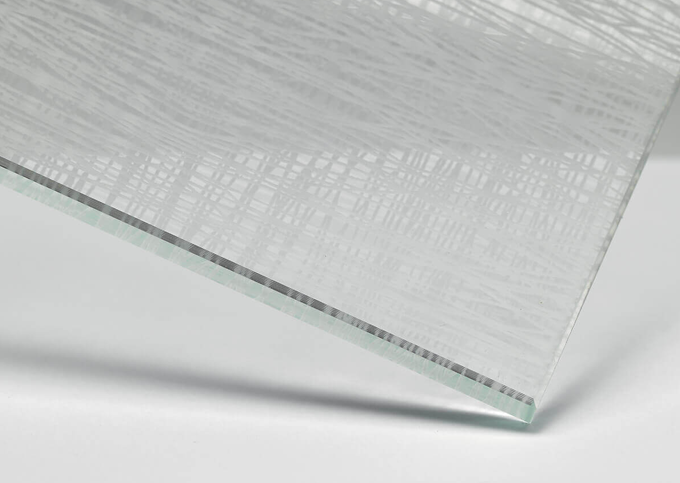

GLASS SURFACE THICKNESS
6mm

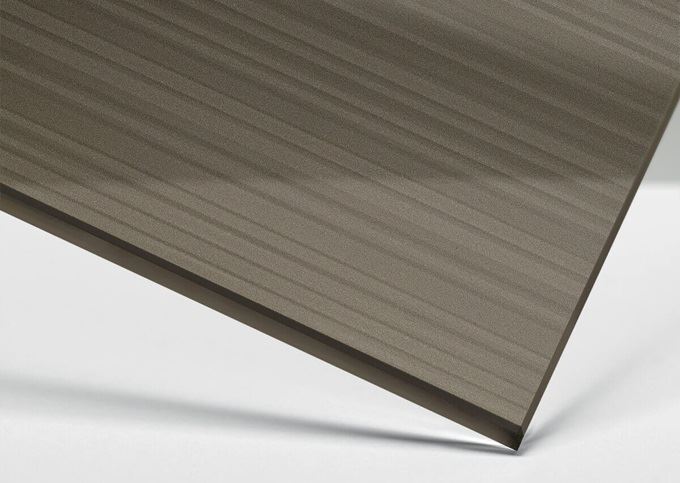

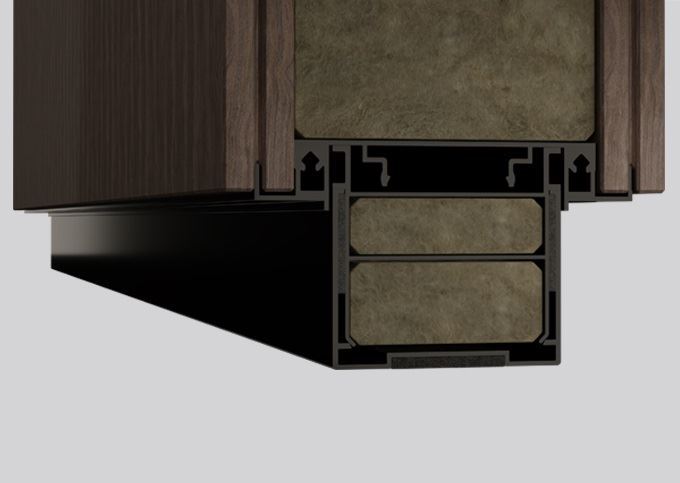

FULL PANELOPTION

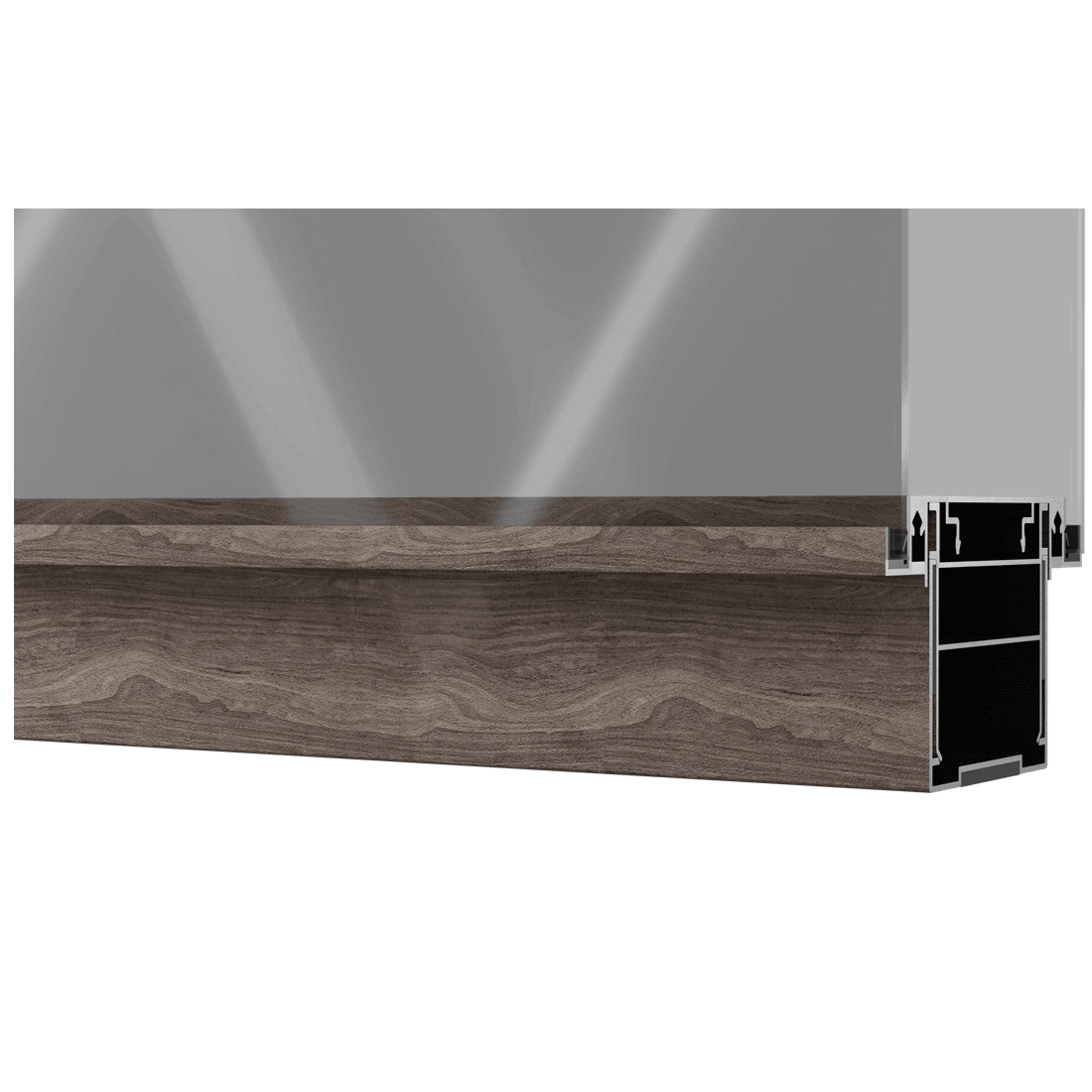

HPL-MDF-CDF-NATURAL WOOD-FABRIC-LACQUERED-PAINTED GLASS

INSULATION
42 dB

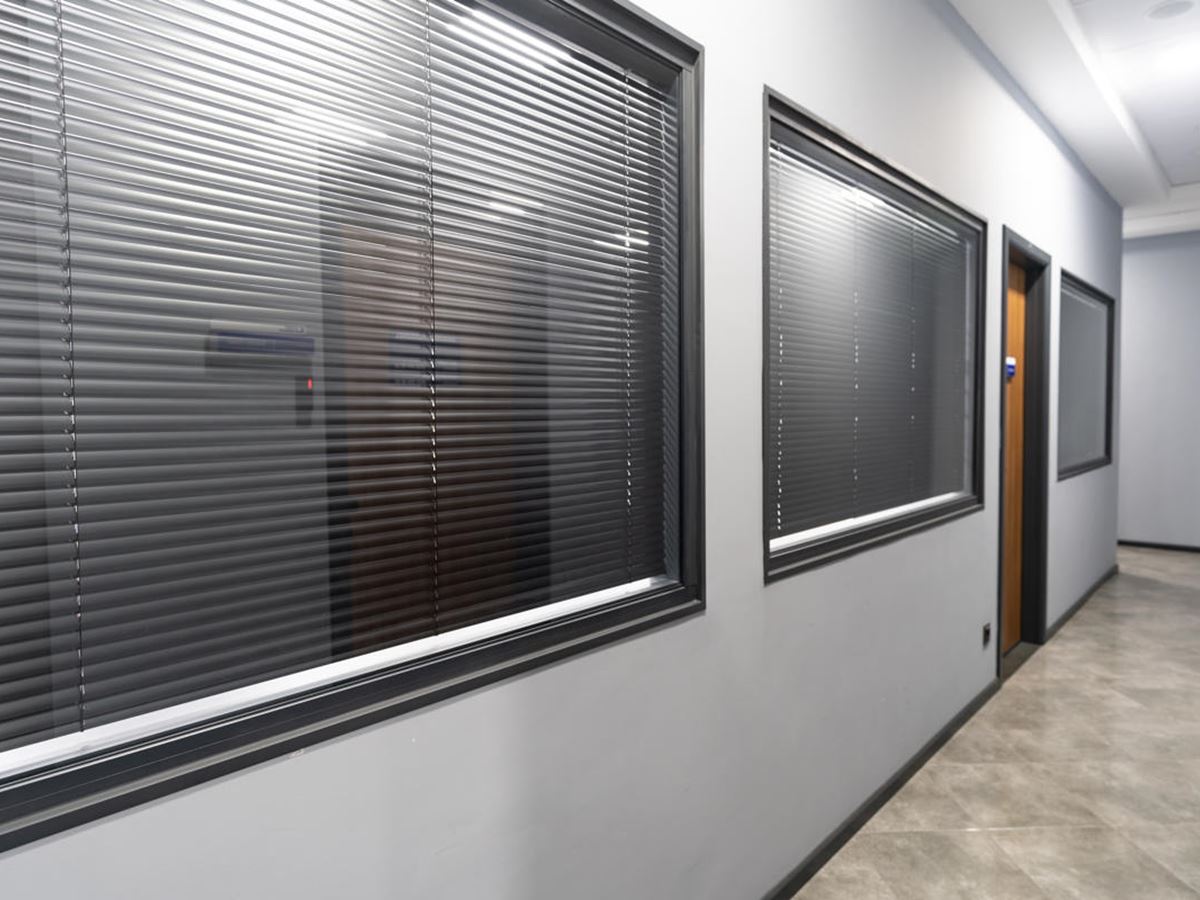

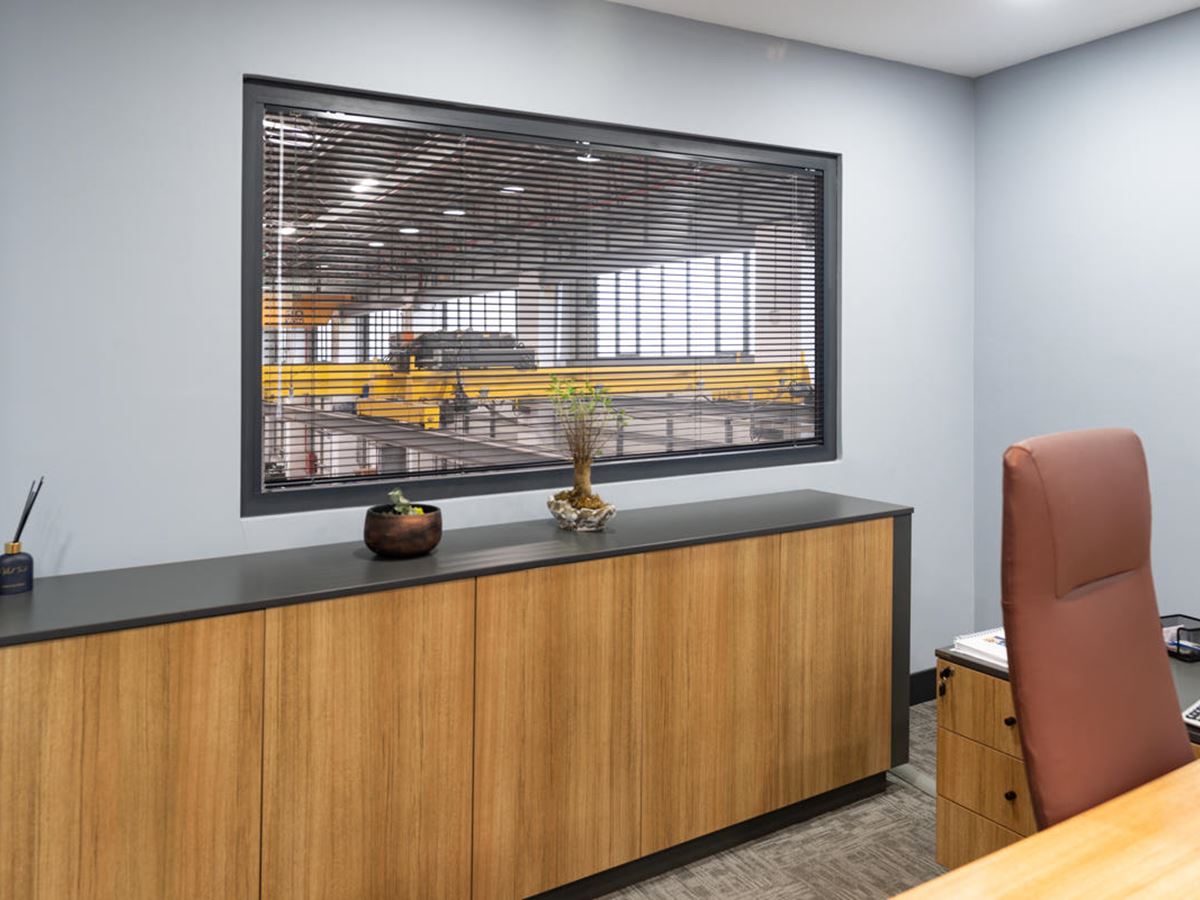

BLINDS
MANUAL/AUTOMATIC

UNIT DIMENSIONS
700-1200 MMWIDTH, 2200-3500 MM HEIGHT

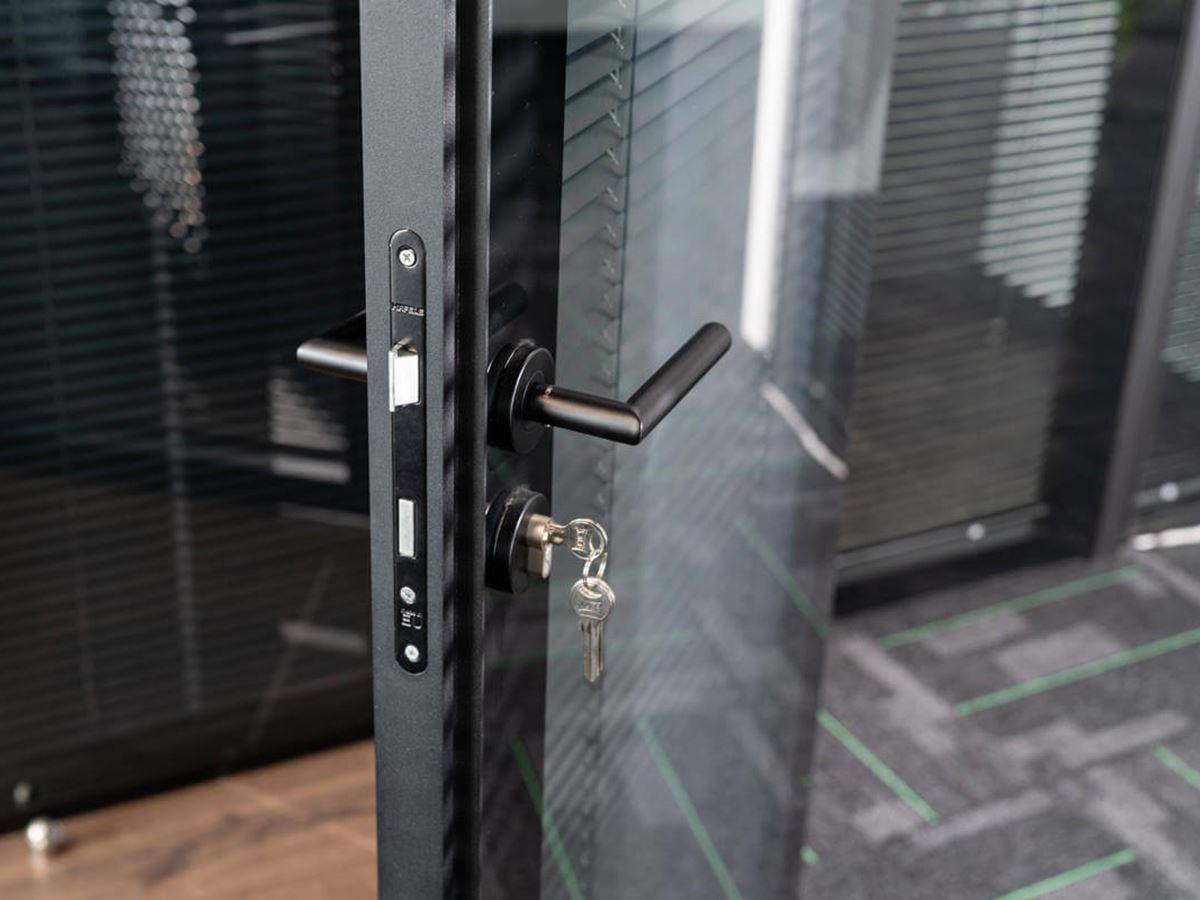

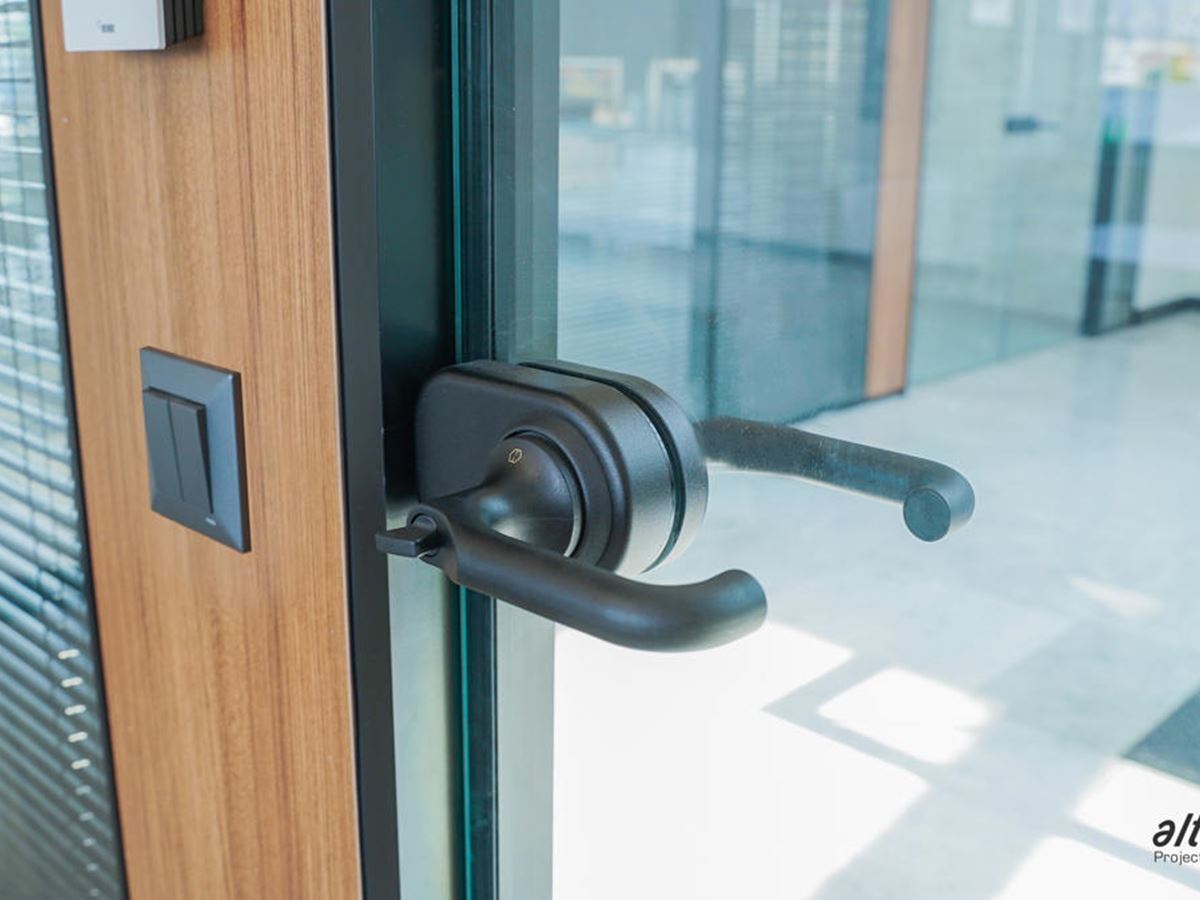

DOOR ACCESSORIES
HAFELE,DORMA, ASSA ABLOY, COLCOM,HOPPE, AGB

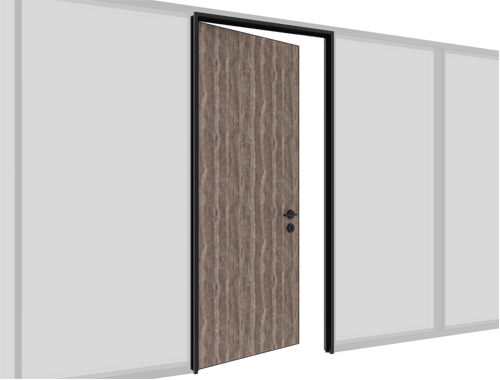

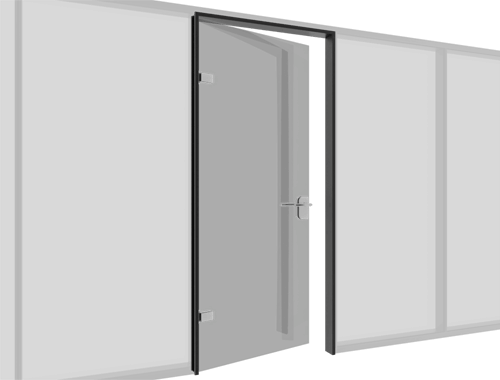

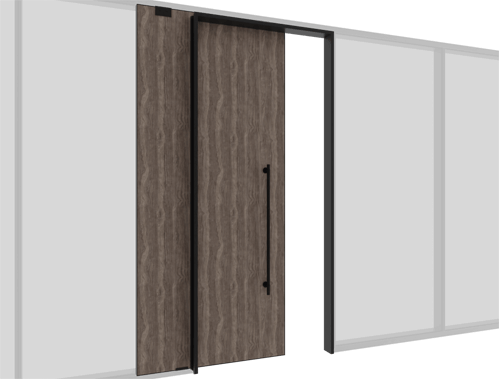

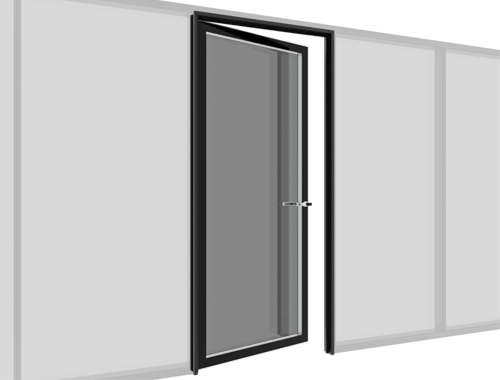

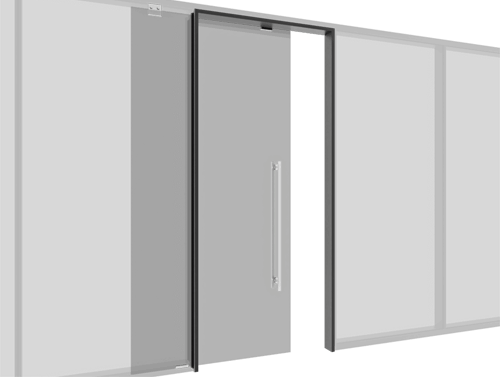

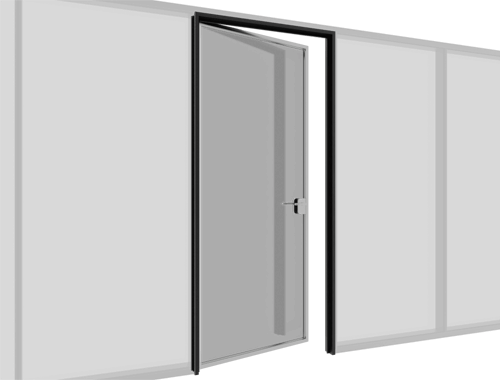

DOOR TYPE
SINGLE OPENING,DOUBLE OPENING, SLIDING WING

SYSTEM OPERATINGTEMPERATURE
-20+50

WING WIDTH
800 mm-1200mm

WING HEIGHT
2200-3500mm

DOOR OPENING DIRECTIONS
Internal opening, external opening, double opening
